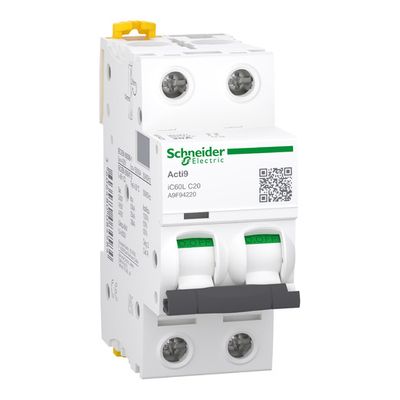

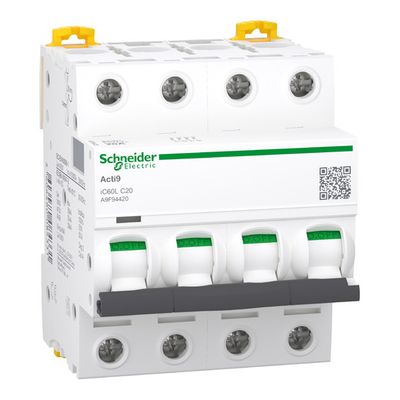

The iC60L MCB (Miniature Circuit Breaker) is a product within Schneider Electric's Acti 9 range, designed to provide protection against overloads and short circuits in electrical circuits. Here's an overview of its features and specifications:

iC60L MCB Overview:

1. Rated Breaking Capacity: The iC60L MCB is designed with a breaking capacity of 15 kA (kiloamperes), indicating its ability to safely interrupt currents of up to 15 kA under fault conditions. This ensures effective protection against short circuits, minimizing the risk of damage to equipment and electrical installations.
2. Miniature Design: As a miniature circuit breaker, the iC60L is compact in size and designed for installation in distribution boards, consumer units, and electrical enclosures. Its small footprint makes it suitable for applications where space is limited.
3. Rated Current: The iC60L MCB is available in various current ratings, typically ranging from a few amps up to 63 amps. This allows for customization based on the specific requirements of the electrical circuit being protected.
4. Trip Characteristics: The iC60L MCB is available with different trip characteristics to suit various applications. These trip characteristics include B curve (for general applications), C curve (for motor circuits and applications with moderate inrush currents), and D curve (for circuits with high inrush currents, such as transformer or fluorescent lighting circuits).
5. Operating Voltage: The iC60L MCB is designed to operate at standard AC voltages, typically ranging from 230VAC to 415VAC, depending on the configuration and application requirements.
6. Compliance: The iC60L MCB complies with relevant international standards and regulations for circuit protection devices, ensuring safety, reliability, and performance. It meets the requirements of standards such as IEC 60898 and IEC 60947, among others.
7. Application: The iC60L MCB is suitable for a wide range of applications in residential, commercial, and industrial environments. It provides essential protection against overloads and short circuits in electrical circuits powering lighting, power sockets, equipment, and machinery.
8. Installation: The iC60L MCB is designed for easy installation on DIN rails in electrical distribution panels and enclosures. Its modular design allows for quick and straightforward installation and maintenance.

Overall, the iC60L MCB offers reliable and effective protection against overloads and short circuits, making it an essential component of electrical installations where safety and reliability are paramount.
