The Acti 9 range from Schneider Electric includes various products designed for final distribution applications in residential, commercial, and industrial settings. Here's an overview of Acti 9 final distribution products:

Acti 9 Final Distribution Products Overview

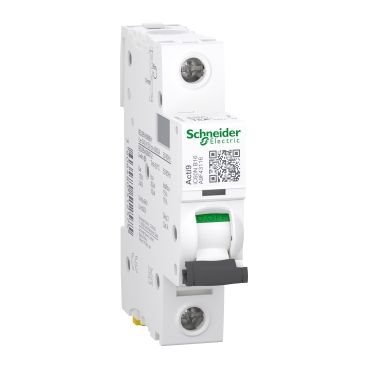

1. Miniature Circuit Breakers (MCBs)

• Acti 9 miniature circuit breakers provide protection against overcurrents and short circuits in electrical circuits. They are available in various ratings and configurations to suit different installation requirements.

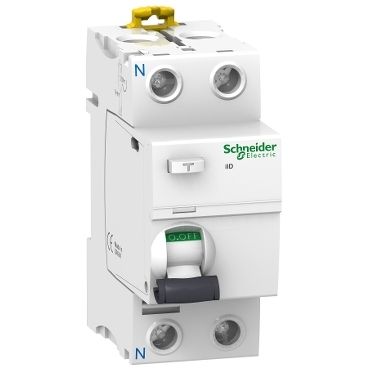

2. Residual Current Devices (RCDs)

• Acti 9 residual current devices, also known as residual current circuit breakers (RCCBs), provide protection against earth leakage currents, helping to prevent electric shock and fire hazards.

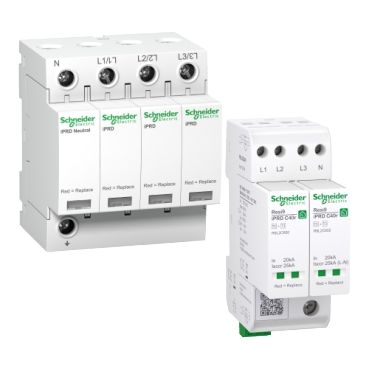

3. Surge Protection Devices (SPDs)

• Acti 9 surge protection devices protect electrical installations and equipment against transient voltage surges caused by lightning strikes, switching operations, or other external factors.

4. Distribution Boards

• Acti 9 distribution boards provide a centralized location for housing and organizing MCBs, RCDs, and other final distribution devices. They are available in various sizes and configurations to accommodate different installation requirements.

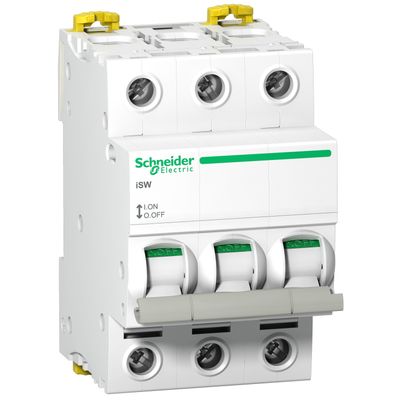

5. Switch Disconnectors

• Acti 9 switch disconnectors provide a means for manually switching off and isolating electrical circuits for maintenance or safety purposes. They are available in various sizes and configurations, including 3-pole and 4-pole versions.

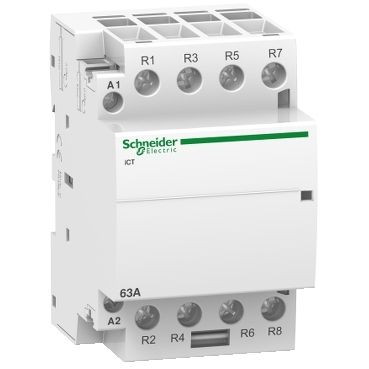

6. Contactors and Thermal Overload Relays

• Acti 9 contactors and thermal overload relays are used for controlling and protecting electric motors in industrial and commercial applications. They provide reliable switching and overload protection for motor circuits.

Key Features

• Modular Design: Acti 9 products are designed to be modular and easily expandable, allowing for flexibility and scalability in final distribution installations.
• Easy Installation: The products are designed for quick and easy installation, with features such as DIN rail mounting and screwless terminals.
• High Performance: Acti 9 products offer high performance and reliability, ensuring efficient and safe operation of electrical installations.
• Compliance: Schneider Electric's Acti 9 range complies with international standards and regulations for electrical safety and performance.

Applications

Acti 9 final distribution products are used in a wide range of applications, including residential buildings, commercial offices, industrial facilities, and infrastructure projects. They provide essential protection and control functions to ensure the safety, reliability, and efficiency of electrical installations.

Conclusion

Schneider Electric's Acti 9 final distribution products offer a comprehensive range of solutions for protecting and controlling electrical circuits in residential, commercial, and industrial applications. With their modular design, ease of installation, and high performance, Acti 9 products are trusted by professionals worldwide for final distribution installations.
