Overview of Electrical Protection and Switching Devices

Electrical protection and switching devices play a crucial role in safeguarding electrical systems from faults and ensuring the safe operation and maintenance of power distribution networks. Below is an overview of various devices and their functionalities:

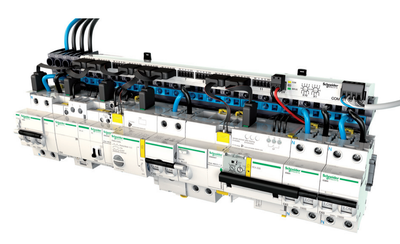

Circuit Breakers

Circuit breakers are essential for protecting electrical cables and machines from overloads, short circuits, and insulation failures. They automatically interrupt the electrical flow in the event of a fault, preventing damage and enhancing safety.

Types of Circuit Breakers:

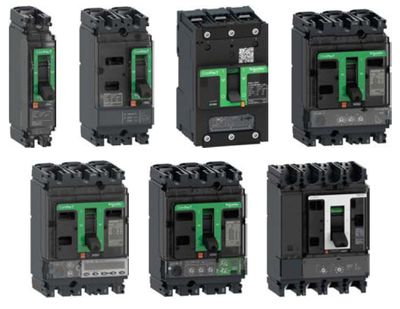

1. ComPacT Moulded Case Circuit Breakers (MCCB):
   • Current Range: 100A to 3200A
   • Application: Protects cables and machines from overloads and short circuits.
   • Features: Compact design, robust protection for medium and large electrical systems.

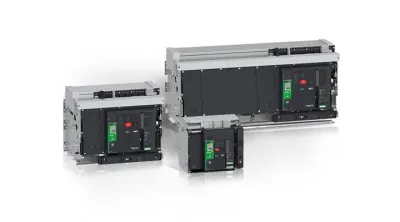

2. MasterPact Air Circuit Breakers (ACB):
   • Current Range: Up to 6300A
   • Application: Protects low-voltage lines.
   • Features: High breaking capacity, suitable for large industrial installations and critical applications.

Switch Disconnectors

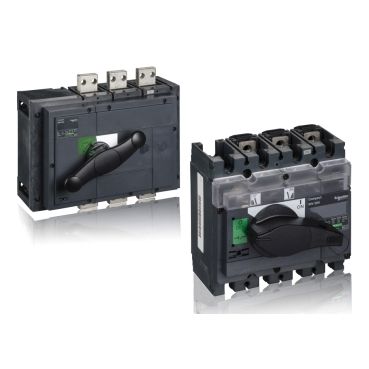

Switch disconnectors are used to switch lines on and off, primarily to de-energize and isolate a part of the network before servicing. They ensure safety during maintenance by providing a visible disconnection point.

Types of Switch Disconnectors:

1. MasterPact:
   • Used for switching and isolating low-voltage lines.
   • Suitable for high-current applications up to 6300A.
2. ComPact:
   • Designed for manual or remote-controlled switching.
   • Offers flexibility in low-voltage line management.
3. FuPact:
   • Provides reliable disconnection and switching.
   • Ensures safety and compliance with electrical standards.

Transfer Switches

Transfer switches are crucial for maintaining power continuity by switching from the main power source to a backup source (e.g., generators) during power outages.

1. TransferPact Automatic and Manual Transfer Switches:
   • Function: Change from main to backup power sources automatically or manually.
   • Application: Ensures continuous power supply for critical applications.

Electrical Installation Wiki

The Electrical Installation Wiki serves as a comprehensive reference for setting up power distribution and supply systems. It provides valuable information on:

1. Basic Functions of LV Switching Devices:
   • Detailed explanations of how low-voltage switching devices operate and their roles in electrical systems.
2. Position and Selection of Switching Devices:
   • Guidelines on where and how to install switching devices to ensure optimal performance and compliance with standards.
3. Circuit Breaker Standards and Descriptions:
   • Information on the standards governing circuit breakers, their specifications, and application guidelines.
   • Electrical Installation Guide (electrical-installation.org)

Summary

These devices are integral to the safety and efficiency of electrical systems:

• ComPacT MCCB: Medium to large system protection (100A to 3200A).
• MasterPact ACB: Large system protection (up to 6300A).
• Switch Disconnectors (MasterPact, ComPact, FuPact): Safe isolation and disconnection.
• TransferPact Switches: Automatic/manual transfer to backup power.

For more detailed guidance, the Electrical Installation Wiki is an invaluable resource, offering in-depth information on device functions, selection, standards, and compliance.
