Schneider Electric’s Harmony XB5R wireless pushbutton is part of the Harmony range, designed to provide a flexible, cost-effective, and easy-to-install solution for remote control applications. The wireless pushbutton eliminates the need for complex wiring, making it ideal for retrofit projects and applications where traditional wired solutions are impractical.

Harmony XB5R Wireless Pushbutton Overview

Key Components

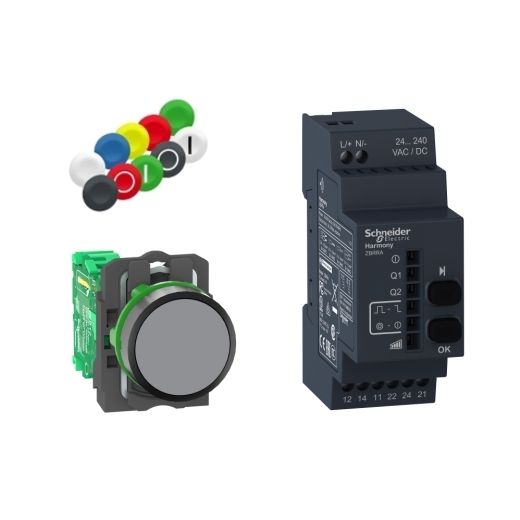

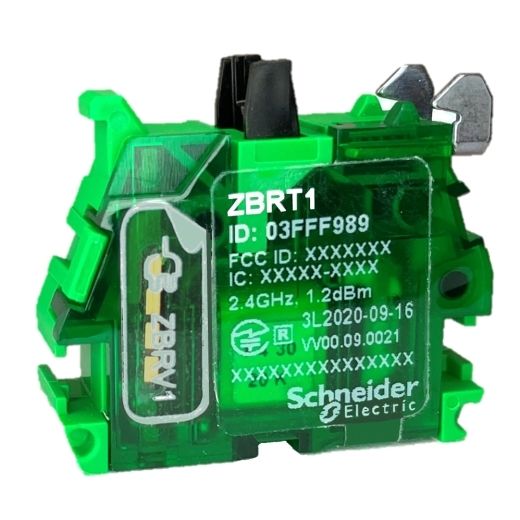

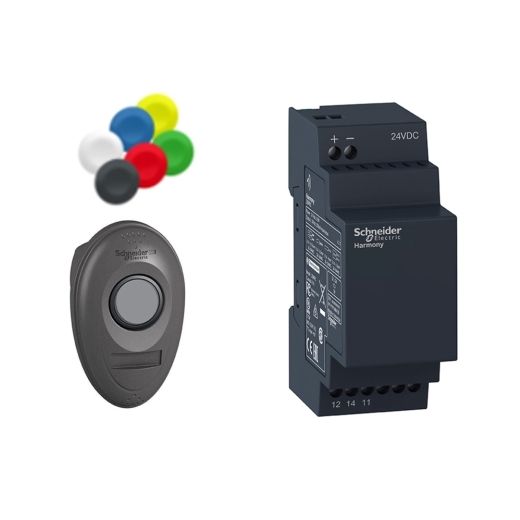

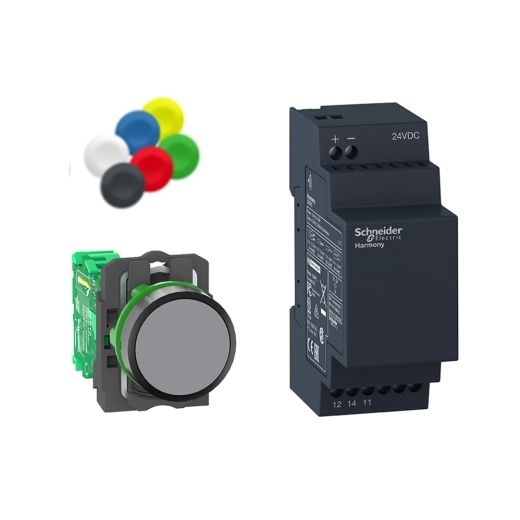

1. Wireless Pushbutton (Transmitter)
   • Design: Based on the XB5 series design with a robust and ergonomic build.
   • Features:
     • Battery-free operation using energy harvesting technology.
     • Available in various colors and configurations (e.g., standard pushbuttons, emergency stop).
     • Long-range operation, capable of transmitting signals up to 100 meters in open space.
     • High resistance to dust, water, and environmental factors with IP65 rating.

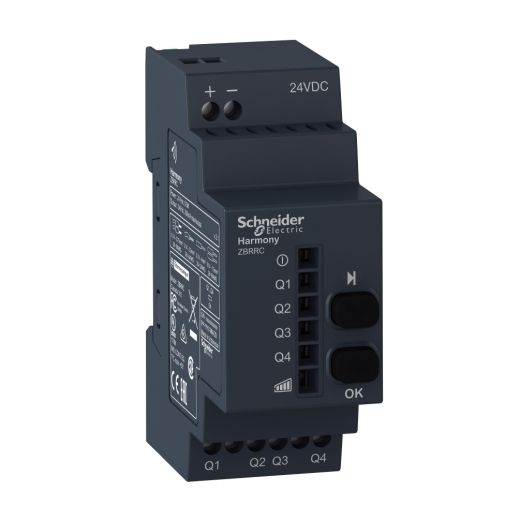

2. Receiver
   • Design: Compact and easy to integrate into existing control systems.
   • Features:
     • Capable of receiving signals from multiple wireless pushbuttons.
     • Various mounting options for ease of installation.
     • Provides relay outputs to interface with existing control equipment.
     • Configurable response modes and delay settings.

Key Features and Benefits

• Wireless Communication:
  • Eliminates the need for complex wiring, reducing installation time and cost.
  • Reliable signal transmission with a range suitable for most industrial and commercial applications.
• Energy Harvesting Technology:
  • The pushbutton generates its own power when pressed, eliminating the need for batteries and maintenance.
  • Environmentally friendly solution with no need for battery disposal.
• Easy Installation and Flexibility:
  • Quick and simple installation process with minimal disruption to existing operations.
  • Flexible positioning of pushbuttons without the constraints of wiring.
• Robust and Durable Design:
  • Designed to withstand harsh industrial environments with high resistance to dust, water, and impacts.
  • IP65-rated, ensuring reliable operation in challenging conditions.
• Scalability and Integration:
  • Multiple pushbuttons can be paired with a single receiver, allowing for scalable and expandable control solutions.
  • Compatible with standard industrial control systems and equipment.

Applications

• Industrial Automation: Remote control of machinery and equipment in manufacturing plants and industrial facilities.
• Building Automation: Control of lighting, HVAC systems, and access control in commercial buildings.
• Material Handling: Operation of conveyor systems, hoists, and other material handling equipment.
• Retrofit Projects: Ideal for upgrading existing systems where adding new wiring is impractical or too costly.
• Temporary Installations: Suitable for temporary setups such as exhibitions, events, and construction sites where quick installation and removal are needed.

Conclusion

The Harmony XB5R wireless pushbutton from Schneider Electric offers a practical and innovative solution for remote control in various industrial and commercial applications. Its wireless and battery-free design, combined with ease of installation and robust performance, makes it a versatile and reliable choice for modern control systems.
