ELKO EP voltage relays are designed to monitor and control voltage levels in electrical systems, providing protection and ensuring stable operation. These relays can detect overvoltage, undervoltage, and phase failure conditions, making them essential for both residential and industrial applications. Here are the key features and benefits of ELKO EP voltage relays:

Key Features:

1. Voltage Monitoring:
   • Overvoltage and Undervoltage Detection: Monitors the voltage levels and triggers a response when the voltage goes beyond the set limits.
   • Adjustable Thresholds: Allows users to set custom voltage thresholds for overvoltage and undervoltage protection.
2. Phase Monitoring:
   • Phase Loss and Phase Sequence Detection: Ensures proper phase sequence and detects phase loss, which is crucial for three-phase systems.
   • Phase Asymmetry Detection: Identifies imbalances between phases, which can cause equipment damage or inefficient operation.
3. Control Functions:
   • Relay Output: Can control external devices such as circuit breakers, alarms, or contactors based on voltage conditions.
   • Delay Settings: Adjustable delay times to prevent false triggering due to transient voltage fluctuations.

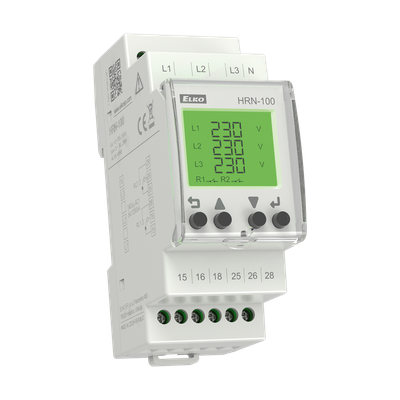

4. Digital Display and Indicators:
   • Real-Time Voltage Readout: Provides current voltage levels for easy monitoring.
   • LED Indicators: Show the operational status of the relay and any fault conditions.
5. Programmable Settings:
   • Customizable Parameters: Users can program specific voltage thresholds, delay times, and control logic to match their application requirements.
6. Durability and Reliability:
   • Robust Construction: Built to withstand harsh electrical environments, ensuring long-term reliability and performance.
   • Electrical Isolation: Provides safe operation by isolating the control circuit from the monitored voltage.

Benefits:

• Equipment Protection: Prevents damage to electrical equipment by detecting and responding to abnormal voltage conditions.
• System Stability: Ensures stable operation by maintaining voltage levels within safe limits.
• Energy Efficiency: Optimizes the performance of electrical systems by preventing inefficient operation due to voltage imbalances or phase issues.
• Versatility: Suitable for a wide range of applications, including residential, commercial, and industrial settings.

Applications:

• Industrial Control Panels: Protects machinery and equipment from voltage fluctuations and phase issues.
• Power Distribution Systems: Ensures stable voltage levels in power distribution networks.
• Renewable Energy Systems: Monitors voltage levels in solar and wind power installations to protect inverters and other equipment.
• Residential Electrical Systems: Safeguards household appliances and electronics from voltage spikes and drops.

Example Models:

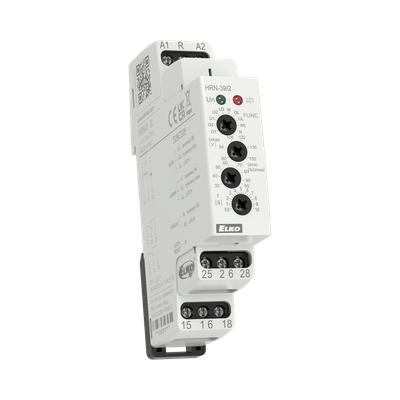

1. ELKO EP HRN-55: A versatile voltage relay suitable for monitoring and controlling voltage levels in various applications.
2. ELKO EP HRN-33: Designed for three-phase systems, providing comprehensive phase monitoring and voltage protection.
3. ELKO EP HRN-43: An advanced model with enhanced features such as multiple relay outputs and programmable settings.

Installation and Programming:

• Installation: Mount the voltage relay in a suitable location within the electrical panel. Connect it according to the provided wiring diagram, ensuring proper connections to the monitored voltage and the controlled devices.
• Programming: Use the digital display and control buttons to set the desired voltage thresholds, delay times, and other parameters. Follow the user manual for detailed instructions on configuring the specific model.

Would you like more detailed information on a specific ELKO EP voltage relay model, or assistance with installation and programming?
