The twilight switch function is designed to control lighting based on the ambient light levels. This function automatically turns lights on when it gets dark and off when it gets light, enhancing energy efficiency and convenience. Here’s an in-depth look at the twilight switch function:

Key Features of Twilight Switches:

1. Light Sensitivity Adjustment:

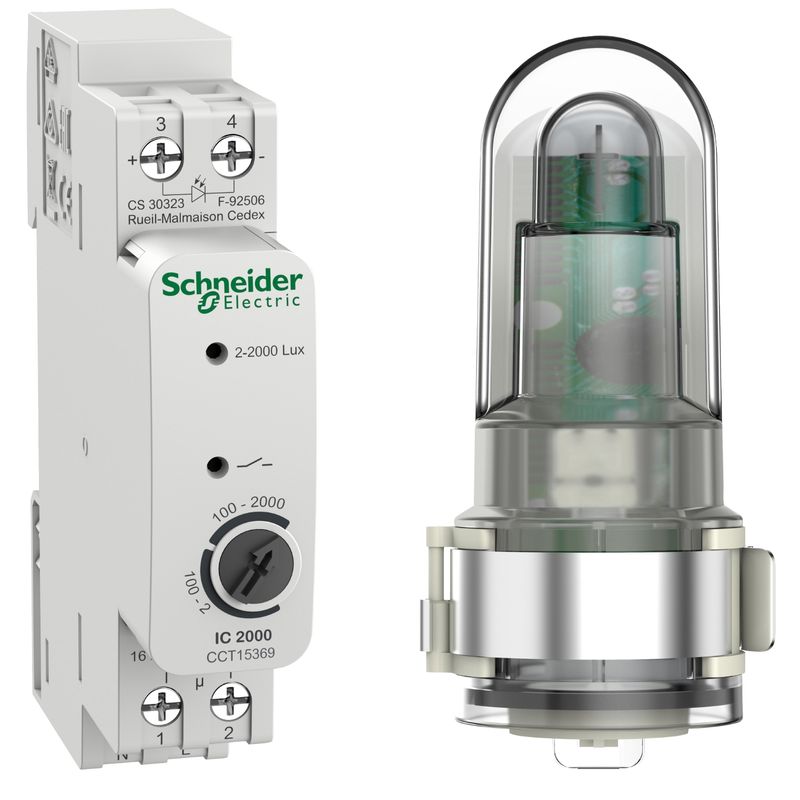

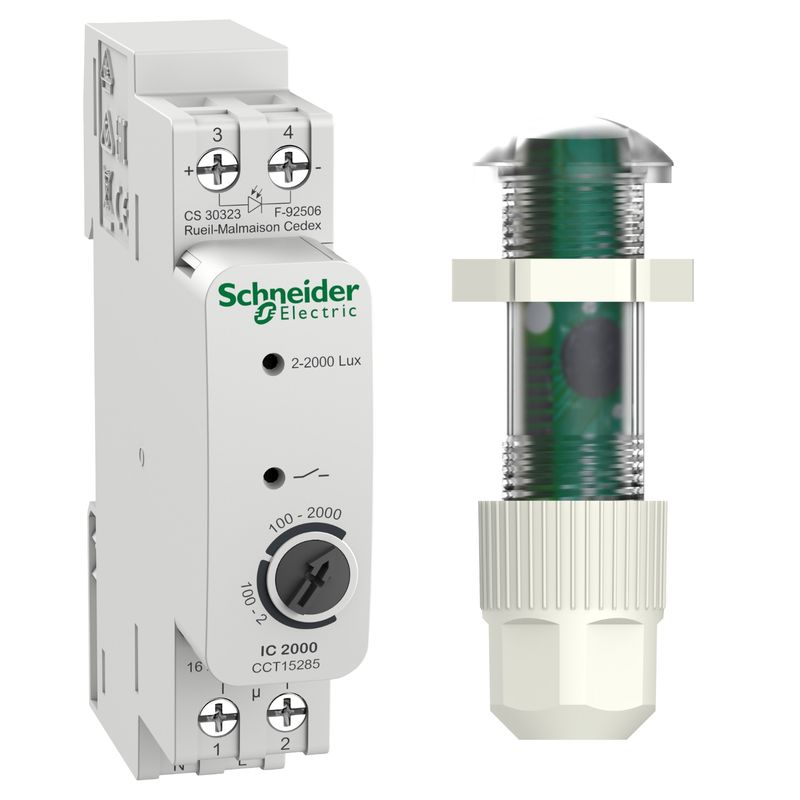

   • Adjustable Lux Levels: The sensitivity to light can be set within a specific range (e.g., 2 to 2000 lux) to determine at what light level the switch will activate or deactivate the connected lighting.
2. Automatic Operation:
   • Day/Night Detection: The switch uses a light sensor to detect ambient light levels. When the light falls below the set threshold, the lights turn on. When it rises above the threshold, the lights turn off.
3. Programmable Settings:
   • On/Off Times: Some models allow programming specific on/off times in addition to light sensitivity settings, providing more control over lighting schedules.
   • Delay Function: Prevents unnecessary switching due to brief changes in light conditions, such as passing clouds or transient light sources.
4. Manual Override:
   • Temporary Override: Allows manual control to override the automatic function without altering the programmed settings, providing flexibility for special situations.
5. Energy Efficiency:
   • Reduced Energy Consumption: Ensures lights are only on when needed, which helps to save energy and reduce electricity costs.

Benefits:

• Convenience: Automatically manages lighting without the need for manual intervention.
• Security: Enhances security by ensuring outdoor areas are well-lit during low-light conditions.
• Energy Savings: Minimizes unnecessary energy use by turning lights off during daylight hours.
• Extended Bulb Life: Reduces wear and tear on lighting fixtures by avoiding unnecessary operation.

Applications:

• Outdoor Lighting: Ideal for controlling street lights, garden lights, pathway lights, and other outdoor lighting installations.
• Security Lighting: Ensures security lights are active during nighttime and off during the day, enhancing property security.
• Commercial and Industrial Sites: Used in parking lots, loading docks, and other outdoor areas where consistent lighting is necessary.

Installation and Programming:

1. Installation:
   • Mount the twilight switch in a location where it can accurately detect ambient light without obstruction.
   • Ensure it is protected from direct light sources and reflective surfaces that could interfere with its operation.
   • Connect the switch according to the provided wiring diagram, typically involving connections to the power supply and the controlled lighting fixtures.
2. Programming:
   • Set the desired lux level sensitivity to determine when the lights should turn on or off.
   • If the model supports additional programming, configure the specific on/off times and any delay settings to fine-tune the operation.
