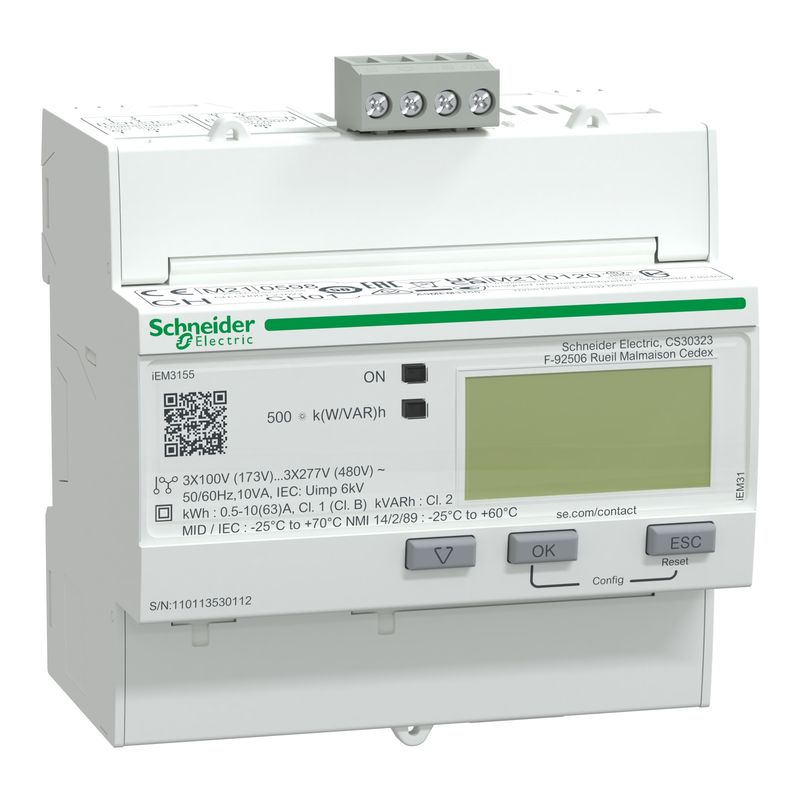

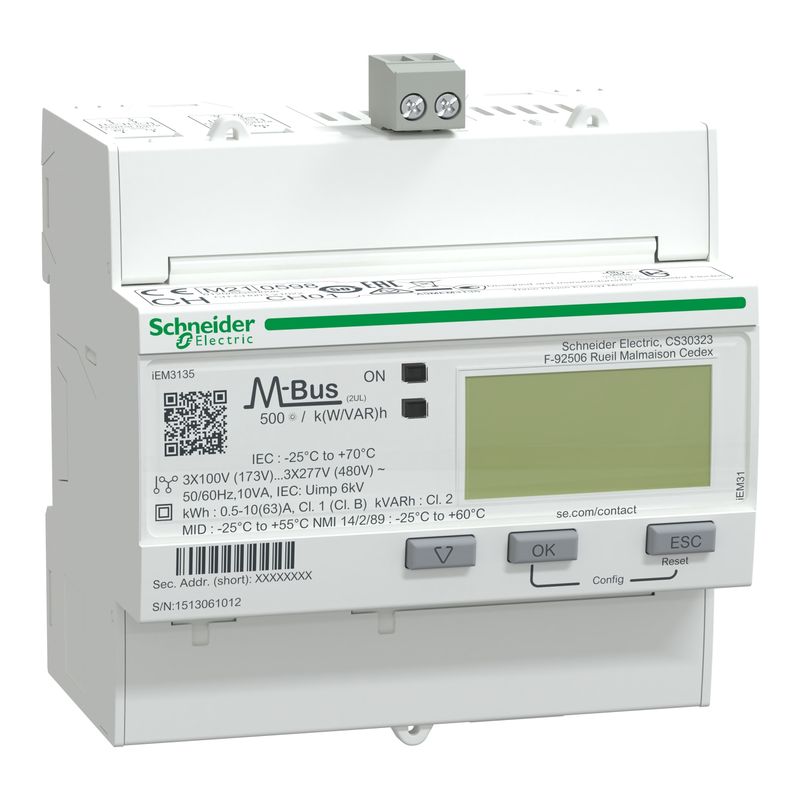

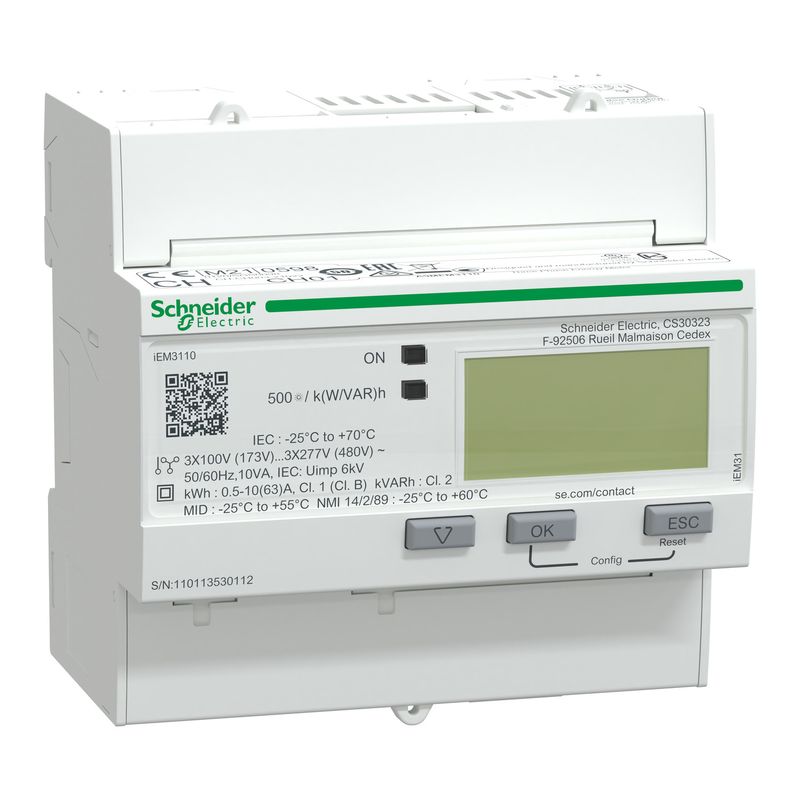

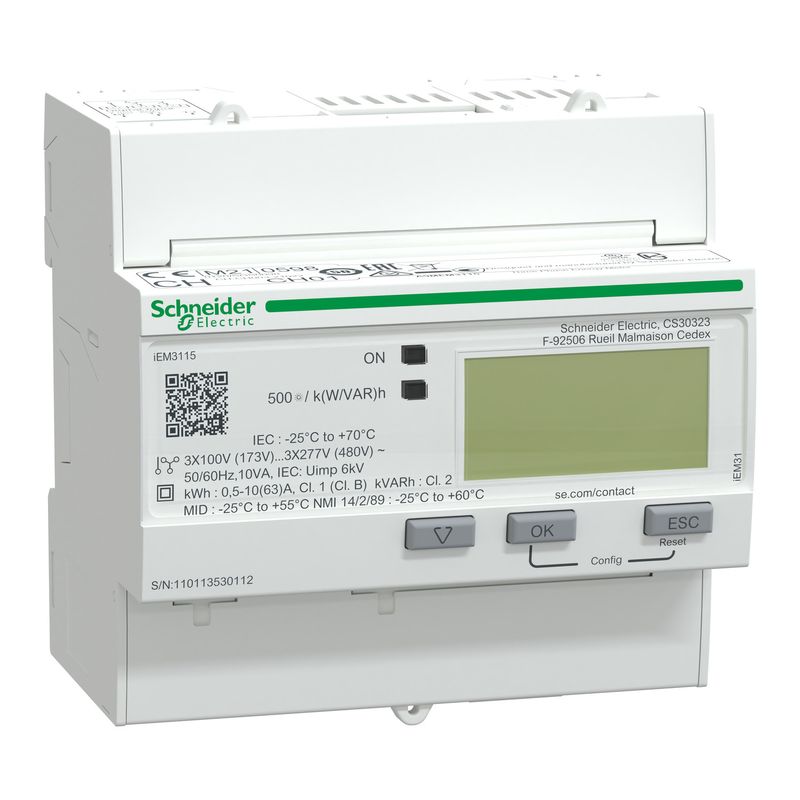

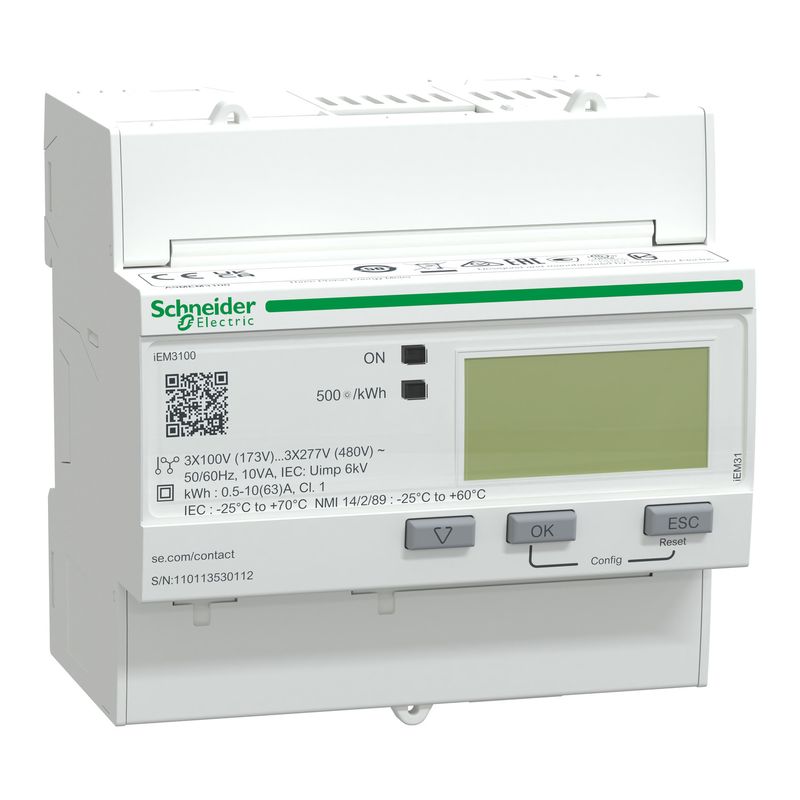

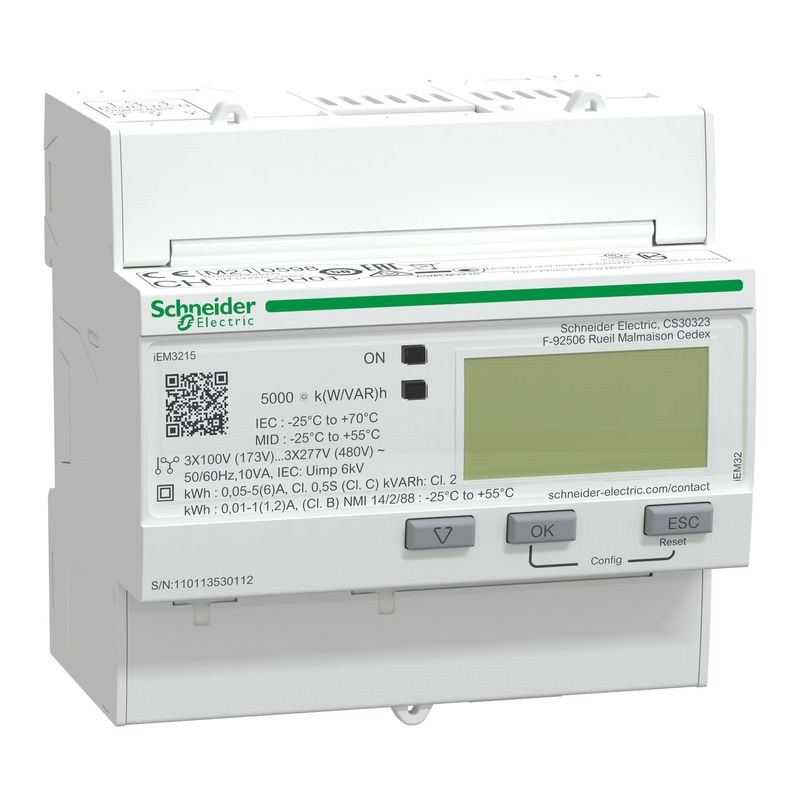

The Acti 9 iEM3000 series is a range of energy meters manufactured by Schneider Electric. These meters are designed to measure and monitor electrical energy consumption in various applications, from residential to commercial and industrial settings. Here are some key features and specifications of the Acti 9 iEM3000 series:

Key Features:

1. Energy Measurement: The iEM3000 series meters provide accurate measurement of electrical energy consumption, including kWh, kVAh, kvarh, and kWh per tariff.
2. Communication: These meters support various communication protocols such as Modbus, BACnet, and M-Bus, enabling easy integration with building management systems (BMS) and other energy monitoring systems.
3. Display: The meters come with an LCD display that shows real-time data, making it easy to read measurements directly from the device.
4. Multi-Tariff: They support multi-tariff configurations, allowing users to measure energy consumption based on different time-of-use tariffs.
5. Input and Output: The iEM3000 series includes models with digital inputs and outputs, which can be used for pulse counting and control applications.
6. Accuracy: High accuracy class (Class 1 or Class 0.5 depending on the model) ensures precise energy measurement.
7. Compact Design: The meters are designed to fit in compact spaces and are suitable for DIN rail mounting.
8. Compliance: These meters comply with international standards such as IEC 62053-21 and IEC 62053-22.

Specifications:

• Voltage Measurement Range: Typically, 50-300V (phase-neutral) or 100-600V (phase-phase).
• Current Measurement Range: 0.25-6A with the use of external current transformers.
• Frequency: 50/60 Hz.
• Operating Temperature: -25°C to +70°C.
• Power Supply: Various models support different power supply options, including self-powered or externally powered configurations.

Applications:

1. Residential: Monitoring energy consumption in homes, apartments, and residential complexes.
2. Commercial: Tracking energy usage in offices, retail spaces, and other commercial buildings.
3. Industrial: Measuring energy consumption in manufacturing plants, warehouses, and other industrial facilities.
4. Utility: Used by utility companies for sub-metering applications to monitor energy consumption in multi-tenant buildings.

For more detailed information on a specific model within the Acti 9 iEM3000 series, it would be best to refer to the product datasheets and user manuals provided by Schneider Electric.
