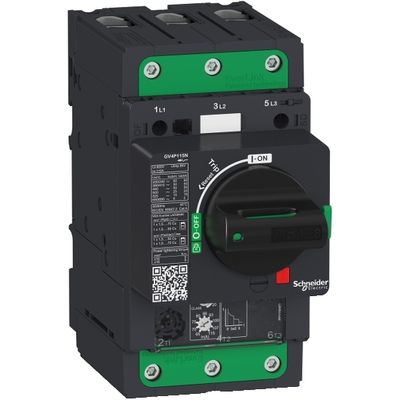

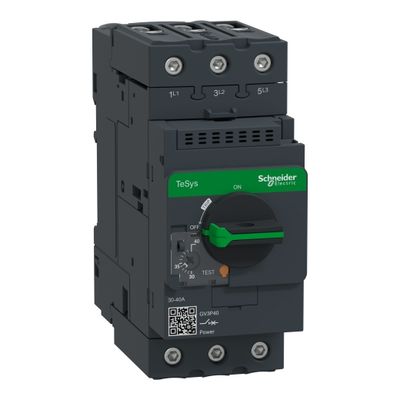

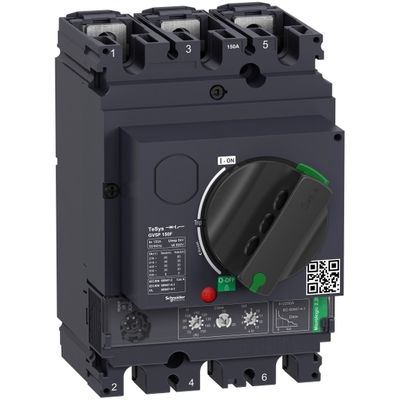

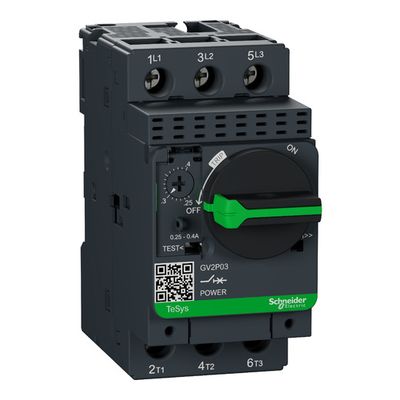

Schneider Electric's TeSys GV motor circuit breaker is a versatile device designed to provide comprehensive protection and control for motors in various industrial and commercial applications. Here are its key features and functionalities:

Manual Isolation:

The TeSys GV motor circuit breaker allows for manual isolation of the motor from the power supply. This feature ensures that the motor can be safely disconnected from the electrical system for maintenance, repair, or servicing purposes.

Manual Motor Control:

In addition to isolation, the TeSys GV motor circuit breaker offers manual control over the motor operation. It allows users to start, stop, and control the speed of the motor manually, providing flexibility and convenience in motor operation.

Short Circuit Protection:

The TeSys GV motor circuit breaker is equipped with short circuit protection mechanisms to safeguard the motor and electrical system against short circuit faults. In the event of a short circuit, the circuit breaker automatically trips, disconnecting the motor from the power supply to prevent damage and ensure safety.

Thermal Protection:

Thermal protection is another essential feature of the TeSys GV motor circuit breaker. It monitors the temperature of the motor and automatically trips the circuit breaker if the motor overheats, protecting it from damage due to excessive heat and ensuring reliable operation.

Additional Features:

1. Adjustable Settings: The TeSys GV motor circuit breaker typically offers adjustable settings for overload and short circuit protection, allowing users to customize the protection parameters based on the specific requirements of the motor and application.
2. Compact Design: Schneider Electric designs its TeSys GV motor circuit breakers to be compact and space-saving, making them suitable for installation in control panels, electrical cabinets, and motor control centers.
3. High Breaking Capacity: These circuit breakers are designed to handle high breaking capacities, ensuring reliable operation and protection even in demanding industrial environments with large motors and heavy loads.

Applications:

The TeSys GV motor circuit breaker is commonly used in a wide range of applications across industries, including:

• Conveyor systems
• Pumping stations
• HVAC systems
• Compressors
• Machine tools
• Industrial machinery

Conclusion:

Schneider Electric's TeSys GV motor circuit breaker is a reliable and versatile device that provides manual isolation, manual motor control, and comprehensive protection against short circuits and thermal overload conditions. With its compact design, adjustable settings, and high breaking capacity, it offers reliable motor protection and control in various industrial and commercial applications, ensuring safe and efficient operation of motor-driven systems.
