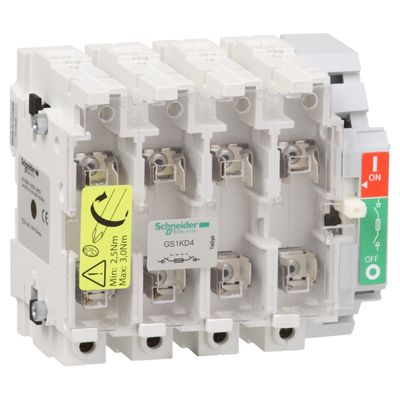

TeSys DF, LS1/GK1 Fuse-Carriers

TeSys DF and LS1/GK1 are part of Schneider Electric's TeSys range, offering robust and reliable fuse-carrier solutions designed to protect motors and other equipment from short circuits. These fuse carriers are suitable for a wide range of applications, providing safety and reliability in electrical installations.

Key Features of TeSys DF, LS1/GK1 Fuse-Carriers

1. Wide Current Range
   • Current Rating: Available in a wide range of current ratings from 0.5 A to 125 A, suitable for various applications and load requirements.
   • Voltage Capacity: Can handle voltages up to 690 V, making them versatile for different electrical systems.
2. Protection Capabilities
   • Short-Circuit Protection: Designed specifically to protect motors and other electrical components from short circuits, ensuring safety and longevity.
   • Compatibility with Various Fuses: Compatible with a range of fuse types, including gG, aM, and gM, providing flexibility in protection strategies.
3. Durable Construction
   • Robust Design: Built to withstand harsh industrial environments, ensuring reliable operation and long service life.
   • High-Quality Materials: Made from high-quality materials to ensure durability and consistent performance.
4. Ease of Use
   • Simple Installation: Designed for easy and quick installation, reducing downtime and maintenance efforts.
   • Clear Indications: Features clear indicators for fuse status, making it easy to identify and replace blown fuses.
5. Safety Features
   • Enhanced Safety: Provides secure and reliable electrical connections, minimizing the risk of electrical faults.
   • Insulation: Ensures proper insulation to protect against electrical shock and other hazards.

Applications of TeSys DF, LS1/GK1 Fuse-Carriers

1. Motor Protection
   • Short-Circuit Protection: Essential for protecting motors from short circuits, ensuring safe and reliable motor operation.
   • Variety of Motor Types: Suitable for different types of motors, including those up to 125 A (55 kW / 400 V).
2. Industrial Equipment
   • Machine Protection: Provides protection for various industrial machines and equipment, ensuring safe and continuous operation.
   • Process Control Systems: Protects control systems and other sensitive equipment from electrical faults.
3. Electrical Distribution
   • Panel Boards: Used in electrical distribution panels to protect circuits from short circuits and overloads.
   • Switchgear: Integrates with switchgear systems to enhance overall electrical protection.
4. Renewable Energy Systems
   • Solar and Wind Installations: Ensures the safety of electrical components in renewable energy systems by providing reliable short-circuit protection.
   • Energy Storage Systems: Protects batteries and other energy storage devices from electrical faults.

Benefits of Using TeSys DF, LS1/GK1 Fuse-Carriers

• Reliable Protection: Ensures effective protection against short circuits, safeguarding motors and other electrical equipment.
• Versatility: Suitable for a wide range of applications, offering flexibility in different electrical systems.
• Durability: High-quality construction ensures long-lasting performance, even in harsh environments.
• Ease of Maintenance: Simple installation and clear indicators make it easy to maintain and replace fuses as needed.
• Enhanced Safety: Provides secure and insulated connections, minimizing the risk of electrical hazards.

Conclusion

TeSys DF, LS1/GK1 fuse-carriers offer comprehensive protection for motors and other electrical equipment, ensuring safety and reliability in a wide range of applications. With their robust design, wide current and voltage capacity, and ease of use, these fuse-carriers are essential components in industrial, commercial, and renewable energy electrical systems. By providing effective short-circuit protection, TeSys DF, LS1/GK1 fuse-carriers help enhance the longevity and reliability of electrical installations, contributing to overall operational efficiency and safety.
