TeSys Deca contactors, part of the TeSys family from Schneider Electric, are designed for controlling motors and other loads. They are suitable for a range of applications requiring reliable and efficient motor control. Here's a detailed overview:

Overview of TeSys Deca Contactors

Key Features

• Wide Current Range: Available to control motors up to 150 A (75 kW / 400 V).
• Versatile Applications: Suitable for motor control (9 A to 150 A) and resistive load control (20 A to 200 A).
• Poles: Available in 3-pole and 4-pole versions.
• Compact Design: Space-efficient design allows for easy integration into control panels and other electrical systems.
• Auxiliary Contacts: Optional auxiliary contact blocks can be added for extended functionality.
• Modular Accessories: Compatible with a range of accessories such as thermal overload relays and auxiliary contacts for enhanced protection and control.
• Electrical Durability: High endurance for frequent switching operations, ensuring long-term reliability.
• Compliance: Meets international standards such as IEC 60947, UL, and CSA for safety and performance.

Benefits

• High Performance: Reliable operation in demanding industrial environments.
• Flexibility: Suitable for a wide range of applications, from motor control to resistive load management.
• Safety: Enhanced safety features, including coil suppression and protective enclosures.
• Easy Installation: Designed for quick and easy installation with clear labeling and accessible terminals.
• Scalability: Modular design allows for easy expansion and customization to meet specific application needs.

Common Applications

• Motor Control: Starting, stopping, and reversing electric motors in industrial and commercial applications.
• HVAC Systems: Control of heating, ventilation, and air conditioning systems.
• Pumping Systems: Managing pumps in water treatment, irrigation, and other applications.
• Lighting Control: Automation and control of lighting circuits in large buildings and industrial facilities.
• Power Distribution: Integral components in power distribution panels and control systems.

Technical Specifications

• Operational Voltage: Typically 400 V, with options for different voltage levels.
• Current Rating:
  • Motor Control: 9 A to 150 A
  • Resistive Load Control: 20 A to 200 A
• Power Rating: Up to 75 kW for motor control at 400 V.
• Coil Voltage: Available in various AC and DC coil voltage options.
• Contact Configuration:
  • 3-pole and 4-pole configurations.
  • Auxiliary contact options for additional control functionality.
• Electrical and Mechanical Life: Designed for high durability and long service life in industrial applications.

Installation and Usage

1. Mounting: Securely mount the contactor using DIN rail or panel mounting options.
2. Wiring: Connect the main power terminals and control circuit terminals as per the wiring diagram provided by the manufacturer. Ensure all connections are tight and secure.
3. Configuration: Attach any auxiliary contact blocks or thermal overload relays if required for your specific application.
4. Testing: Test the contactor to ensure it operates correctly and switches the connected load reliably.
5. Maintenance: Regularly inspect the contactor for signs of wear or damage. Replace components as necessary to maintain optimal performance.

Popular Models and Series

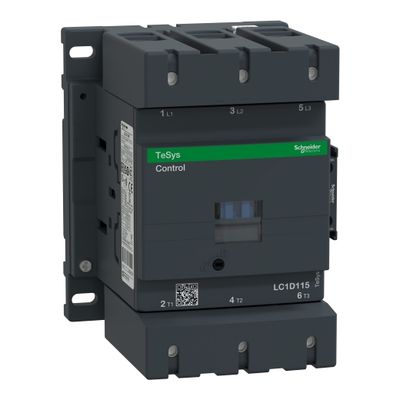

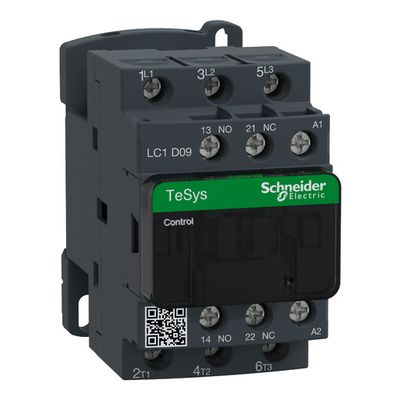

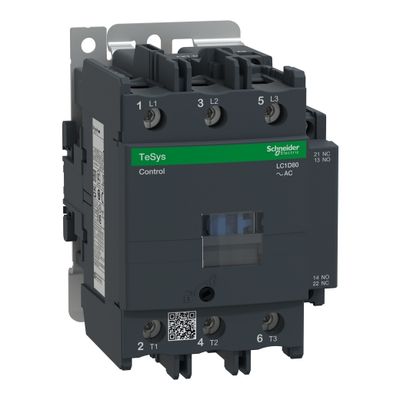

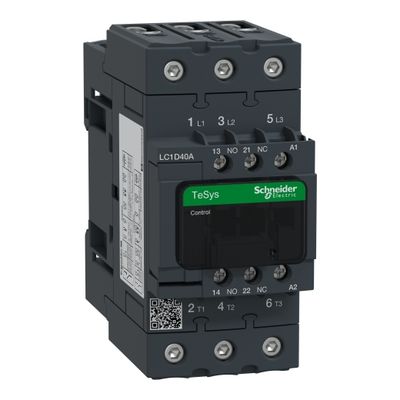

• TeSys Deca LC1D Series: Widely used for standard motor control applications.
• TeSys Deca LC1DT Series: Features contactors with DC control coils for applications requiring DC operation.
• TeSys Deca Reversing Contactors: For applications needing forward and reverse motor control.

Summary

TeSys Deca contactors are reliable, high-performance devices designed to control motors and resistive loads in industrial and commercial environments. Their robust construction, modular design, and wide range of available configurations make them suitable for various applications, ensuring safe and efficient operation. By meeting international standards and offering easy installation and maintenance, TeSys Deca contactors are a valuable component in any electrical control system.
