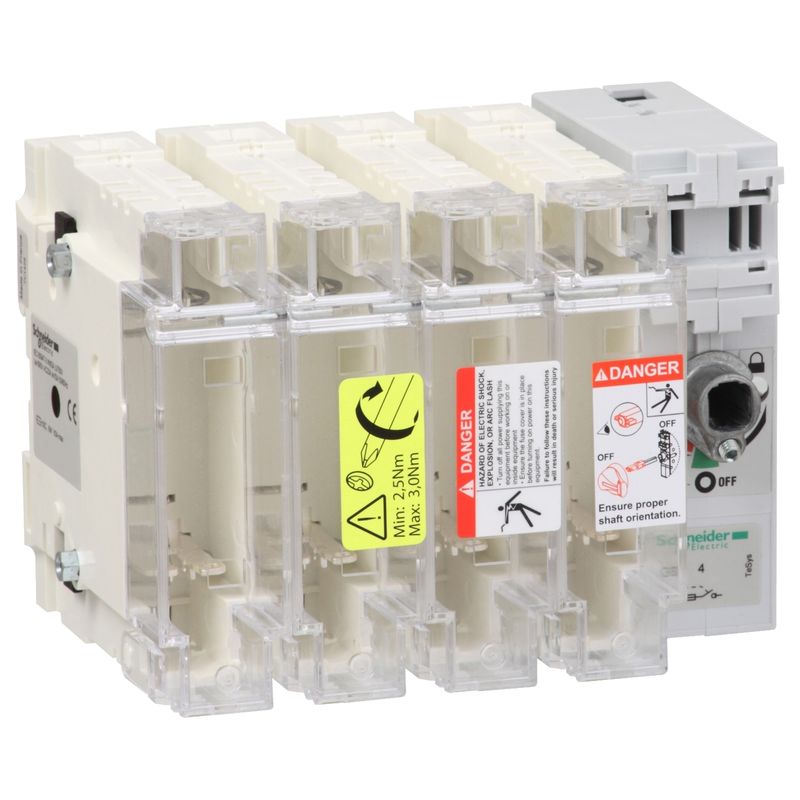

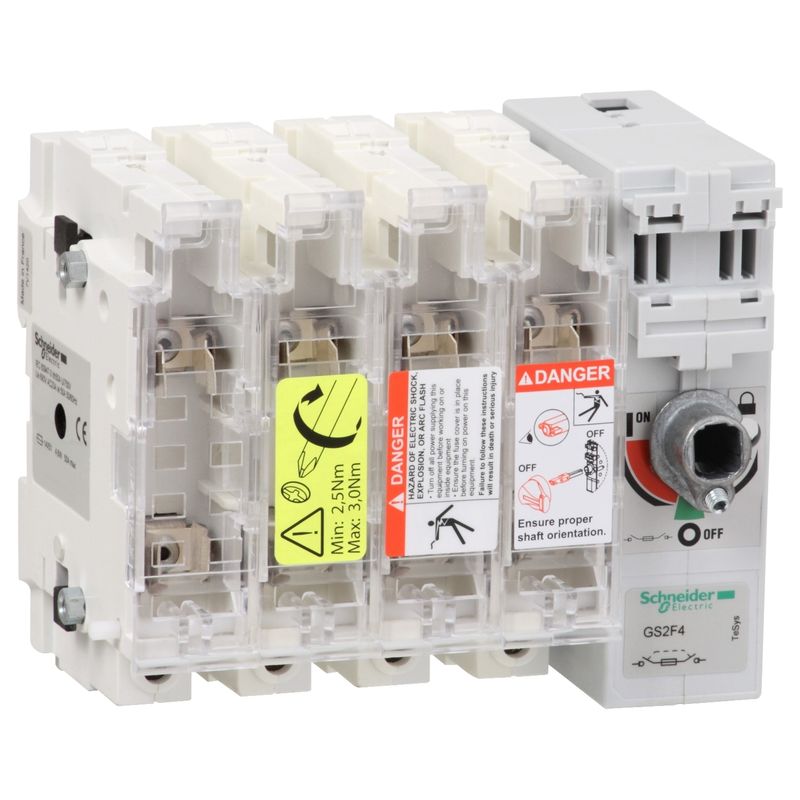

Switch Disconnector Fuse: TeSys GS

The TeSys GS series from Schneider Electric is a range of switch disconnector fuses designed to provide robust and reliable protection for electrical systems, particularly for disconnecting and isolating circuits while providing short-circuit protection. These devices are essential for ensuring the safety and reliability of industrial and commercial electrical installations.

Key Features of TeSys GS Switch Disconnector Fuse

1. Versatile Protection
   • Short-Circuit and Overload Protection: Combines the functions of a switch disconnector and a fuse to provide comprehensive protection against short circuits and overloads.
   • High Breaking Capacity: Designed to safely interrupt high fault currents, ensuring protection and safety.
2. Wide Range of Ratings
   • Current Ratings: Available in a wide range of current ratings to suit different applications and load requirements.
   • Voltage Capacity: Capable of handling high voltages, typically up to 690 V, making them suitable for various industrial applications.
3. Durable and Robust Construction
   • Industrial-Grade Materials: Constructed from high-quality materials to ensure durability and long-term reliability in demanding environments.
   • Mechanical Strength: Built to withstand mechanical stresses and vibrations common in industrial settings.
4. Ease of Installation and Maintenance
   • DIN Rail or Panel Mounting: Options for DIN rail or panel mounting, providing flexibility and ease of installation.
   • Fuse Status Indicators: Clear indicators for fuse status to facilitate easy identification and replacement of blown fuses.
5. Enhanced Safety Features
   • Electrical Isolation: Provides effective isolation of electrical circuits, ensuring safe maintenance and operation.
   • Lockable Handle: Equipped with a lockable handle to prevent unauthorized operation and enhance safety during maintenance.

Applications of TeSys GS Switch Disconnector Fuses

1. Motor Protection
   • Disconnect and Isolate Motors: Provides a means to disconnect and isolate motors from the power supply for maintenance and safety.
   • Short-Circuit Protection: Ensures motors are protected from short-circuits, enhancing their safety and longevity.
2. Industrial Equipment
   • Machine Isolation: Used to isolate industrial machinery and equipment during maintenance or emergency situations.
   • Control Panels: Integral component in control panels to provide protection and isolation of circuits.
3. Electrical Distribution
   • Distribution Boards: Used in electrical distribution boards to provide short-circuit protection and isolation for various circuits.
   • Switchgear Systems: Compatible with switchgear systems, offering reliable protection and disconnection capabilities.
4. Renewable Energy Systems
   • Solar and Wind Installations: Provides protection and isolation for electrical components in renewable energy installations.
   • Energy Storage Systems: Protects and isolates batteries and other components in energy storage systems.

Benefits of Using TeSys GS Switch Disconnector Fuses

• Comprehensive Protection: Combines disconnection and fuse protection in one device, ensuring safety and reliability.
• Versatility: Suitable for a wide range of applications, providing flexibility in electrical system design.
• Durability: High-quality construction ensures long-lasting performance even in harsh environments.
• Safety: Enhanced safety features, including electrical isolation and lockable handles, ensure safe operation and maintenance.
• Ease of Use: Simple installation and clear fuse status indicators facilitate maintenance and reduce downtime.

Conclusion

The TeSys GS switch disconnector fuses from Schneider Electric offer a reliable and versatile solution for protecting and isolating electrical circuits. With their robust construction, wide range of ratings, and comprehensive protection features, these devices are essential for ensuring the safety and reliability of industrial and commercial electrical installations. By combining the functions of a switch disconnector and a fuse, TeSys GS switch disconnector fuses provide effective short-circuit and overload protection, making them a valuable addition to any electrical system.
