The Acti 9 Smartlink and PowerTag Wiser Energy are advanced solutions from Schneider Electric designed to enhance the management and monitoring of electrical distribution systems. These technologies offer improved energy efficiency, better control, and real-time insights into energy usage.

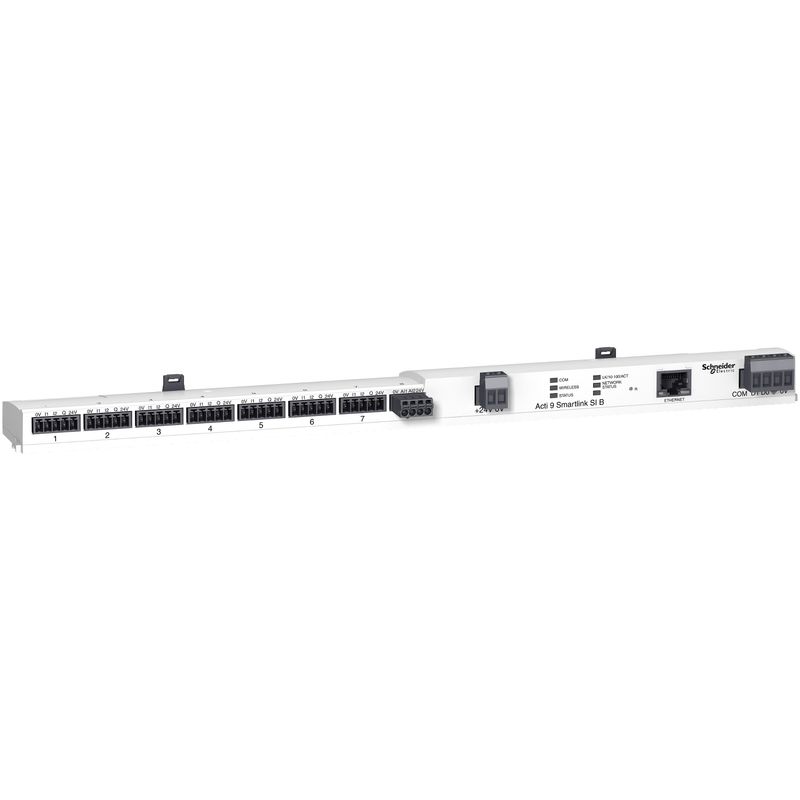

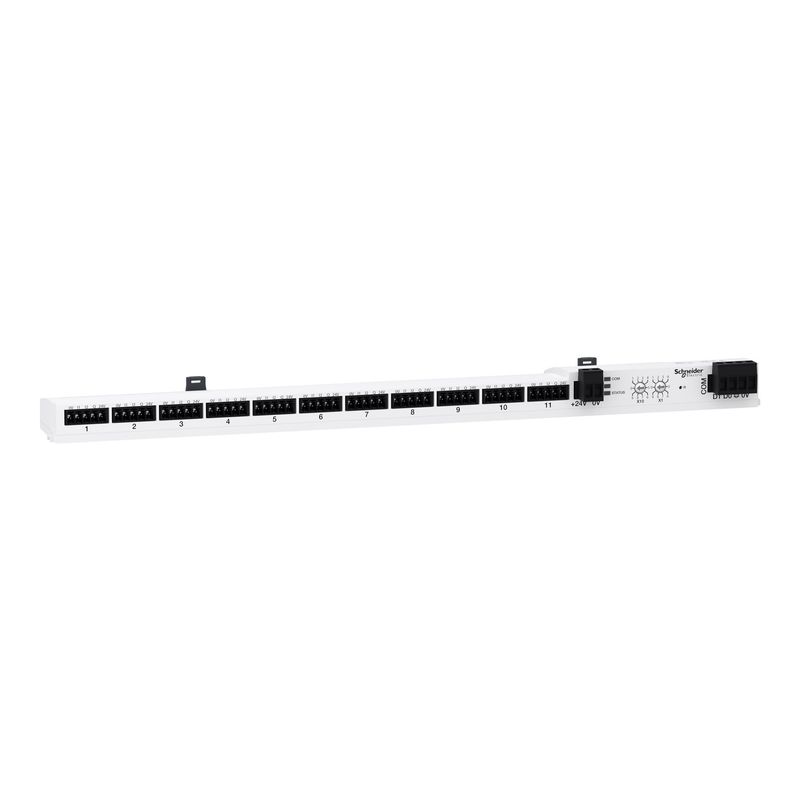

Acti 9 Smartlink

Acti 9 Smartlink is a communication module that enables the remote monitoring and control of Acti 9 circuit breakers and other devices. It serves as a gateway between the electrical distribution system and building management systems (BMS), allowing for seamless integration and enhanced functionality.

Key Features

1. Remote Monitoring and Control:
   • Provides real-time monitoring of electrical parameters such as current, voltage, and power.
   • Enables remote control of circuit breakers (e.g., turning on/off, resetting).
2. Data Logging and Analysis:
   • Records energy consumption data for detailed analysis.
   • Helps in identifying energy-saving opportunities and optimizing energy usage.
3. Integration with Building Management Systems:
   • Compatible with various communication protocols, including Modbus, Ethernet, and BACnet.
   • Facilitates easy integration with existing BMS for centralized control and monitoring.
4. Scalability:
   • Can be used in small, medium, and large installations.
   • Supports multiple devices and expands as the system grows.

Applications

• Commercial buildings for energy management and operational efficiency.
• Industrial facilities for process optimization and downtime reduction.
• Infrastructure projects like hospitals and data centers for reliable power management.

PowerTag Wiser Energy

PowerTag Wiser Energy is a wireless energy sensor designed to provide real-time energy monitoring at the circuit level. It helps users gain detailed insights into their energy consumption, enabling better energy management and cost savings.

Key Features

1. Real-Time Energy Monitoring:
   • Measures energy consumption at the circuit level with high accuracy.
   • Provides real-time data on energy usage, power, voltage, and current.
2. Wireless Communication:
   • Uses wireless technology to transmit data to the monitoring system.
   • Simplifies installation without the need for extensive wiring.
3. Integration with Wiser Energy System:
   • Compatible with Schneider Electric's Wiser Energy system for comprehensive energy management.
   • Allows for integration with smart home systems and IoT platforms.
4. User-Friendly Interface:
   • Accessible via mobile apps and web interfaces for easy monitoring.
   • Provides customizable alerts and notifications for unusual energy usage.

Applications

• Residential homes for monitoring and managing household energy consumption.
• Commercial buildings to track energy usage of individual circuits and optimize efficiency.
• Industrial facilities for detailed monitoring of machinery and equipment energy use.

Combined Benefits

When used together, Acti 9 Smartlink and PowerTag Wiser Energy offer a powerful solution for energy management and electrical distribution control:

1. Enhanced Visibility: Provides comprehensive real-time data on energy usage across the entire electrical system.
2. Improved Efficiency: Identifies inefficiencies and helps in optimizing energy consumption.
3. Increased Reliability: Enables proactive maintenance and reduces downtime with remote monitoring and control.
4. Scalable Solutions: Adaptable to various sizes and types of installations, from residential homes to large industrial plants.

For more detailed technical specifications, installation guides, and user manuals, you can refer to the product documentation provided by Schneider Electric or visit their official website.
