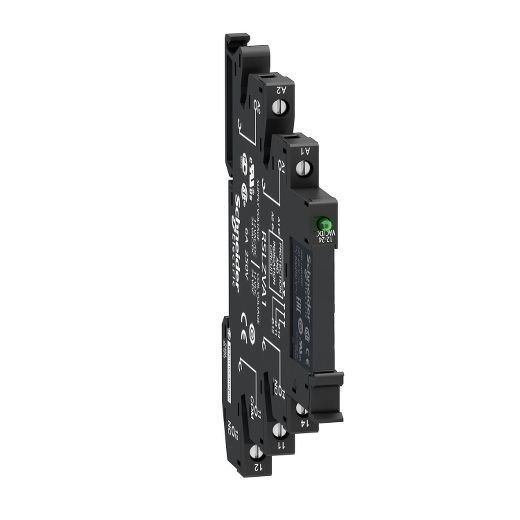

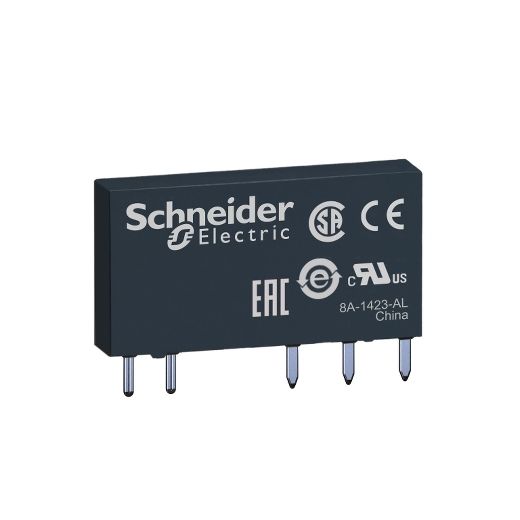

RSL Interface Relays

RSL interface relays are a part of Schneider Electric’s Harmony range, designed to provide efficient and reliable interfacing between control systems and field devices. These relays are essential components in automation and control applications, allowing low-power control signals to operate higher power loads safely and effectively.

Features of RSL Interface Relays

1. Compact Design
   • Space-Saving: Designed to be compact, these relays save space in control panels, making them ideal for applications with limited space.
   • DIN Rail Mounting: Easily mounted on standard DIN rails for convenient installation and maintenance.
2. High Performance
   • Reliable Switching: Provides dependable switching performance with a high degree of accuracy.
   • Fast Response Time: Ensures quick and precise control in automation systems.
3. Versatility
   • Wide Range of Applications: Suitable for various applications, including industrial automation, HVAC systems, and building management.
   • Multiple Contact Configurations: Available with different contact configurations (e.g., SPDT, DPDT) to suit diverse control requirements.
4. Durability
   • Robust Construction: Built to withstand harsh industrial environments, ensuring long-term reliability.
   • High Electrical Endurance: Designed to handle numerous switching cycles without degradation.
5. Safety and Standards Compliance
   • Isolation: Provides electrical isolation between the control side and the load side, enhancing safety.
   • Standards Compliance: Meets international standards for safety and performance, ensuring compatibility and reliability.

Applications of RSL Interface Relays

1. Industrial Automation
   • Control Systems: Interface between PLCs (Programmable Logic Controllers) and field devices such as motors, valves, and sensors.
   • Signal Isolation: Protects sensitive control circuits from high-power load disturbances.
2. HVAC Systems
   • Control of HVAC Components: Operates various HVAC components like fans, compressors, and actuators.
   • System Integration: Facilitates integration of HVAC systems with building management systems (BMS).
3. Building Management
   • Lighting Control: Used in automated lighting systems to switch lights on and off based on control signals.
   • Access Control: Interfaces with access control systems to manage doors, gates, and security barriers.
4. Process Control
   • Machinery Operation: Controls machinery and equipment in process industries, ensuring precise operation and safety.
   • Monitoring and Alarming: Triggers alarms and notifications based on specific conditions or thresholds in the process.

Advantages of Using RSL Interface Relays

• Enhanced Control: Provides precise control over high-power loads using low-power control signals.
• Increased Safety: Electrical isolation and robust construction improve safety and reliability.
• Cost-Effective: Compact design and versatile functionality make these relays a cost-effective solution for various applications.
• Easy Installation: DIN rail mounting and standardized configurations simplify installation and maintenance.

Conclusion

RSL interface relays are essential components in modern automation and control systems, offering reliable performance, versatility, and safety. Their compact design and high endurance make them suitable for a wide range of applications, including industrial automation, HVAC, building management, and process control. By providing precise control and electrical isolation, RSL interface relays help enhance the efficiency, safety, and reliability of control systems.
