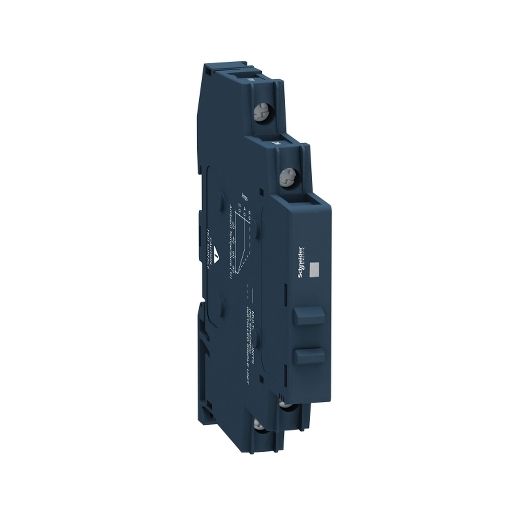

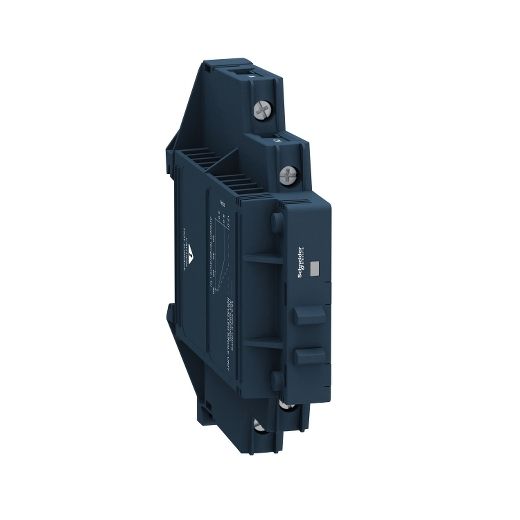

The Schneider Electric SSM1 Solid State Relay is part of the Zelio range, known for its compact design, reliability, and high-performance characteristics. These solid-state relays are designed to control various loads without mechanical contacts, making them ideal for applications requiring frequent switching and long operational life.

Key Features

• Compact Design: Slim module suitable for installations where space is limited.
• Solid-State Technology: No moving parts, ensuring high reliability and long life.
• High Switching Frequency: Ideal for applications requiring frequent on/off switching.
• Low Power Consumption: Efficient operation with minimal power loss.
• Noise-Free Operation: Silent operation compared to electromechanical relays.
• DIN Rail Mounting: Easy and quick installation on standard DIN rails.

Example Model: SSM1A120BD

• Control Voltage: 4 to 32 VDC
• Load Voltage: 48 to 660 VAC
• Load Current: 1 to 90 A (depending on model)
• Switching Type: Zero-crossing switching
• Isolation Voltage: 4000 V
• Mounting: DIN rail or panel mount
• Dimensions: Slim and compact design for space-saving installations

Applications

• Industrial Automation: Controls machinery and equipment with high switching frequency.
• Heating Systems: Manages heating elements in industrial and commercial applications.
• Lighting Control: Efficiently controls lighting systems with minimal wear and tear.
• Motor Control: Suitable for controlling motors in various industrial processes.
• Home Automation: Integrates with smart home systems for reliable load control.

Benefits

• Long Life: Solid-state design ensures a longer operational life with no mechanical wear.
• High Reliability: Consistent performance with minimal maintenance requirements.
• Fast Switching: Capable of handling high switching frequencies, making it suitable for demanding applications.
• Energy Efficient: Low power consumption helps in reducing overall energy costs.
• Easy Installation: Compact size and DIN rail mounting facilitate quick and easy installation.

Additional Features

• Overvoltage Protection: Protects the relay and connected equipment from voltage spikes.
• LED Indicators: Provides visual indication of the relay status for easy monitoring.
• Temperature Range: Designed to operate in a wide range of temperatures, ensuring reliability in different environments.
• Safety Compliance: Meets international standards for safety and performance.

The Schneider Electric SSM1 Solid State Relay offers a reliable, efficient, and compact solution for controlling various loads in industrial, commercial, and residential applications.
