Single phase transformer
Modicon ABT7 and ABL6 refer to single-phase transformers manufactured by Schneider Electric, designed for various industrial applications. These transformers are used to convert electrical power from a 230V primary voltage to a 400V secondary voltage, with power ratings ranging from 25 VA to 2500 VA. Here’s a detailed overview of these transformers:

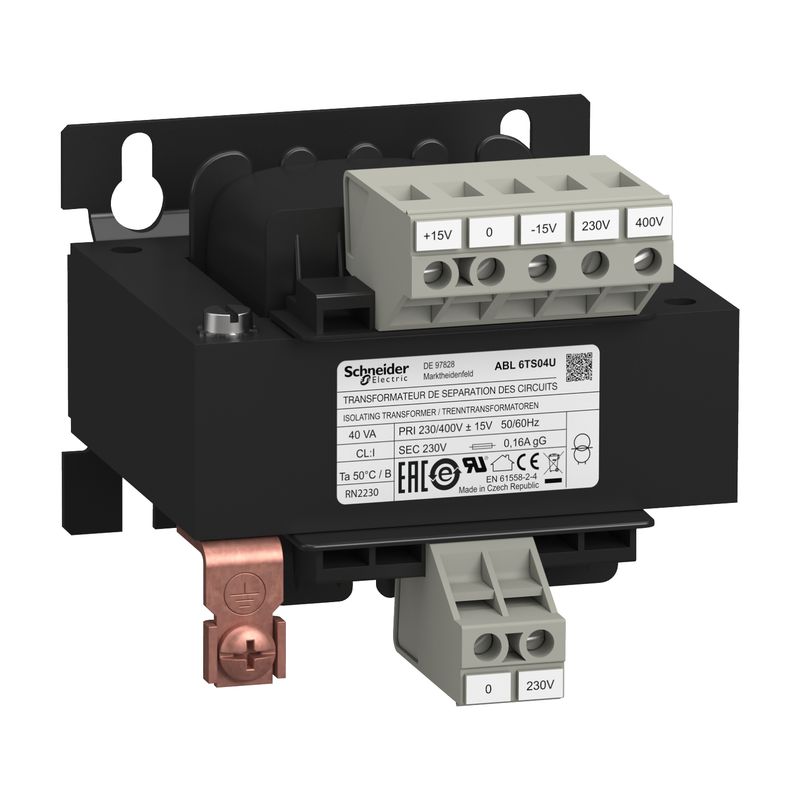

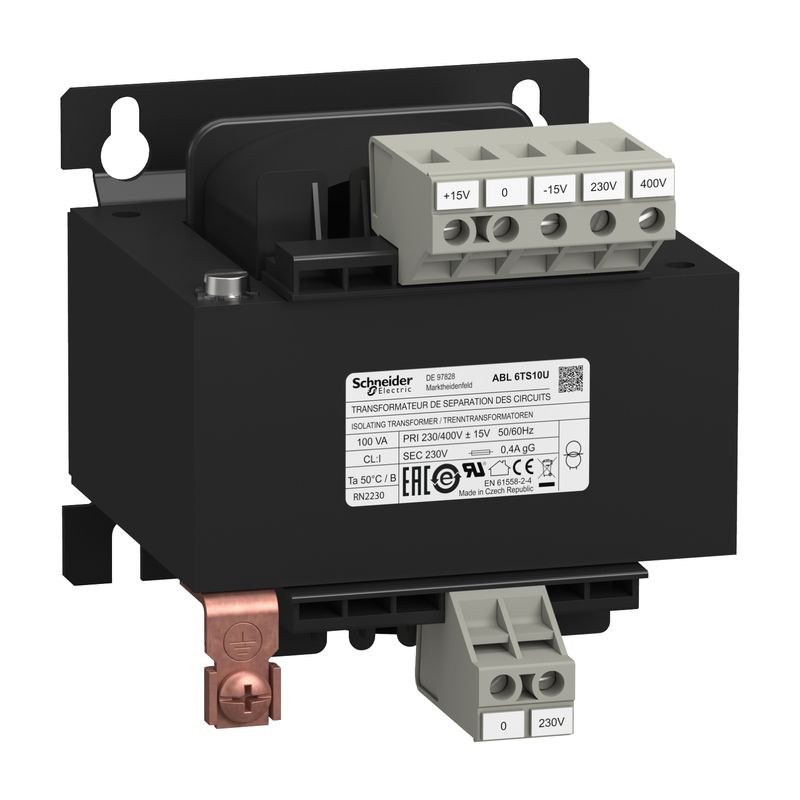

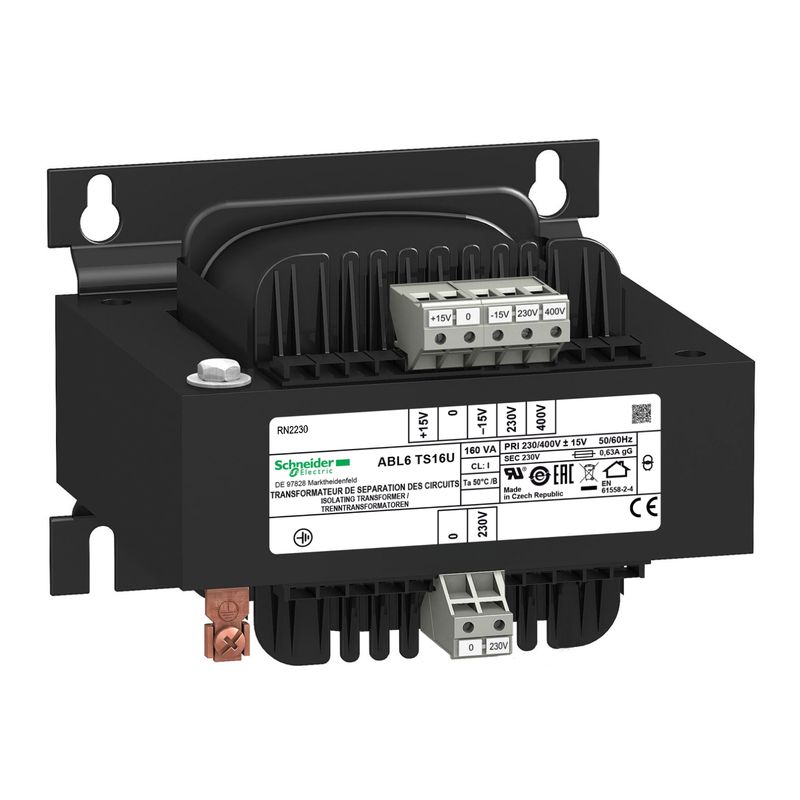

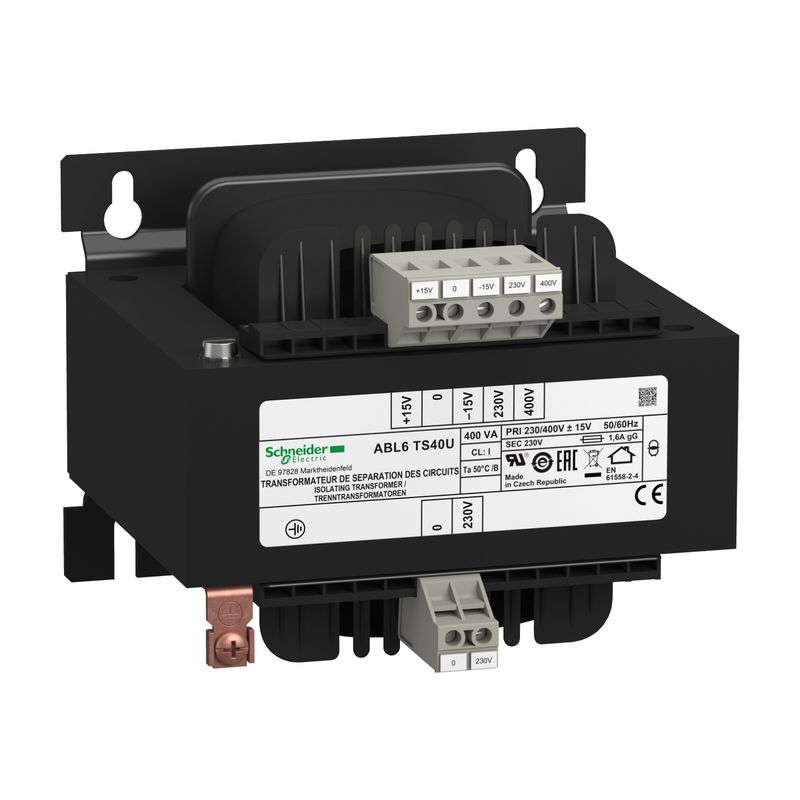

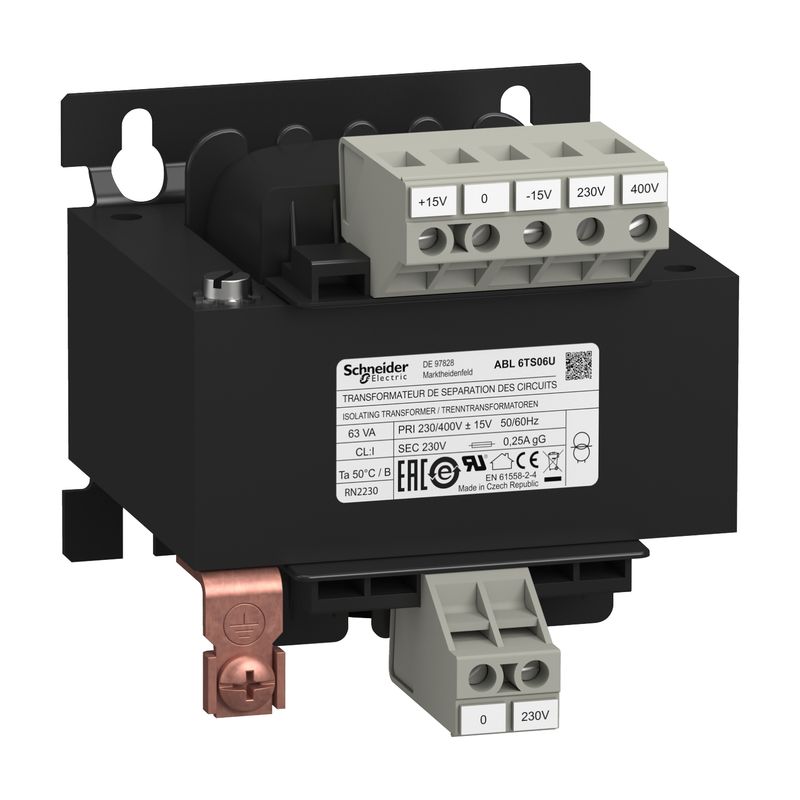

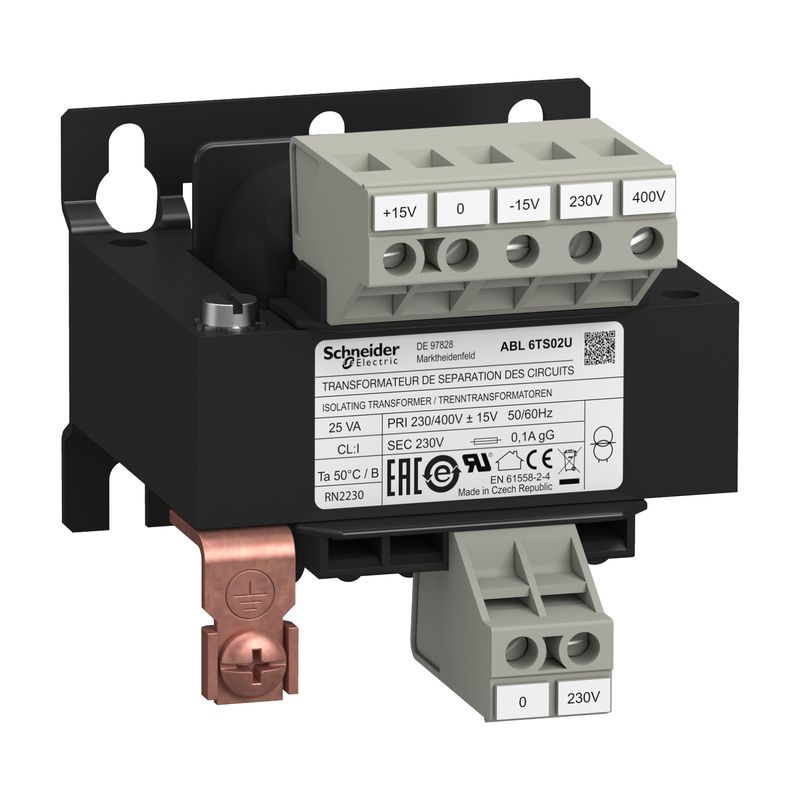

Modicon ABT7 and ABL6 Single Phase Transformers
Features
- Voltage Conversion: Converts primary voltage of 230V to secondary voltage of 400V.
- Power Ratings: Available in power ratings from 25 VA to 2500 VA.
- Single-Phase Operation: Designed for single-phase electrical systems.
- High Efficiency: Optimized for energy efficiency and minimal heat generation.
- Protection: Equipped with thermal protection and fuses for safety and durability.
- Mounting Options: Can be mounted in various orientations, making them adaptable to different installation requirements.
- Compact Design: Space-efficient design suitable for use in confined spaces.
- Compliance: Adheres to international standards and certifications for electrical safety and performance.
Benefits
- Versatile Applications: Suitable for a wide range of industrial and commercial applications, including control panels, machinery, and equipment requiring voltage conversion.
- Energy Efficiency: Reduces energy losses, thereby improving the overall efficiency of electrical systems.
- Safety: Enhanced safety features to protect against overloads and short circuits.
- Durability: Robust construction ensures long-lasting performance in demanding environments.
- Ease of Installation: Designed for straightforward installation and maintenance.
Common Applications
- Industrial Machinery: Powers machinery that requires a specific voltage for operation.
- Control Panels: Provides the necessary voltage for control panel components.
- Lighting Systems: Used in lighting systems that operate at different voltages.
- HVAC Systems: Powers HVAC equipment that requires specific voltage levels.
- Renewable Energy Systems: Utilized in renewable energy applications such as solar and wind power systems.
Technical Specifications
- Primary Voltage: 230V
- Secondary Voltage: 400V
- Power Rating Range: 25 VA to 2500 VA
- Frequency: 50/60 Hz
- Insulation Class: High-quality insulation materials for safety and reliability.
- Thermal Protection: Built-in thermal protection to prevent overheating.
- Mounting: DIN rail or panel mounting options available.
Installation and Usage
- Mounting: Secure the transformer using the provided mounting options. Ensure it is installed in a well-ventilated area to prevent overheating.
- Wiring: Connect the primary side to the 230V power source and the secondary side to the load requiring 400V. Follow the wiring diagram provided by the manufacturer.
- Protection: Check and install any necessary fuses or circuit breakers as recommended.
- Testing: After installation, test the transformer to ensure it is operating correctly and providing the correct output voltage.
- Maintenance: Periodically inspect the transformer for any signs of wear or damage. Ensure connections are tight and free of corrosion.
Summary
Modicon ABT7 and ABL6 single-phase transformers are reliable and efficient solutions for converting 230V primary voltage to 400V secondary voltage in industrial and commercial settings. With power ratings from 25 VA to 2500 VA, these transformers are versatile, durable, and equipped with essential safety features to ensure long-lasting performance. Suitable for applications ranging from machinery to control panels, they are designed for easy installation and maintenance, making them a valuable component in any electrical system.
