The Acti 9 iEM2000 series, also manufactured by Schneider Electric, is another range of energy meters designed for measuring and monitoring electrical energy consumption. These meters are suitable for various applications including residential, commercial, and industrial settings. Below are some key features, specifications, and applications of the Acti 9 iEM2000 series:

Key Features:

1. Energy Measurement: The iEM2000 series meters provide accurate measurement of electrical energy consumption, primarily focusing on kWh.
2. Compact Design: These meters are compact and designed for DIN rail mounting, making them easy to install in standard electrical enclosures.
3. LCD Display: The meters are equipped with an LCD display that shows real-time energy consumption data, which makes monitoring straightforward.
4. Ease of Use: Designed for straightforward installation and operation, suitable for applications that require basic energy monitoring.
5. Communication (Optional): Some models in the iEM2000 series offer communication capabilities such as pulse output for integration with energy management systems.

Specifications:

• Voltage Measurement Range: Typically, 230V (single-phase) or 400V (three-phase).
• Current Measurement Range: Direct measurement up to 63A.
• Frequency: 50/60 Hz.
• Accuracy: Class 1 for active energy measurement.
• Operating Temperature: -10°C to +55°C.
• Power Supply: Self-powered from the measured voltage.

Applications:

1. Residential: Ideal for tracking energy consumption in homes and small residential buildings.
2. Commercial: Suitable for monitoring energy use in small to medium-sized commercial establishments.
3. Industrial: Can be used in small industrial settings where basic energy consumption monitoring is required.
4. Sub-Metering: Effective for sub-metering applications in multi-tenant buildings to measure individual tenant energy usage.

Popular Models in the Series:

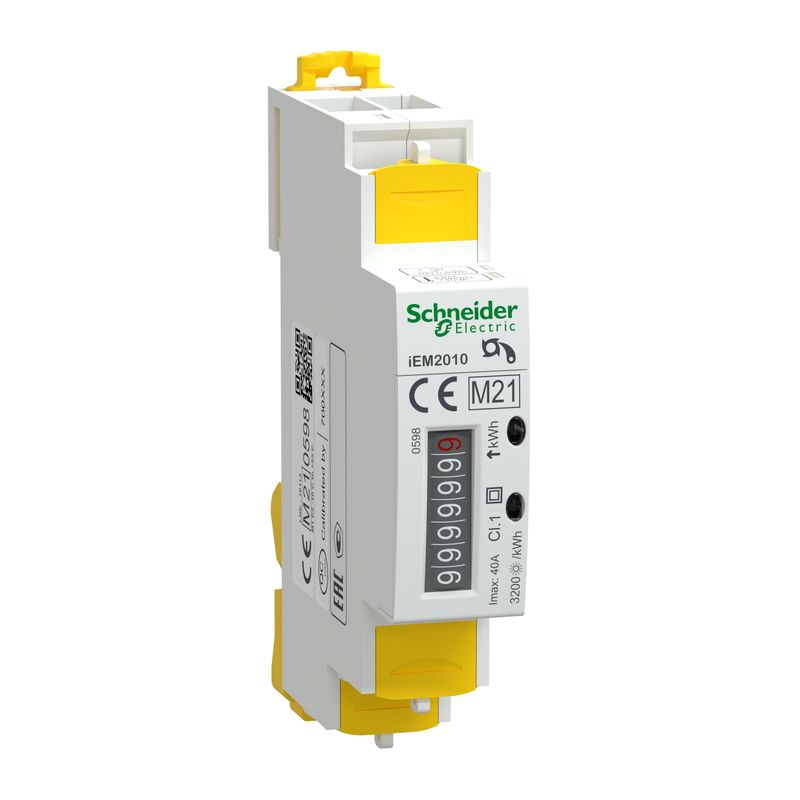

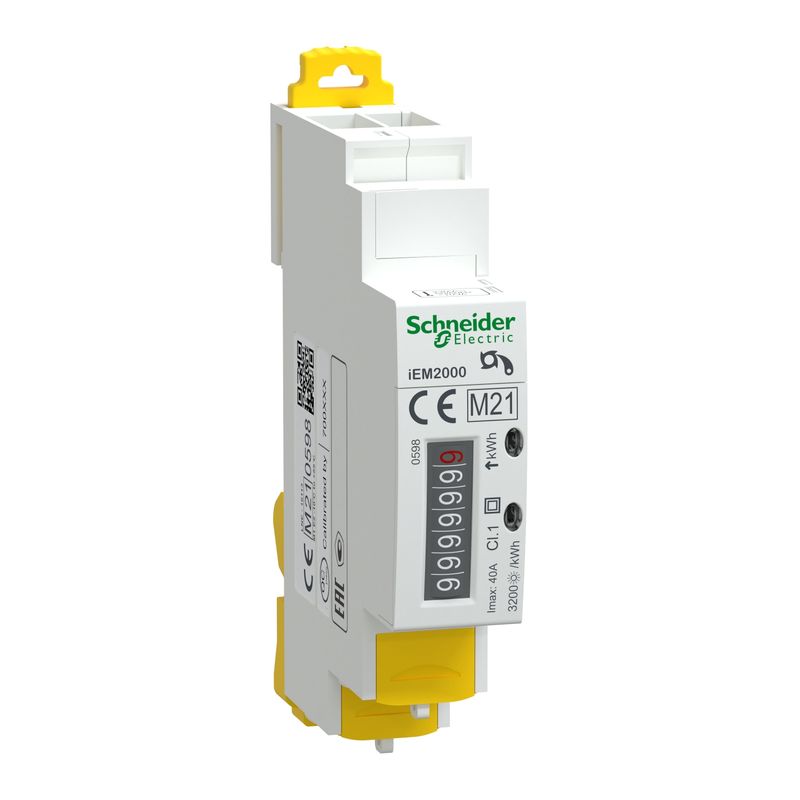

• iEM2000: Basic energy meter for single-phase applications, measuring active energy (kWh).
• iEM2010: Advanced single-phase energy meter with pulse output for communication.
• iEM2100: Three-phase energy meter measuring active energy (kWh).

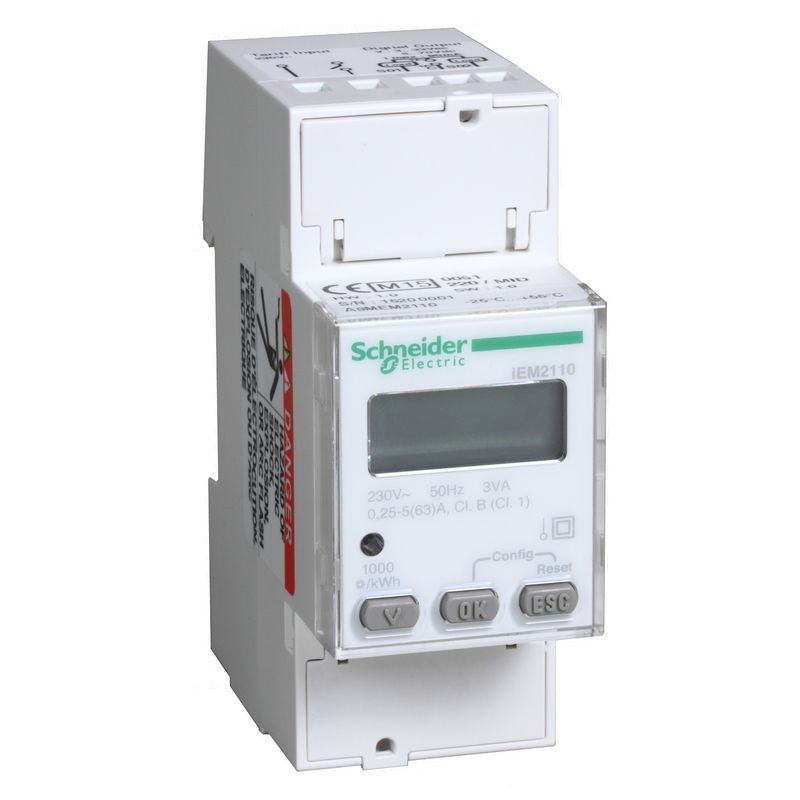

• iEM2110: Three-phase energy meter with pulse output for communication.

Usage and Installation:

• Installation: The iEM2000 series meters are designed for DIN rail mounting. They are compact and can be easily installed in standard electrical distribution boards.
• Wiring: Proper wiring according to the installation guide is crucial to ensure accurate measurements. The meters typically require direct connection to the voltage supply and load.

Compliance and Standards:

• Standards: The iEM2000 series meters comply with international standards such as IEC 62053-21 for active energy measurement.
• Certification: Certified for use in various regions, ensuring they meet local regulations and standards for energy measurement.

For detailed technical information, installation instructions, and user guides, referring to the product datasheets and manuals provided by Schneider Electric is recommended. These documents provide comprehensive details on each model, including wiring diagrams, technical specifications, and operational guidelines.
