Single Function Timer

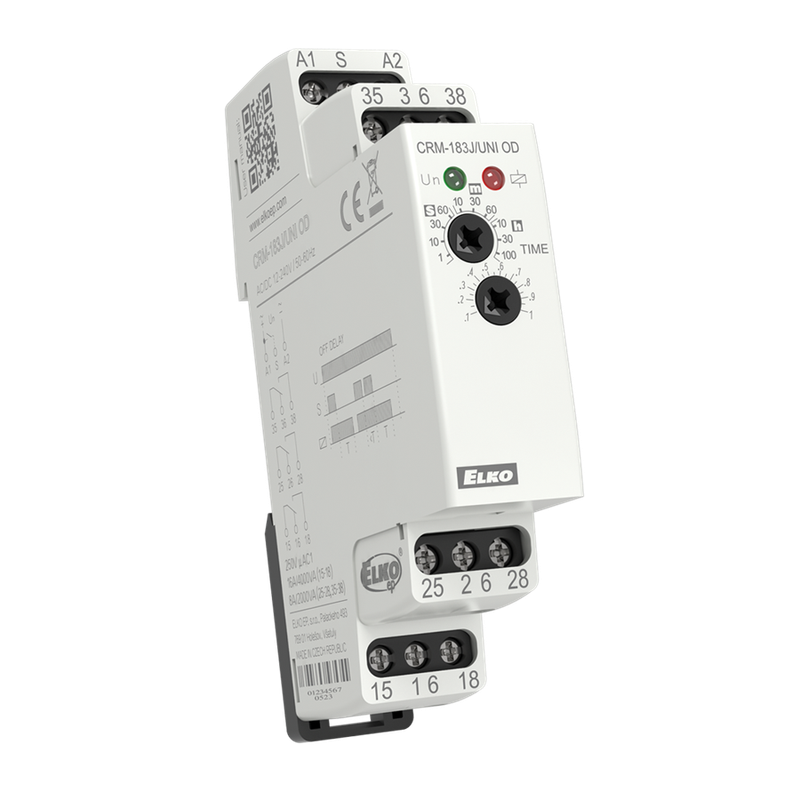

The ELKO EP CRM-183J single-function time relay is designed for specific timing applications where a predetermined function is required. Here are the detailed specifications and features of the CRM-183J:
Key Features
- Function Options: Offers a choice of four types:
- ZR: On-delay timing function
- ZN: Off-delay timing function
- BL: Interval timing function
- OD: One-shot delay timing function
- Control Input: Allows the use of a control input to inhibit the ongoing delay, providing flexibility in timing control.
- LED Indication: Multifunction red LED flashes or shines to indicate the operating status of the relay.
- Output Contacts:
- Type: 3x changeover (CO)
- Rating: 8 A switching capacity, suitable for controlling various electrical loads.
- Housing: Compact 1-MODULE design, suitable for standard DIN rail mounting.
- Supply Voltage:
- Universal AC/DC supply voltage range: 12V to 240V (AC 50 – 60Hz).
- Time Range: Offers a wide timing range from 0.1 seconds to 100 hours, adjustable in 10 ranges, to accommodate diverse application requirements.
Technical Parameters
- Output: 3x changeover (CO), 8 A switching capacity
- Housing: 1-MODULE (standard DIN rail mounting)
- Supply Voltage: AC/DC 12 – 240V (AC 50 – 60Hz)
- Time Range: 0.1 seconds to 100 hours, adjustable in 10 ranges
- Control Input: Allows for pause or inhibition of ongoing delay using a control input
- LED Indication: Red LED for status indication
Applications
- Industrial Automation: Precise timing control in manufacturing processes.
- Control and Regulation: Timing functions for HVAC systems, lighting controls, and pump operations.
- Household Installations: Automated timing for home appliances and lighting.
- Universal Automation: Suitable for various automation, control, and regulation applications requiring specific timing functions.
Benefits
- Function Specificity: Designed for applications where specific timing functions are required.
- Versatility: Offers four different timing functions to meet diverse application needs.
- Reliability: High switching capacity and durable construction ensure long-term reliability.
- Ease of Installation: Compact design with DIN rail mounting for easy integration into control panels.
The ELKO EP CRM-183J single-function time relay provides reliable and precise timing control for automation, control, and regulation applications. If you have further questions or need more information, feel free to ask!
