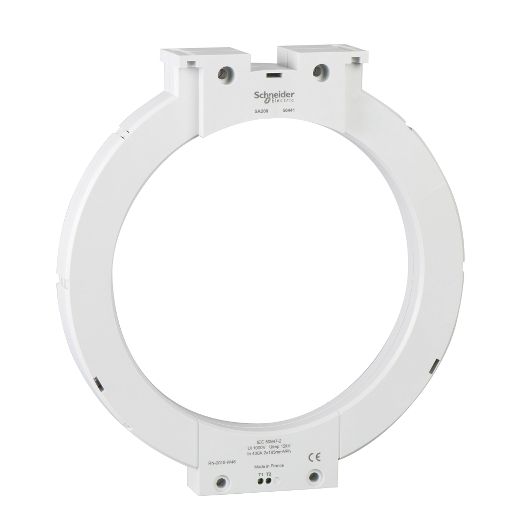

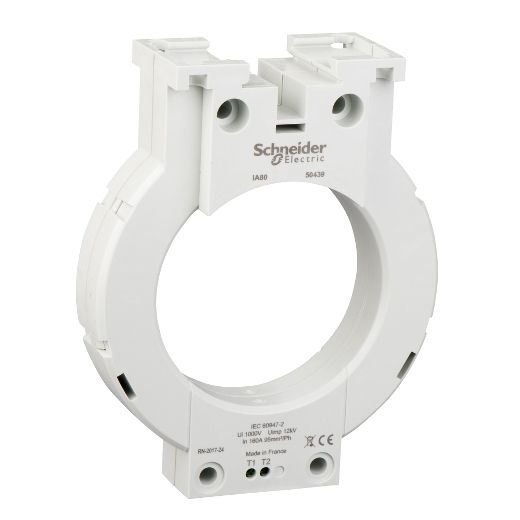

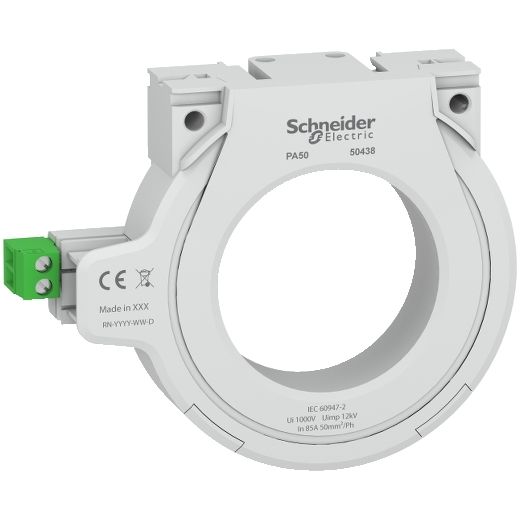

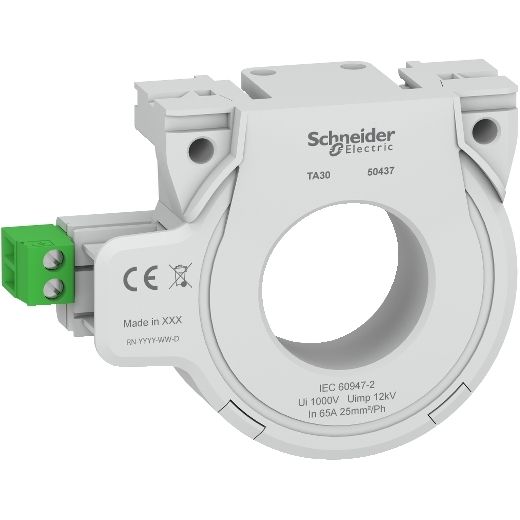

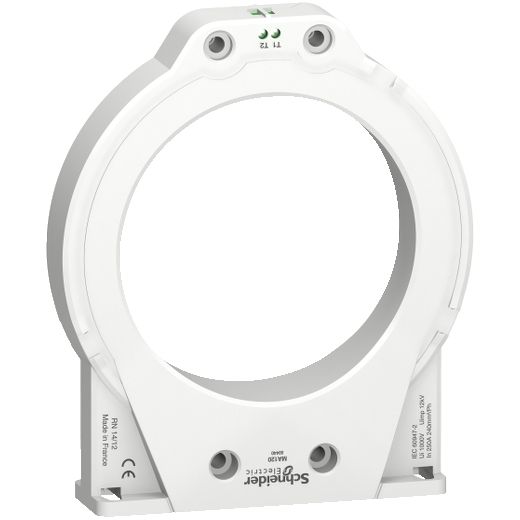

A closed toroid for residual current protection is a component typically used in residual current devices (RCDs) or residual current circuit breakers (RCCBs). Here's an overview of its function and purpose:

Function and Purpose:

1. Residual Current Detection: The closed toroid is designed to detect residual currents, which are imbalances between the current flowing in the live and neutral conductors of an electrical circuit. These imbalances can occur due to leakage currents caused by faults or insulation breakdown.
2. Toroidal Shape: The closed toroid is usually toroidal (ring-shaped) in design, with a hole in the center through which the live and neutral conductors pass. This design allows the toroid to sense the magnetic field generated by the current flowing through the conductors.
3. Magnetic Induction: When a residual current flows through the conductors, it generates a magnetic field around them. The closed toroid detects this magnetic field and produces a corresponding signal, which is then processed by the RCD or RCCB.
4. Triggering Protection Mechanism: In the event of a residual current fault, the signal produced by the closed toroid triggers the protection mechanism of the RCD or RCCB. This mechanism quickly disconnects the circuit from the power supply to prevent electric shocks or fire hazards.
5. Accuracy and Sensitivity: Closed toroids are designed to be highly accurate and sensitive to small residual currents. This ensures that even minor faults or leakages are detected promptly, providing effective protection against electric shock and electrical fires.
6. Integration: Closed toroids are integrated into the internal mechanism of RCDs or RCCBs. They are typically connected to electronic circuits or relay systems that monitor the signal produced by the toroid and activate the protection mechanism when necessary.
7. Compliance and Safety: Closed toroids used in RCDs or RCCBs are designed to comply with relevant safety standards and regulations. They undergo rigorous testing to ensure their performance and reliability in protecting electrical installations and equipment.

Overall, the closed toroid for residual current protection plays a critical role in the safety of electrical systems by detecting and responding to residual currents, thereby minimizing the risk of electric shock and electrical fires.
