The Acti 9 range from Schneider Electric includes a variety of DIN rail timer and power relay modules designed for automated system control, monitoring, and changeover circuit control. These modules are integral to automation processes in various applications, ensuring reliability, precision, and ease of use.

Key Products and Features

1. DIN Rail Timers:

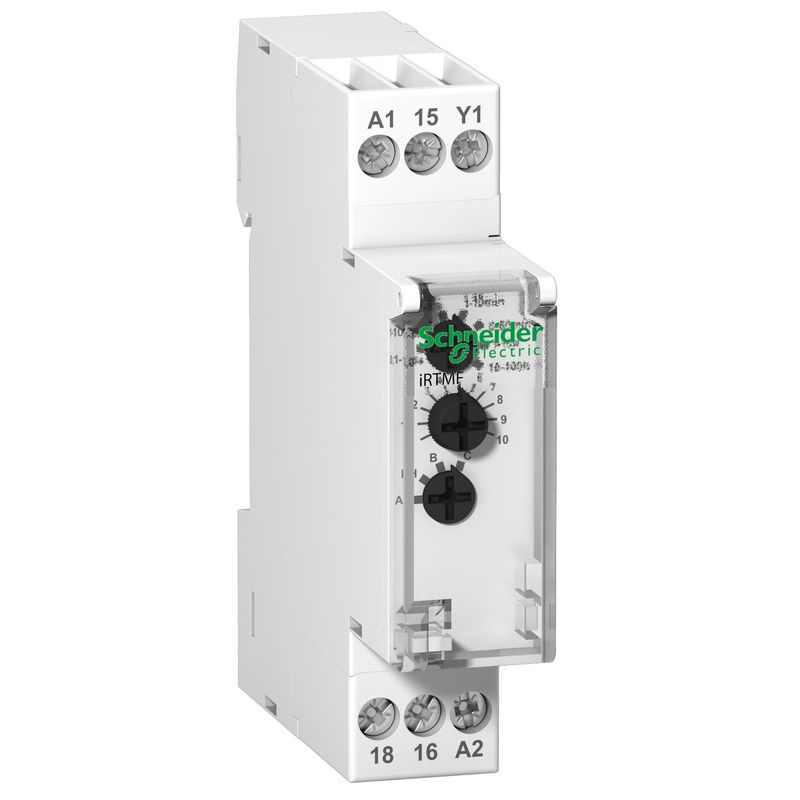

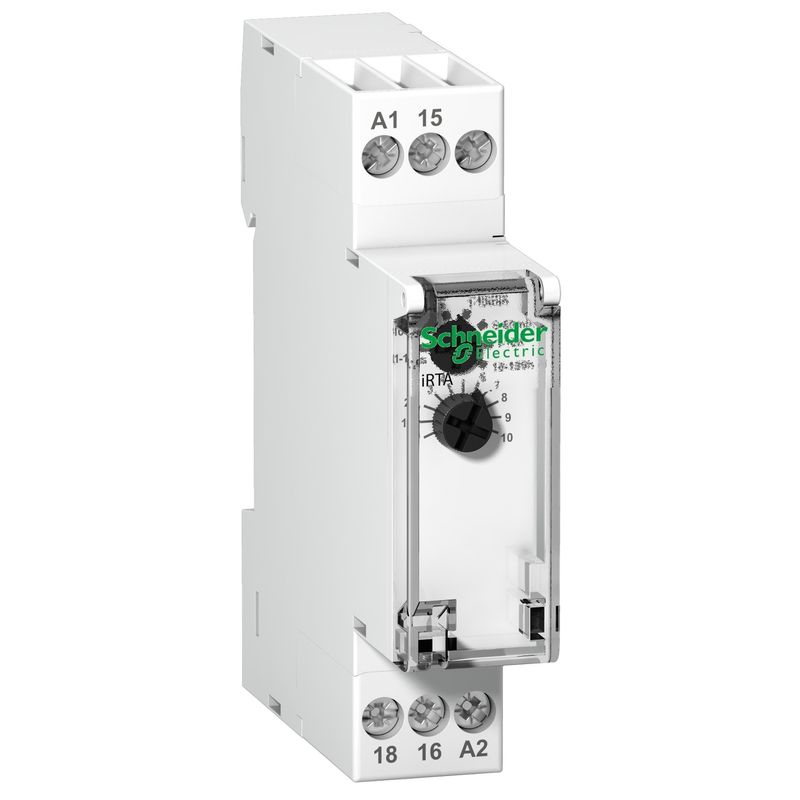

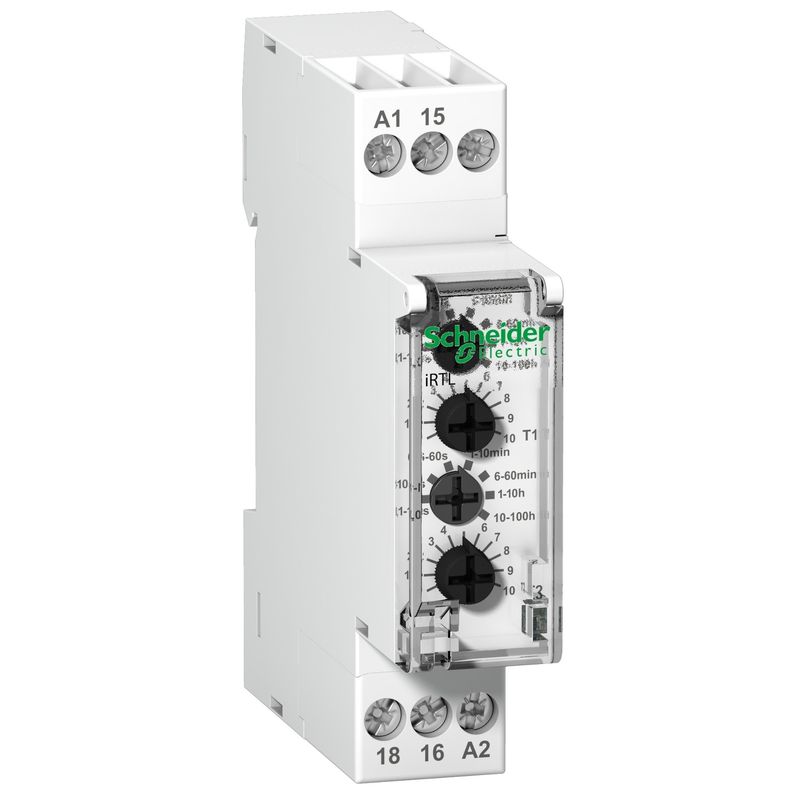

   • iCT+ (iC60 and iCT): These are multi-functional digital timers that can be used for time-based control in electrical circuits. They offer a variety of timing functions such as delayed ON, delayed OFF, cyclic ON/OFF, and more.
   • Benefits:
     • Easy to program and set up.
     • Precise time control with digital accuracy.
     • Wide range of timing functions to suit various applications.
2. Power Relay Modules:
   • iTR (Power Relays): These modules are designed to control higher power circuits with low power signals. They act as an interface between control devices (like PLCs) and load circuits.
   • Benefits:
     • High switching capacity.
     • Compact design for easy installation on DIN rails.
     • Reliable operation with long mechanical and electrical life.
3. Automated System Monitoring:
   • iSW (Switch Disconnectors): These devices are used for monitoring and ensuring safe disconnection of circuits. They provide visible isolation and can be locked in the OFF position for maintenance.
   • Benefits:
     • Clear indication of ON/OFF status.
     • Enhanced safety during maintenance.
     • Robust and reliable for various industrial applications.
4. Changeover Circuit Control:
   • iC60 RCBOs (Residual Current Circuit Breaker with Overcurrent Protection): These devices provide both overcurrent and earth fault protection, ensuring seamless changeover and protection in electrical circuits.
   • Benefits:
     • Combined protection in a single unit.
     • Space-saving design.
     • High reliability and fast response to faults.

Applications

• Industrial Automation: Ensuring precise control and timing in automated production lines.
• Commercial Buildings: Automating lighting, HVAC systems, and other electrical equipment for energy efficiency.
• Residential Automation: Enhancing convenience and safety in home automation systems.
• Infrastructure: Reliable control and monitoring in critical infrastructure like hospitals, data centers, and transportation systems.

Advantages of Acti 9 Modules

• Modularity: Easy to integrate into existing DIN rail setups.
• Safety: Compliant with international safety standards, ensuring reliable protection.
• Efficiency: Designed to optimize energy use and improve overall system performance.
• User-Friendly: Simplified installation and programming for quick deployment.

For specific technical details, installation guidelines, and application notes, you can refer to the product datasheets and manuals provided by Schneider Electric on their official website.
