The Telemecanique XZCP series pre-wired connectors are designed for use with sensors and other industrial automation equipment. These connectors provide a reliable and convenient solution for wiring connections, ensuring robust and secure connections in various industrial environments.

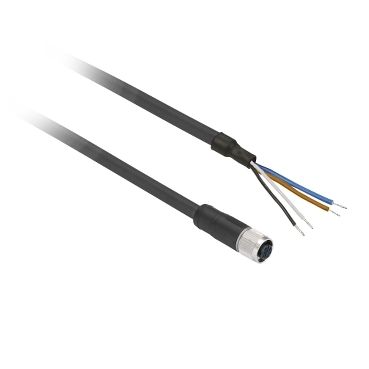

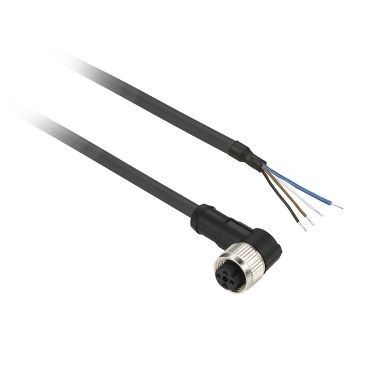

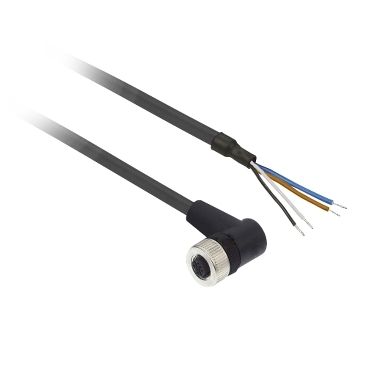

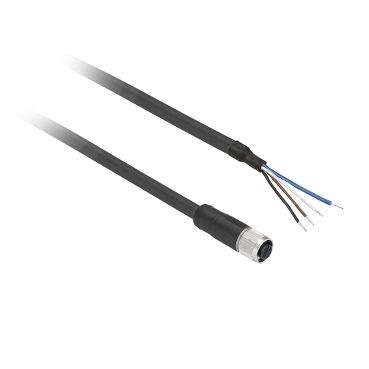

Telemecanique XZCP Series Pre-Wired Connectors

Key Features:

1. Pre-Wired for Convenience:
   • Available pre-wired with cables of various lengths, simplifying the installation process and saving time.
   • Reduces the need for manual wiring and minimizes the potential for wiring errors.
2. High-Quality Construction:
   • Built with durable materials to withstand harsh industrial environments.
   • Ensures long service life and reliable performance.
3. Robust Environmental Protection:
   • Typically rated with high ingress protection levels, such as IP65, IP67, or higher.
   • Resistant to dust, water, oil, and other environmental contaminants, making them suitable for tough conditions.
4. Various Connector Types:
   • Available in different connector types and pin configurations to suit various applications.
   • Common types include M8, M12, and other standard industrial connectors.
5. Compatibility:
   • Designed to be compatible with Telemecanique sensors and other industrial devices.
   • Ensures secure and reliable connections for a wide range of applications.

Common Applications:

• Industrial Automation: Connecting sensors, actuators, and other devices in automated systems.
• Machine Tools: Providing reliable connections in CNC machines, presses, and other machinery.
• Robotics: Ensuring secure and flexible connections in robotic systems.
• Conveyor Systems: Facilitating connections in material handling and conveyor systems.
• Packaging Equipment: Used in packaging machines for reliable sensor connections.

Technical Specifications:

• Cable Lengths: Available in various lengths, typically ranging from 0.5 meters to 10 meters or more.
• Connector Types: Includes M8, M12, and other standard connectors.
• Pin Configurations: Various pin configurations are available to meet different application needs (e.g., 3-pin, 4-pin, 5-pin).
• Ingress Protection: High IP ratings (e.g., IP65, IP67) for protection against dust and water.
• Operating Temperature Range: Suitable for a wide range of operating temperatures, ensuring reliability in different environmental conditions.

Installation and Maintenance:

• Easy Installation: Pre-wired connectors reduce installation time and effort. Simply connect the pre-wired ends to the corresponding devices.
• Secure Connections: Ensure all connections are securely tightened to maintain reliable operation.
• Maintenance: Minimal maintenance required due to robust design. Regular inspection of connections can ensure continued reliability.

Selection Guide:

When selecting a specific XZCP pre-wired connector model, consider the following:

• Connector Type: Choose the appropriate connector type (e.g., M8, M12) based on your device’s requirements.
• Pin Configuration: Ensure the pin configuration matches the device’s connection requirements (e.g., 3-pin, 4-pin).
• Cable Length: Select a cable length that meets the installation needs and allows for proper routing without excess slack.
• Environmental Protection: Choose a model with the appropriate IP rating for the environmental conditions in which it will be used.
• Compatibility: Verify that the connector is compatible with the specific sensors or devices being used.

For detailed technical data, application notes, and installation instructions, refer to Telemecanique Sensors' official documentation and datasheets specific to the XZCP series. These resources provide comprehensive information to ensure the correct selection and application of the pre-wired connectors.
