Modicon power supplies are integral components in Schneider Electric's range of industrial automation solutions, providing reliable and stable power for Modicon controllers and other automation equipment. These power supplies ensure the smooth operation of automation systems by delivering consistent and clean power. Here’s an overview of Modicon power supplies, their key features, benefits, and applications:

Key Features:

1. Wide Input Voltage Range:
   • Versatile Compatibility: Supports a wide range of input voltages, making them suitable for various industrial environments.
2. High Efficiency:
   • Energy Saving: Designed for high efficiency, reducing energy consumption and operational costs.
   • Low Heat Generation: Minimizes heat production, enhancing the longevity of the power supply and the connected devices.
3. Robust Design:
   • Durability: Built to withstand harsh industrial conditions, including temperature extremes, vibrations, and electrical noise.
   • Compact Size: Space-saving design for easy integration into control panels and other confined spaces.
4. Output Stability:
   • Consistent Power Output: Provides stable and clean DC power, essential for the reliable operation of sensitive electronic equipment.
   • Overload and Short-Circuit Protection: Protects the system from electrical faults, ensuring safety and preventing damage.
5. Easy Installation and Maintenance:
   • DIN Rail Mounting: Facilitates quick and easy installation in standard electrical enclosures.
   • LED Indicators: Provide visual status updates for easy monitoring and troubleshooting.

Benefits:

• Reliability: Ensures continuous and reliable power supply, crucial for maintaining the uptime of automation systems.
• Protection: Safeguards equipment from electrical faults, reducing downtime and maintenance costs.
• Versatility: Suitable for a wide range of industrial applications due to their wide input voltage range and robust design.
• Ease of Use: Simple installation and maintenance processes save time and effort for operators.

Applications:

• Industrial Automation: Powers Modicon controllers and other automation devices, ensuring smooth operation of manufacturing processes.
• Building Management Systems: Provides reliable power for building automation controllers and related equipment.
• Process Control: Ensures stable power supply for process control systems in industries such as oil and gas, chemical processing, and water treatment.
• Renewable Energy: Supports renewable energy installations by powering control systems for solar and wind energy applications.

Example Models:

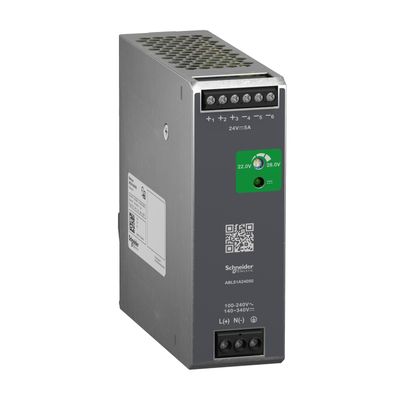

1. Modicon ABL8RPS24030: A 24V DC, 3A power supply suitable for a variety of industrial automation applications.

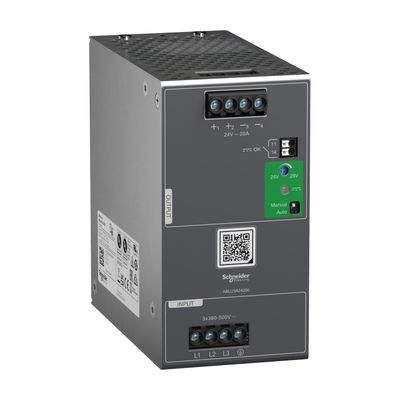

2. Modicon ABL8WPS24200: A high-efficiency 24V DC, 20A power supply designed for demanding industrial environments.
3. Modicon ABL2REM24045: A compact 24V DC, 4.5A power supply with advanced protection features.

Installation and Setup:

• Mounting: Attach the power supply to a DIN rail in the control panel.
• Wiring: Connect the input power supply lines to the designated terminals, ensuring proper grounding. Connect the output lines to the devices requiring power.
• Configuration: Adjust any necessary settings according to the specific requirements of the application.
• Testing: Power on the system and check the LED indicators for proper operation. Verify that the output voltage is within the specified range.

Overall, Modicon power supplies provide a reliable and efficient solution for powering automation and control systems in various industrial, commercial, and residential settings, contributing to the seamless operation of PLCs and associated equipment.
