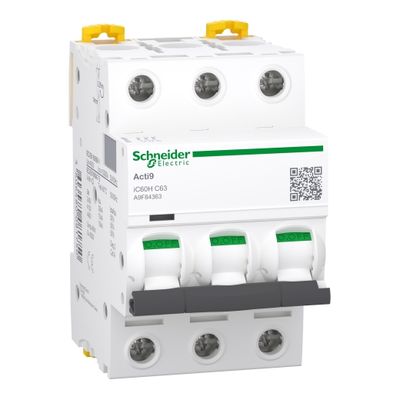

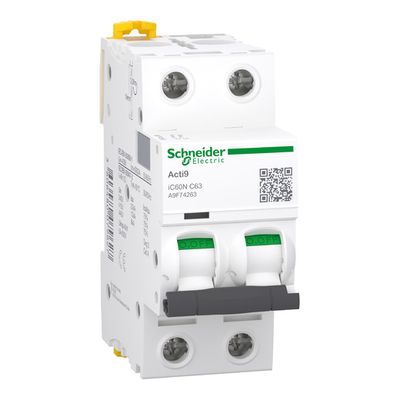

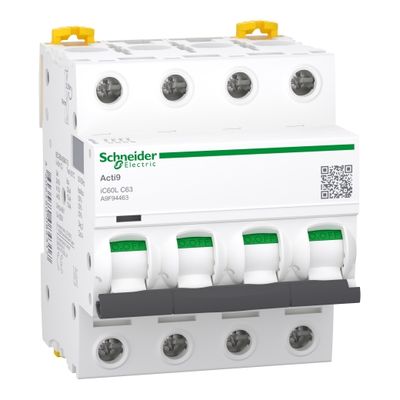

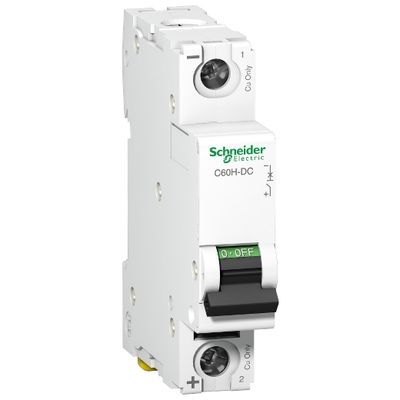

The Acti 9 miniature circuit breaker (MCB) is a product range manufactured by Schneider Electric, designed to provide reliable overcurrent protection for electrical circuits in residential, commercial, and industrial applications. Here's an overview of the Acti 9 miniature breaker:

Acti 9 Miniature Breaker Overview:

1. Compact Design: Acti 9 MCBs feature a compact design, making them suitable for installation in distribution panels, switchboards, and consumer units with limited space.
2. Overcurrent Protection: These MCBs are designed to protect electrical circuits from overcurrents, including overloads and short circuits, by quickly interrupting the flow of electricity when abnormal conditions are detected.
3. Wide Range of Current Ratings: Acti 9 MCBs are available in a wide range of current ratings, typically from a few amps up to 125 amps, allowing for protection of various electrical circuits with different load requirements.
4. Modular Design: The modular design of Acti 9 MCBs allows for easy installation, maintenance, and replacement, with snap-on mounting on DIN rails in electrical enclosures.
5. High Breaking Capacity: These MCBs offer high breaking capacities to safely interrupt short-circuit currents and protect downstream electrical equipment from damage.
6. Trip Indication: Some models of Acti 9 MCBs feature trip indication mechanisms, such as visual indicators or remote signaling options, to provide clear indication of a tripped circuit breaker for easy identification and troubleshooting.
7. Compliance: Acti 9 MCBs comply with international standards and regulations for electrical circuit protection devices, ensuring safety, reliability, and performance.
8. Application Flexibility: Acti 9 MCBs are suitable for a wide range of applications, including residential, commercial, and industrial installations, where reliable overcurrent protection is essential.

Overall, Acti 9 miniature circuit breakers offer reliable and cost-effective protection for electrical circuits, combining compact design, high performance, and compliance with international standards to meet the diverse needs of customers in various industries and applications.
