• Robust Design: Built to withstand harsh industrial environments, including exposure to dust, water, and mechanical impacts.
• High Precision: Provides accurate position detection, ensuring reliable operation of machinery and equipment.
• Compact Size: Designed to fit in confined spaces without compromising performance.

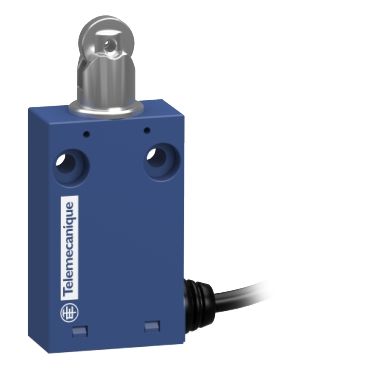

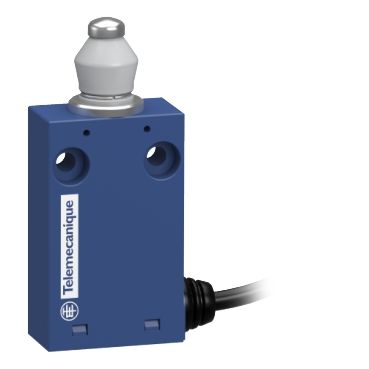

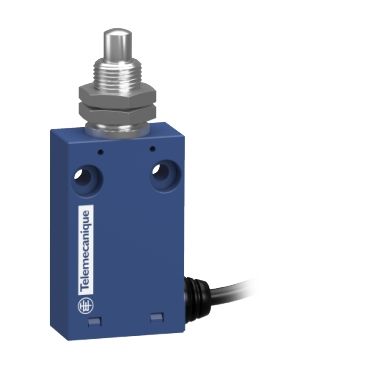

• Versatility: Available in various configurations to suit different applications, including different actuator types (plungers, rollers, levers).
• Easy Installation: Simplified mounting and wiring for quick and efficient installation.

Benefits

• Reliability: Ensures consistent and dependable performance in demanding conditions.
• Durability: Long operational life due to high-quality materials and construction.
• Flexibility: Adaptable to a wide range of industrial applications due to multiple configurations and actuator options.
• Safety: Enhances the safety of machinery by providing precise position detection and preventing undesired movements.

Common Applications

• Machinery Control: Used to monitor the position of moving parts in industrial machines.
• Conveyor Systems: Detects the position of items on conveyors for accurate sorting and routing.
• Elevators and Lifts: Ensures correct positioning of elevator cars and lift platforms.
• Robotics: Provides feedback on the position of robotic arms and other automated systems.
• Packaging Equipment: Monitors the position of components in packaging machinery to ensure proper operation.

Technical Specifications

• Operating Voltage: Suitable for a range of voltage levels, typically compatible with both AC and DC systems.
• Current Rating: Designed to handle specific current ratings suitable for controlling industrial machinery.

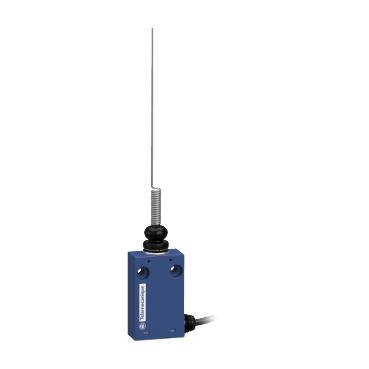

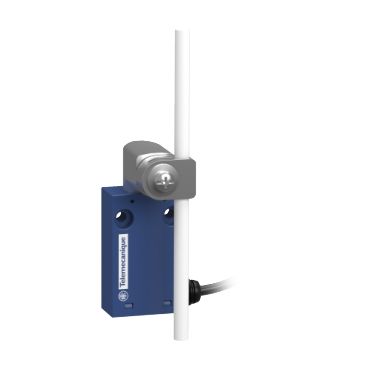

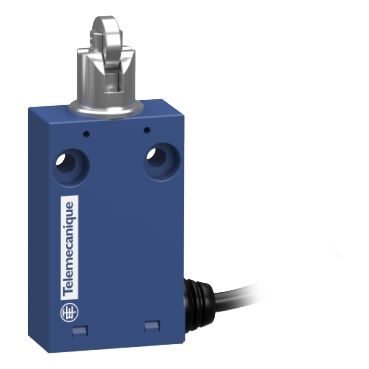

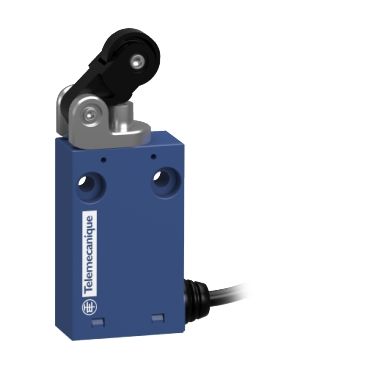

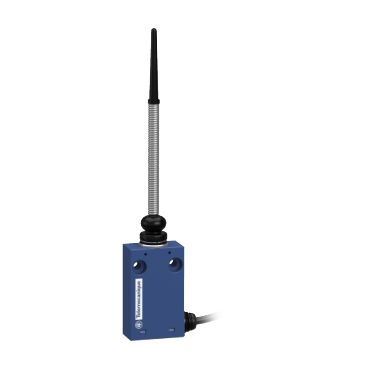

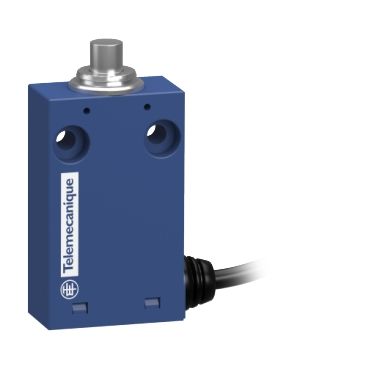

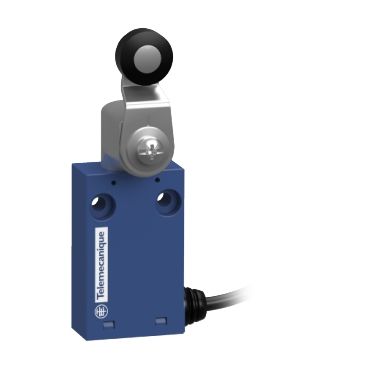

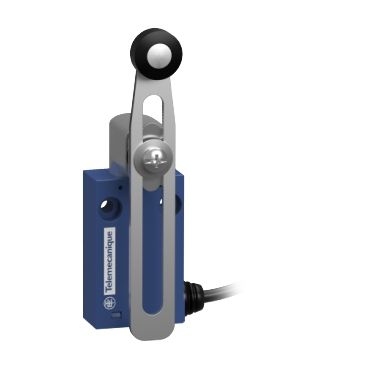

• Actuator Types: Includes various actuator types such as plunger, roller lever, and adjustable rod.
• Contact Configuration: Usually includes single-pole double-throw (SPDT) or double-pole double-throw (DPDT) configurations.
• Environmental Protection: Often rated IP67 or higher, providing protection against dust and water ingress.

Installation and Usage

1. Mounting: Secure the limit switch in the desired location using the provided mounting holes or brackets. Ensure it is positioned accurately to detect the target movement.
2. Wiring: Connect the limit switch to the control circuit following the wiring diagram provided by the manufacturer. Ensure all connections are secure.
3. Adjustment: If using an adjustable actuator, set the actuator to the desired position to ensure accurate detection.
4. Testing: Operate the machinery to verify that the limit switch accurately detects the position and triggers the appropriate control actions.
5. Maintenance: Periodically inspect the limit switch for wear or damage and clean it to ensure reliable operation. Replace any worn or damaged components as necessary.

Summary

The XCMH limit switches from Schneider Electric are reliable, durable, and versatile devices designed for precise position detection in industrial applications. Their robust construction and variety of configurations make them suitable for use in machinery control, conveyor systems, robotics, and more. Easy installation and maintenance, combined with high performance and reliability, make XCMH limit switches a valuable component in any industrial automation setup.
