The Linergy range of terminal blocks from Schneider Electric provides a comprehensive solution for various electrical connection needs in industrial and commercial applications. Here’s a detailed overview highlighting the key features and types of Linergy terminal blocks:

Key Features of Linergy Terminal Blocks:

1. Modular Design:
   • Flexibility: Individual blocks can be snapped together to create multi-pole terminal strips, allowing for easy assembly and customization to suit specific wiring requirements.
   • Scalability: Enables flexible configuration and easy expansion as wiring needs evolve.
2. Connection Types:
   • Screw Terminals: Secure and robust connections suitable for a wide range of applications.
   • Spring Terminals: Quick and maintenance-free connections with consistent contact pressure.
   • Push-in Connections: Fast and tool-free wire insertion for efficient installation.
3. Versatility:
   • Applications: Suitable for use in control panels, distribution boards, machinery, equipment, and more.
   • Functions: Solutions for power distribution, signal transmission, and grounding connections.
4. High-Quality Construction:
   • Materials: Made from durable materials such as thermoplastics, metal alloys, or ceramic.
   • Durability: Designed to withstand mechanical stresses, temperature variations, and chemical exposure in harsh operating conditions.
5. Safety Features:
   • Insulation Barriers: Enhance safety by preventing accidental contact with live conductors.
   • Touch-Safe Designs: Reduce the risk of electrical hazards during installation and maintenance.
   • Finger-Proof Terminals: Ensure operator safety and prevent accidental short circuits.
6. Customization Options:
   • Sizes and Configurations: Available in various sizes, configurations, and mounting options to accommodate different application requirements.
   • Accessories: Can be customized with markers, labels, and covers for easy identification and organization of wiring connections.
7. Compliance:
   • Standards: Comply with international standards and specifications for terminal blocks and electrical connectors.
   • Certification: Undergo rigorous testing and certification to meet safety, performance, and environmental requirements.

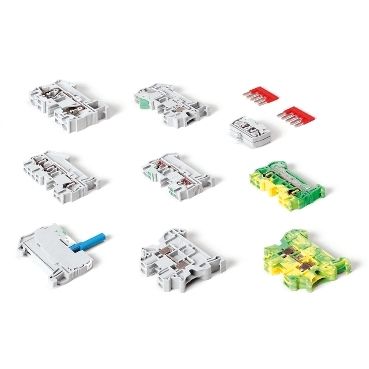

Types of Linergy Terminal Blocks:

1. Linergy TR (Push-in Terminal Blocks):
   • Connection: Tool-free push-in technology for quick and reliable wire connections.
   • Efficiency: Reduces installation time and labor costs.
2. Linergy TS (Screw Clamp Terminal Blocks):
   • Connection: Traditional screw clamp terminals for secure and dependable connections.
   • Applications: Suitable for environments with mechanical stress and vibrations.
3. Linergy TE (Spring Clamp Terminal Blocks):
   • Connection: Spring clamp terminals for fast and maintenance-free connections.
   • Consistency: Provides consistent contact pressure and vibration resistance.

Applications:

• Industrial Control Panels: Connect control devices, sensors, actuators, and power supplies.
• Machinery and Equipment: Ensure dependable electrical connections for operational reliability.
• Building Automation: Used in HVAC systems, lighting controls, and security systems.
• Power Distribution: Manage and distribute electrical power efficiently and safely in distribution panels and switchboards.

Summary:

Schneider Electric's Linergy terminal blocks offer a reliable and versatile solution for making secure electrical connections in industrial and commercial environments. With their modular design, various connection options, high-quality construction, safety features, customization options, and compliance with industry standards, Linergy terminal blocks provide efficient and dependable means of maintaining electrical systems.
