The Telemecanique XCKJ series limit switches are well-regarded for their robustness, reliability, and adaptability in various industrial applications. They belong to the broader Telemecanique Sensors product line, which is known for providing high-quality sensing solutions.

Telemecanique XCKJ Series Limit Switches

Key Features:

1. Robust and Reliable Construction:
   • Designed to withstand harsh industrial environments.
   • Typically made with metal housings for enhanced durability and mechanical strength.
2. Wide Range of Actuators:

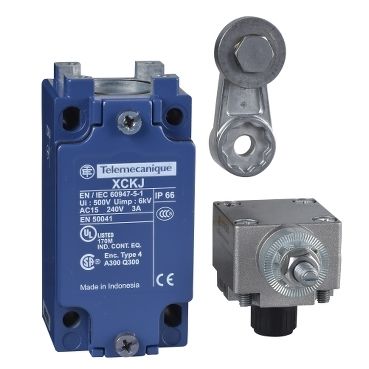

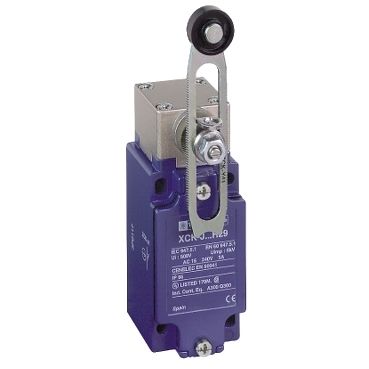

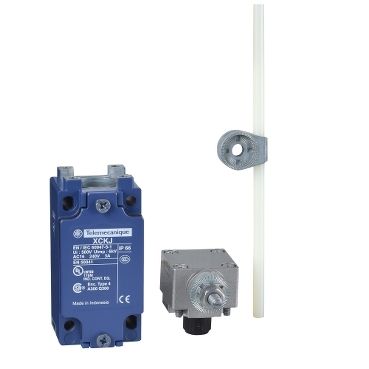

   • Available with various actuator types such as plunger, roller lever, adjustable roller lever, and rod lever.
   • This variety allows for customization to meet different mechanical movement requirements.
3. High Environmental Protection:
   • Often rated with high ingress protection levels, such as IP66 or IP67.
   • Resistant to dust, water, and other environmental factors, making them suitable for use in tough conditions.
4. Electrical Specifications:
   • Supports various electrical ratings, making them compatible with different industrial control systems.
   • Suitable for both AC and DC applications.
5. Modular and Flexible Design:
   • Modular design allows for easy replacement and customization.
   • Compact size ensures suitability for applications where space is limited.

Common Applications:

• Position Sensing: Detecting the position, presence, or absence of machine parts or objects.
• Safety Interlocks: Ensuring machine safety by detecting open guards or gates and preventing operation.
• Process Control: Monitoring and controlling automated processes in manufacturing and assembly lines.
• End of Travel Detection: Ensuring machinery components stop at designated positions.

Technical Specifications:

• Mechanical Durability: Designed for high mechanical endurance, often rated for millions of operations.
• Electrical Ratings: Suitable for a range of voltages (e.g., 24V, 120V, 240V) and currents.
• Operating Temperature Range: Wide operating temperature range to suit various environmental conditions.

Installation and Maintenance:

• Mounting: Designed for easy installation with multiple mounting options.
• Wiring: Typically features screw terminals or plug-in connectors for straightforward electrical connections.
• Maintenance: Low maintenance requirements due to high durability. Regular inspections and cleaning ensure reliable operation.

Selection Guide:

When selecting a specific XCKJ limit switch model, consider the following:

• Type of Actuator: Choose an actuator type that matches the required mechanical movement (e.g., linear, rotary).
• Electrical Requirements: Ensure the switch's voltage and current ratings are compatible with your system.
• Environmental Conditions: Select a model with appropriate ingress protection and temperature ratings for your application environment.
• Mechanical Fit: Ensure the switch dimensions and mounting options meet your installation requirements.

For detailed technical data, application notes, and installation instructions, refer to the official Telemecanique Sensors documentation and datasheets specific to the XCKJ series. These resources provide comprehensive information to ensure the correct selection and application of the limit switches.
