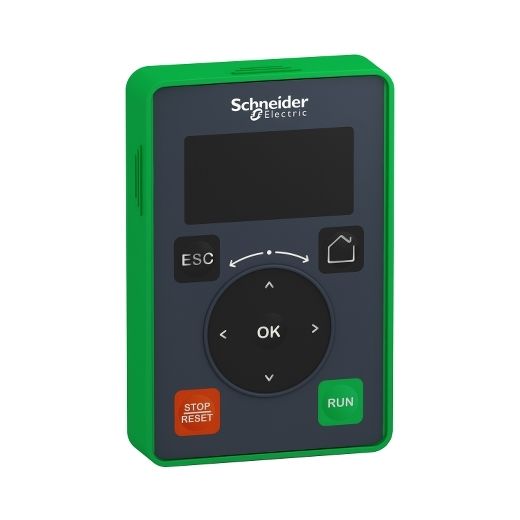

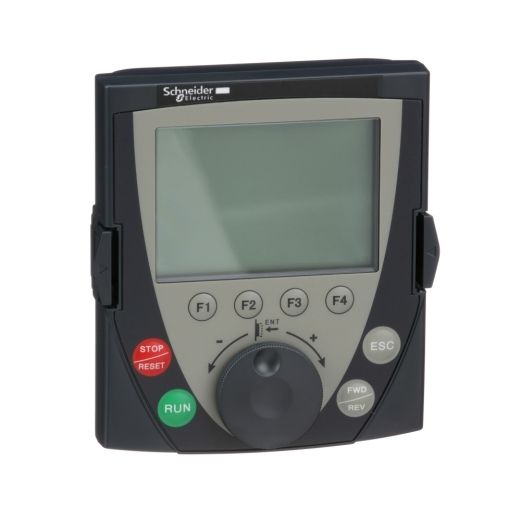

Graphic Display Terminal

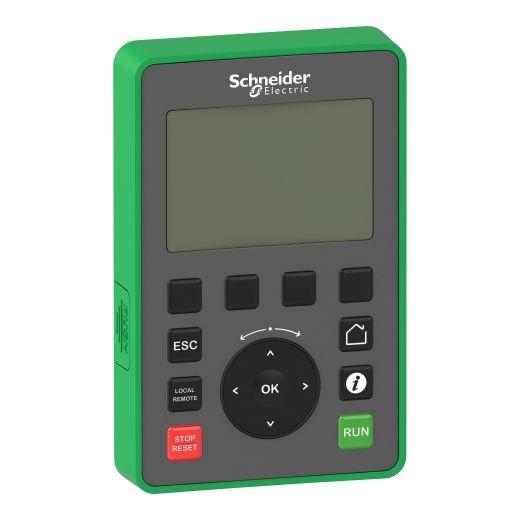

The Altivar Graphic Display Terminal typically refers to a user interface device used with Schneider Electric's Altivar range of variable frequency drives (VFDs). These terminals provide a visual interface for monitoring and controlling the VFDs. Here are some key points about the Altivar Graphic Display Terminal:
- Purpose: It serves as a human-machine interface (HMI) for interacting with Altivar VFDs. Users can monitor parameters, adjust settings, and diagnose issues through this terminal.
- Features: Depending on the model and generation, features may include a graphical LCD screen, touch interface (in some models), navigation buttons, status indicators, and various communication ports.
- Functionality: The terminal allows users to:
- View operational parameters such as motor speed, current, voltage, and fault codes.
- Adjust settings for motor control, acceleration, deceleration, and other operational parameters.
- Perform diagnostics and troubleshooting by accessing historical data and fault logs.
- Integration: It typically connects to the Altivar VFD via a dedicated communication protocol such as Modbus, CANopen, Ethernet/IP, or others, depending on the specific model and application requirements.
- Applications: Used in industrial and commercial applications where precise control over motor speed and efficiency is crucial, such as HVAC systems, pumps, conveyors, and various manufacturing processes.
- Advantages: Provides intuitive control and monitoring capabilities, enhances operational efficiency, reduces downtime through proactive diagnostics, and supports integration with broader automation systems.
- Models: Schneider Electric offers various models of Altivar Graphic Display Terminals tailored to different VFD series and application needs, ensuring compatibility and scalability across their product range.
Overall, the Altivar Graphic Display Terminal is an essential component for users seeking to optimize the performance and efficiency of their motor control systems through advanced monitoring and control functionalities.
