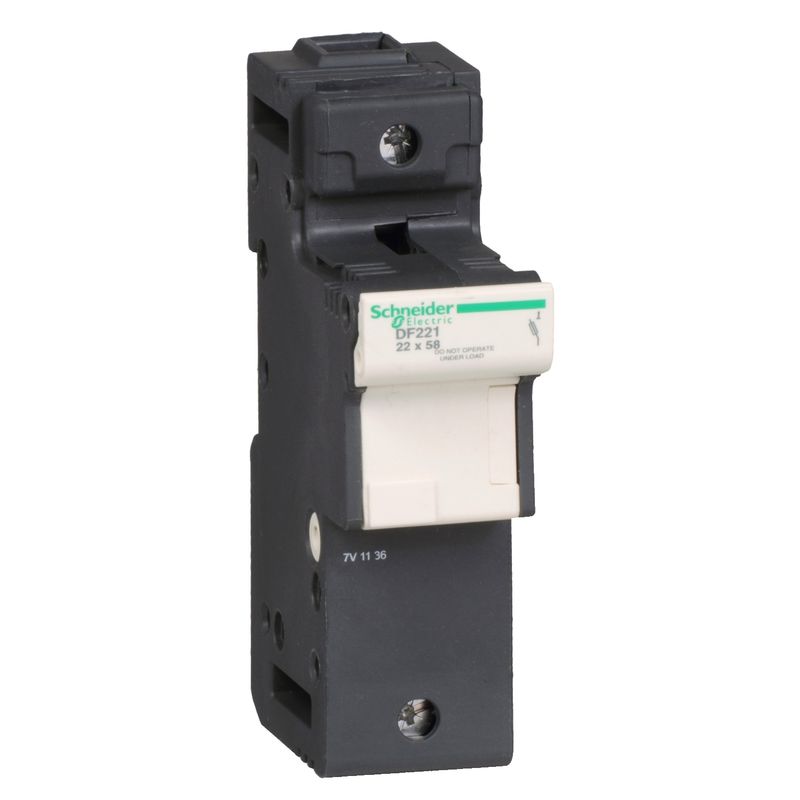

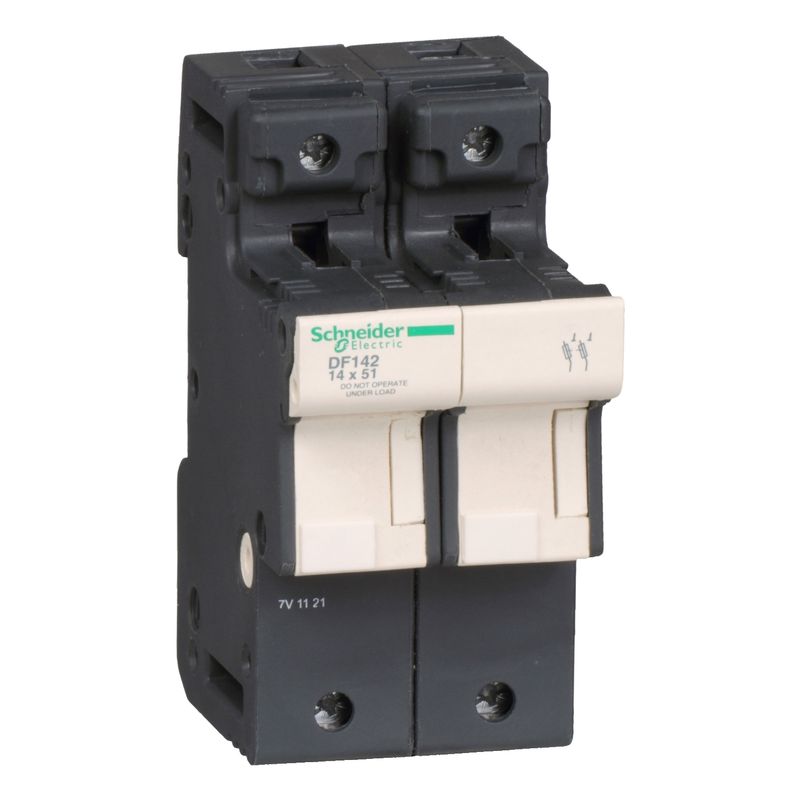

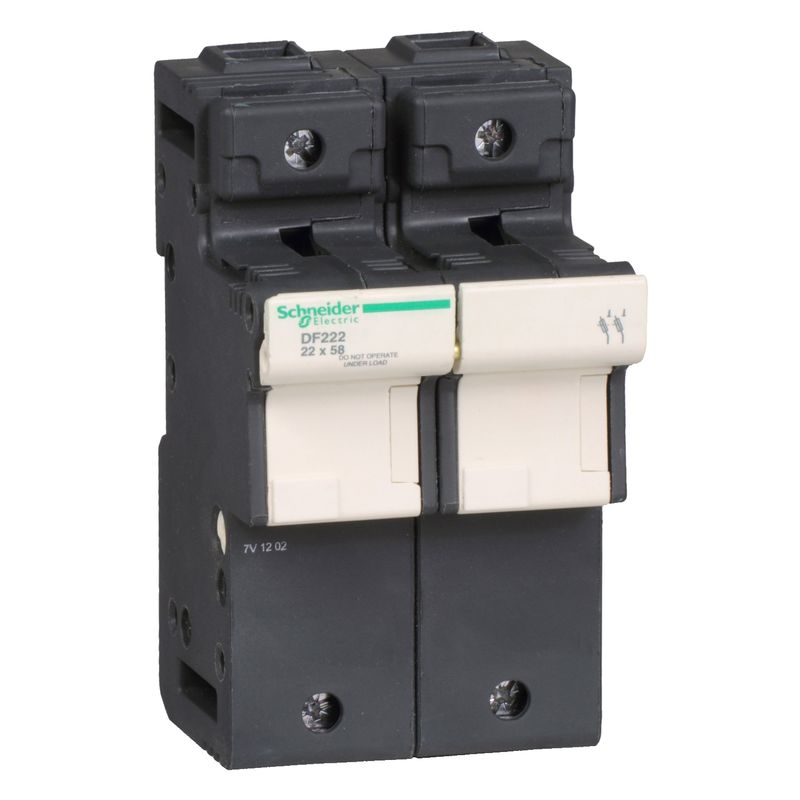

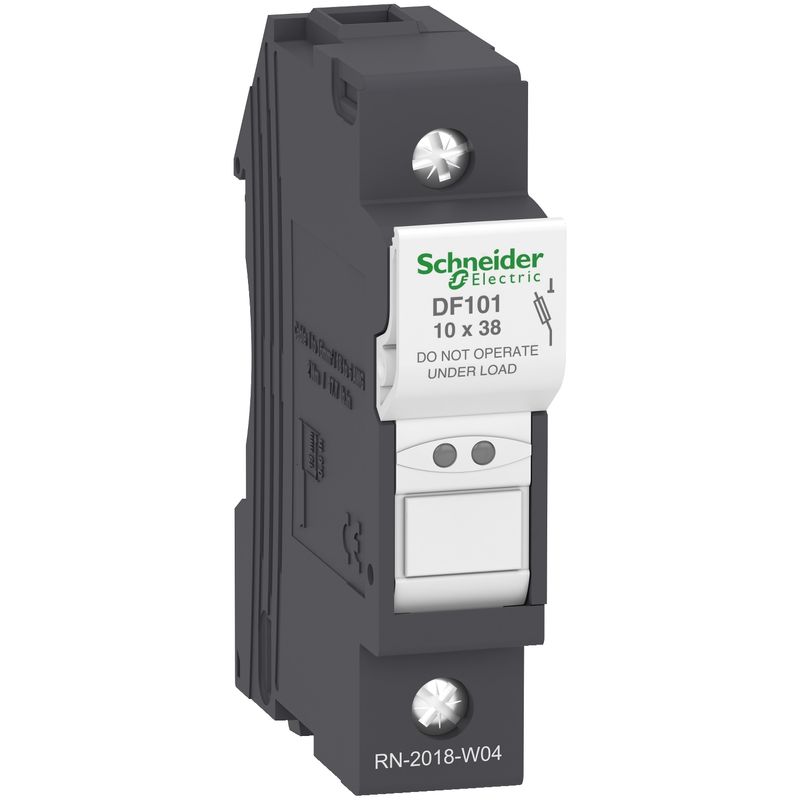

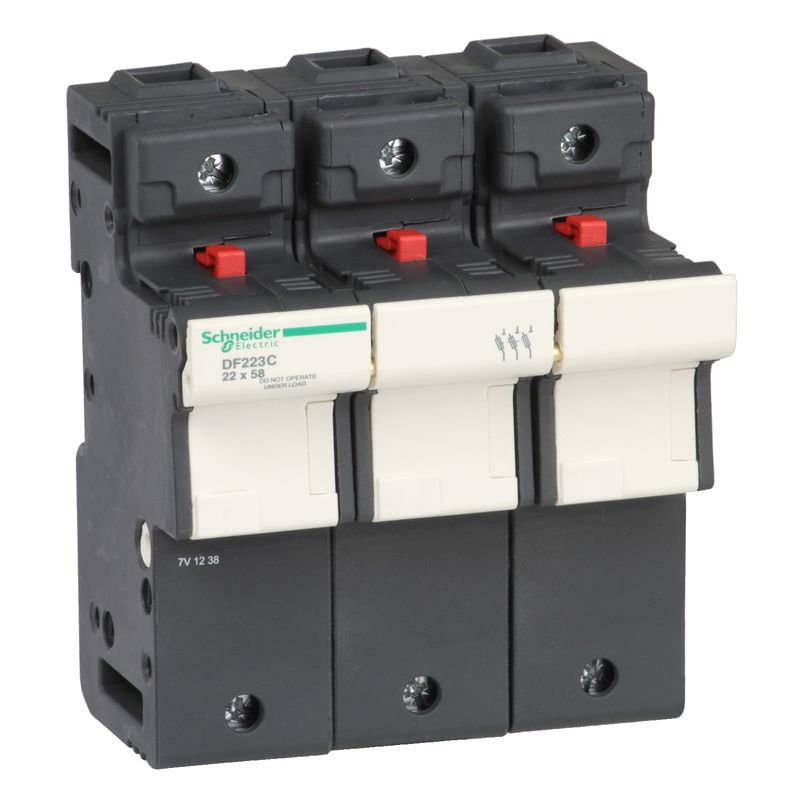

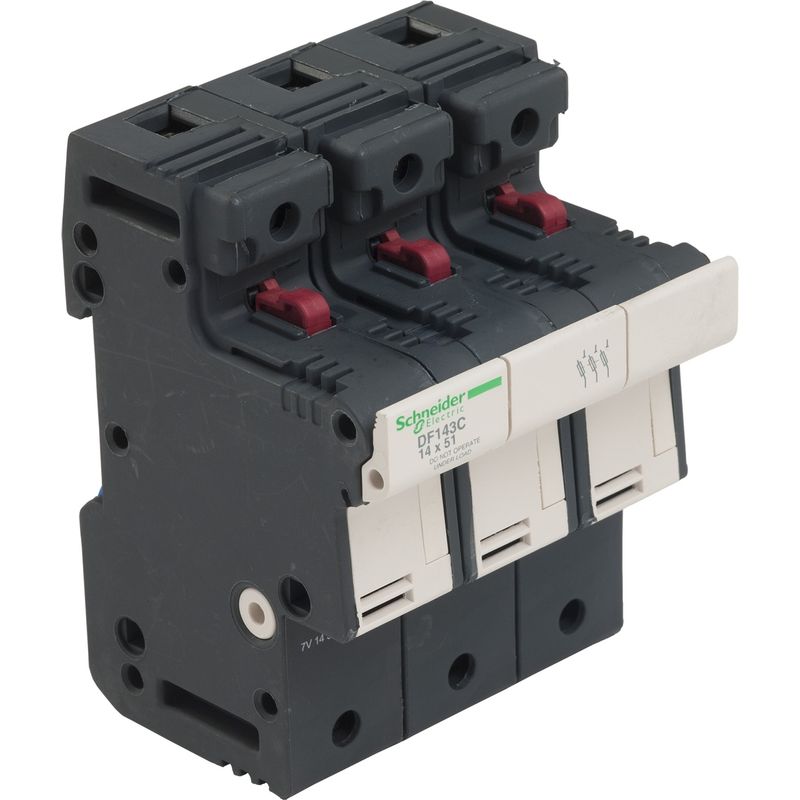

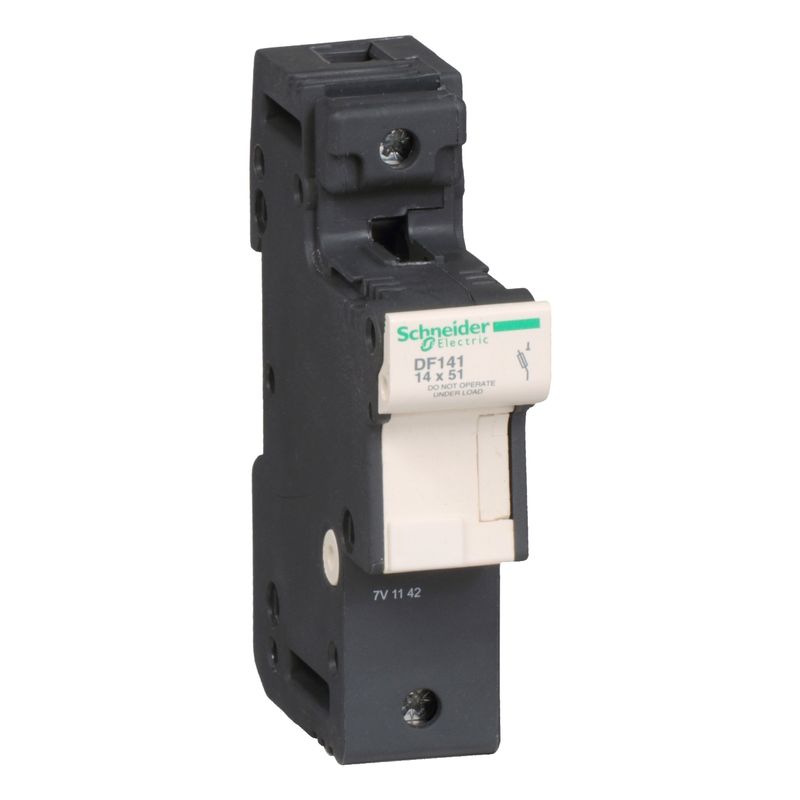

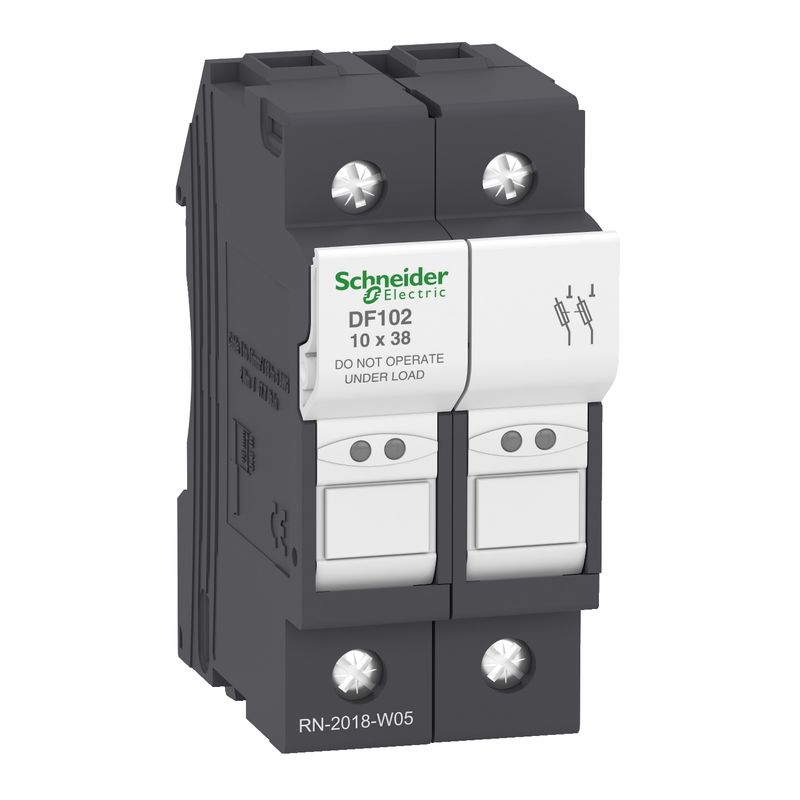

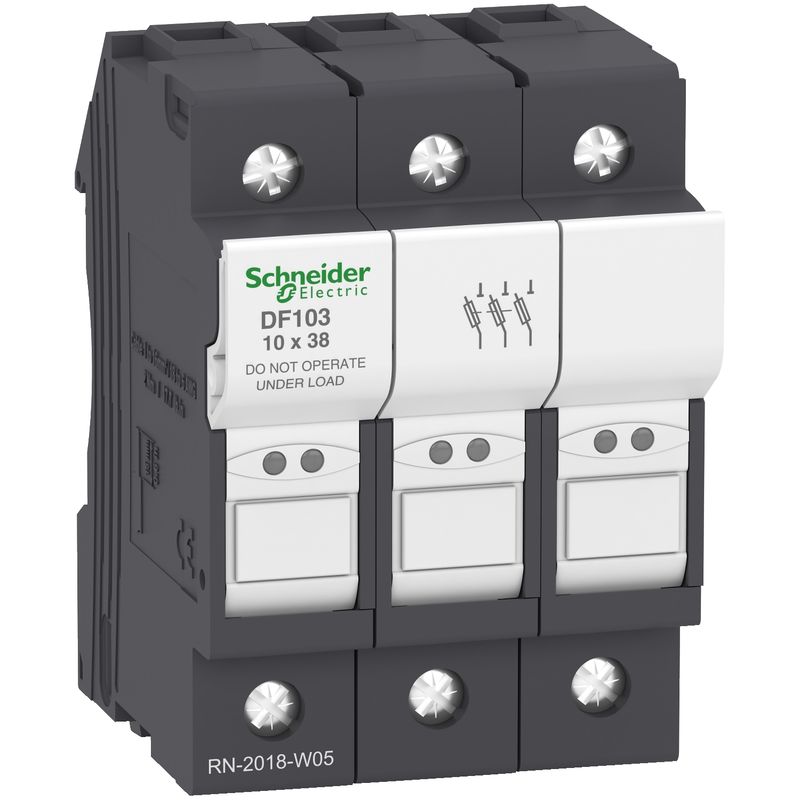

TeSys DF Fuse Carrier

The TeSys DF fuse carrier, part of Schneider Electric's TeSys range, is a high-quality, robust solution designed to protect electrical equipment, particularly motors, from short circuits. These fuse carriers are essential components in various industrial and commercial applications, offering reliable protection and easy integration into electrical systems.

Key Features of TeSys DF Fuse Carrier

1. Wide Current and Voltage Range
   • Current Rating: Available in ratings from 0.5 A to 125 A, suitable for different load requirements.
   • Voltage Capacity: Capable of handling voltages up to 690 V, making them versatile for various electrical systems.
2. Short-Circuit Protection
   • Effective Protection: Designed to protect motors and other electrical components from short circuits, ensuring safety and preventing damage.
   • Fuse Compatibility: Compatible with a range of fuses, including gG (general purpose), aM (motor protection), and gM (combined protection), offering flexibility in protection strategies.
3. Durable and Robust Construction
   • High-Quality Materials: Constructed from durable materials to ensure long-term reliability and performance in harsh industrial environments.
   • Mechanical Strength: Built to withstand mechanical stress and vibrations commonly found in industrial settings.
4. Ease of Installation and Maintenance
   • DIN Rail Mounting: Easily mountable on standard DIN rails, simplifying installation and integration into existing panels and systems.
   • Clear Indications: Features clear indicators for fuse status, making it easy to identify and replace blown fuses promptly.
5. Enhanced Safety Features
   • Electrical Isolation: Provides secure electrical isolation, minimizing the risk of electrical faults and enhancing safety.
   • Insulated Design: Ensures proper insulation to protect against electrical shock and other hazards.

Applications of TeSys DF Fuse Carriers

1. Motor Protection
   • Short-Circuit Protection for Motors: Essential for safeguarding motors up to 125 A (55 kW / 400 V) from short circuits.
   • Versatile Motor Types: Suitable for a variety of motor types and sizes, providing reliable protection.
2. Industrial Equipment
   • Machine Protection: Protects various industrial machines and equipment from electrical faults, ensuring safe and reliable operation.
   • Process Control: Integral in protecting control systems and other sensitive equipment from short circuits.
3. Electrical Distribution
   • Panel Boards: Used in electrical distribution panels to protect circuits and enhance system reliability.
   • Switchgear Integration: Compatible with switchgear systems, providing comprehensive electrical protection.
4. Renewable Energy Systems
   • Solar and Wind Installations: Ensures the safety of electrical components in renewable energy systems by providing reliable short-circuit protection.
   • Energy Storage Systems: Protects batteries and other energy storage devices from electrical faults, enhancing system reliability.

Benefits of Using TeSys DF Fuse Carriers

• Reliable Protection: Offers effective short-circuit protection, safeguarding motors and other electrical equipment.
• Versatility: Suitable for a wide range of applications and compatible with various fuse types.
• Durable Design: High-quality construction ensures long-lasting performance even in demanding environments.
• Ease of Use: Simple installation, clear fuse status indicators, and easy maintenance reduce downtime and enhance operational efficiency.
• Safety: Enhanced electrical isolation and insulation minimize the risk of electrical hazards, ensuring safe operation.

Conclusion

TeSys DF fuse carriers are essential components for protecting motors and other electrical equipment from short circuits. With their robust construction, wide range of current and voltage ratings, and ease of installation, these fuse carriers are ideal for various industrial and commercial applications. They provide reliable and effective protection, ensuring the safety and longevity of electrical systems while enhancing operational efficiency and reducing maintenance efforts.
