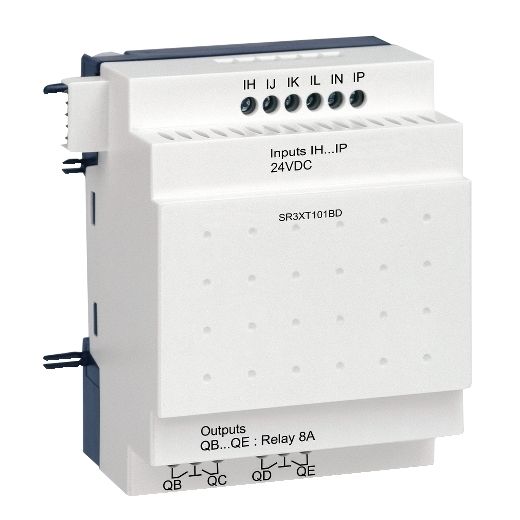

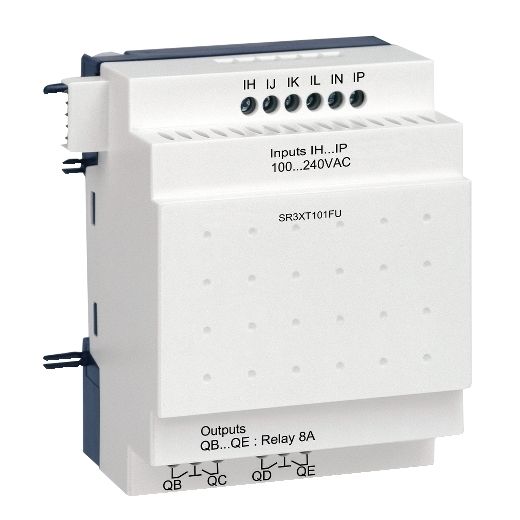

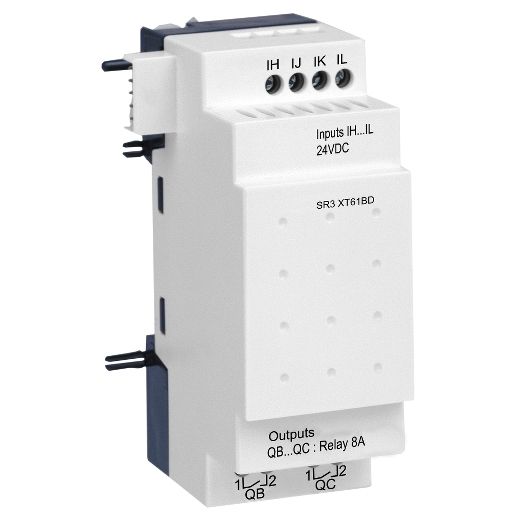

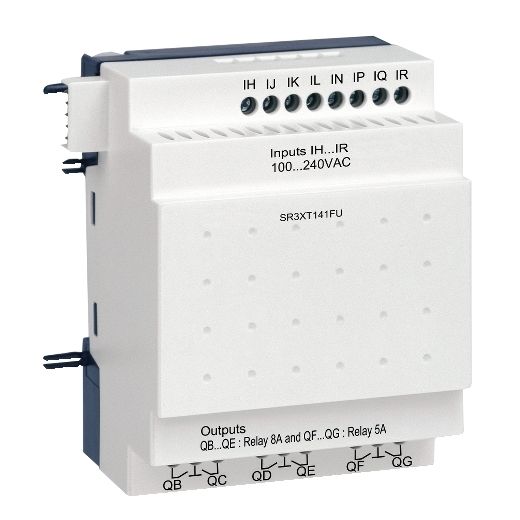

Discrete I/O Extension Module for Zelio Logic

The discrete I/O extension modules are designed to expand the input and output capabilities of the Zelio Logic smart relays. These modules enable the adaptation and scalability of control systems to meet specific application requirements, providing additional points for monitoring and control.

Key Features of Discrete I/O Extension Modules

1. Expanded Capacity
   • Increased I/O Count: Adds more digital inputs and outputs to the base Zelio Logic smart relay, allowing for the control and monitoring of more devices.
   • Variety of Configurations: Available in different configurations to meet various application needs, such as different numbers of inputs and outputs.
2. Compatibility
   • Seamless Integration: Designed to work seamlessly with Zelio Logic smart relays, ensuring easy and quick integration.
   • Modular Design: Modular design allows for easy attachment to the main relay unit, typically via a dedicated expansion port.
3. Flexibility
   • Wide Range of Inputs/Outputs: Supports a variety of digital inputs and outputs, accommodating different types of sensors, switches, and actuators.
   • Programmable: Can be programmed using the same Zelio Soft software as the main relay, ensuring consistent and unified control logic.
4. Robust Construction
   • Durable: Built to withstand industrial environments, ensuring long-term reliability and performance.
   • DIN Rail Mounting: Easy to mount on standard DIN rails, facilitating straightforward installation and maintenance.
5. LED Indicators
   • Status Monitoring: Equipped with LED indicators for each input and output, providing clear visual feedback for status monitoring and troubleshooting.

Applications of Discrete I/O Extension Modules

1. Industrial Automation
   • Machine Control: Expands the control capability of machines and production lines by adding more inputs for sensors and outputs for actuators.
   • Process Monitoring: Increases the number of points that can be monitored, enhancing process control and data acquisition.
2. Building Automation
   • Lighting Systems: Provides additional points for controlling and monitoring lighting systems in large buildings.
   • HVAC Systems: Expands control over HVAC components for more complex climate control systems.
3. Water Management
   • Pump Control Systems: Adds inputs for additional sensors and outputs for controlling more pumps or valves in water distribution and treatment systems.
   • Irrigation Systems: Enhances the control of extensive irrigation systems by accommodating more zones and sensors.
4. Energy Management
   • Load Control: Adds more points for monitoring and controlling electrical loads to optimize energy consumption.
   • Renewable Energy Systems: Integrates additional sensors and actuators for managing renewable energy sources and storage systems.

Advantages of Using Discrete I/O Extension Modules

• Scalability: Easily expands the capabilities of existing Zelio Logic smart relay systems to meet growing or changing application needs.
• Cost-Effective: Provides an economical way to increase I/O capacity without the need to replace the entire control system.
• Ease of Integration: Simple installation and seamless integration with existing Zelio Logic systems, minimizing setup time and effort.
• Enhanced Control: Improves the flexibility and functionality of control systems, allowing for more complex and comprehensive automation solutions.

Conclusion

Discrete I/O extension modules for Zelio Logic smart relays offer a straightforward and efficient way to expand the input and output capabilities of automation systems. These modules ensure seamless integration and scalability, enabling more comprehensive control and monitoring across various industrial, building, water management, and energy management applications. By providing additional points for connecting sensors and actuators, these extension modules enhance the flexibility, functionality, and overall performance of Zelio Logic smart relay systems.
