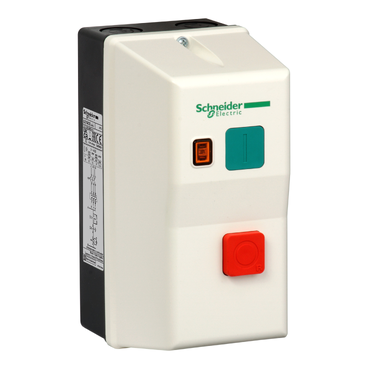

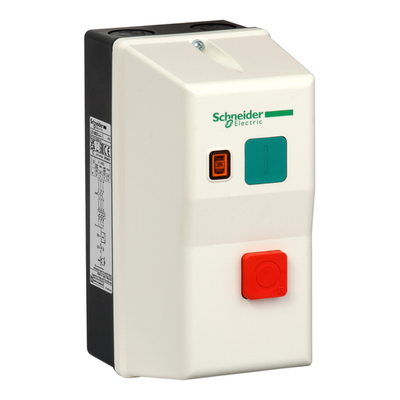

The Schneider Electric TeSys LE enclosed Direct On-Line (DOL) starter is designed for straightforward and efficient motor control. The TeSys LE DOL starter includes all necessary components for motor starting and protection in a compact, enclosed unit.

Key Features

1. Integrated Design: Combines a contactor and thermal overload relay in a single enclosed unit.
2. Ease of Installation: Pre-wired and ready to use, reducing installation time.
3. Protection: Provides motor overload protection and can include short-circuit protection with optional fuses.
4. Manual Control: Simple start and stop buttons for direct manual control of the motor.
5. Durability: Robust enclosure suitable for industrial environments.

Components

1. Contactor: Switches the motor on and off by connecting and disconnecting it from the power supply.
2. Thermal Overload Relay: Protects the motor from overheating by disconnecting it if an overload condition occurs.
3. Start and Stop Buttons: Allow manual control of motor starting and stopping.
4. Enclosure: Provides protection for internal components against dust, moisture, and physical damage.

Operation

• Starting the Motor: Press the start button to energize the contactor, closing the contacts and supplying power to the motor.
• Running the Motor: The motor runs at full speed, directly connected to the power supply.
• Stopping the Motor: Press the stop button to de-energize the contactor, opening the contacts and disconnecting the motor from the supply.
• Overload Protection: If the motor draws too much current, the thermal overload relay trips, opening the contactor and stopping the motor to prevent damage.

Installation and Setup

1. Mounting: Securely mount the starter in a suitable location.
2. Power Supply Connection: Connect the line supply (L1, L2, L3) to the input terminals on the contactor.
3. Motor Connection: Connect the motor leads to the output terminals (T1, T2, T3).
4. Overload Relay Setting: Adjust the overload relay to match the motor's full-load current rating.
5. Testing: Test the start and stop functions to ensure the system operates correctly.

Troubleshooting Tips

1. Motor Does Not Start: Check the power supply and ensure that the contactor is functioning. Verify the start button is operational.
2. Motor Overheats: Ensure the overload relay setting matches the motor’s full-load current and is not tripping frequently.
3. Frequent Tripping: Check for short circuits or grounding issues in the motor wiring. Verify that the motor is not overloaded or malfunctioning.

Additional Resources

For more detailed information on the TeSys LE enclosed DOL starter, including specific model numbers, configurations, and technical specifications, refer to the official Schneider Electric documentation or their website.
