Telemecanique's XML series pressure switches are designed for a variety of industrial applications, providing reliable pressure monitoring and control. These devices are known for their robustness, precision, and versatility, making them suitable for use in various systems such as hydraulics, pneumatics, and process control.

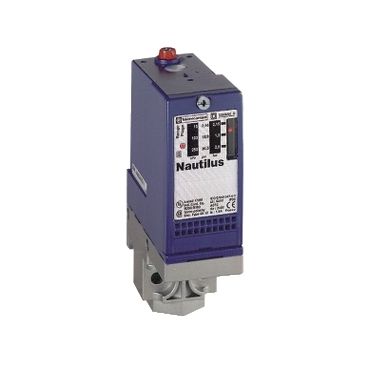

Telemecanique XML Series Pressure Switches

Key Features:

1. Wide Range of Pressure Settings:
   • Available models cover a broad range of pressure settings, from low to high pressures.
   • Suitable for diverse applications, from delicate pressure control to heavy-duty industrial uses.
2. Robust Construction:
   • Built to withstand harsh industrial environments.
   • Durable materials ensure long service life and reliability.
3. Versatile Output Options:
   • Available with various types of electrical outputs, such as SPDT (Single Pole Double Throw) and DPDT (Double Pole Double Throw) contacts.
   • Compatible with different control systems and applications.
4. High Environmental Protection:
   • Typically rated with high ingress protection levels, such as IP65 or higher.
   • Resistant to dust, water, and other contaminants, making them suitable for challenging environments.
5. Adjustable Set Points:
   • Many models feature adjustable set points, allowing users to customize the pressure thresholds according to their specific needs.

Common Applications:

• Hydraulic Systems: Monitoring and controlling hydraulic pressure to ensure safe and efficient operation.
• Pneumatic Systems: Regulating air pressure in pneumatic equipment and systems.
• Process Control: Ensuring accurate pressure monitoring in manufacturing and processing industries.
• HVAC Systems: Managing pressure in heating, ventilation, and air conditioning systems.
• Water Supply Systems: Controlling pressure in water distribution networks to prevent damage and ensure reliable supply.

Technical Specifications:

• Pressure Range: Models available for a wide range of pressures, from a few millibars to several hundred bars.
• Accuracy: High accuracy to ensure precise pressure control and monitoring.
• Output Types: Various electrical output configurations, including SPDT and DPDT contacts.
• Operating Temperature Range: Designed to operate reliably over a wide range of temperatures.

Installation and Maintenance:

• Mounting: Designed for easy installation with standard mounting options.
• Wiring: Typically features screw terminals or plug-in connectors for straightforward electrical connections.
• Maintenance: Low maintenance requirements due to robust construction. Regular inspection and calibration ensure continued accuracy and reliability.

Selection Guide:

When selecting a specific XML pressure switch model, consider the following:

• Pressure Range: Ensure the model covers the required pressure range for your application.
• Output Type: Select an appropriate output configuration (SPDT, DPDT) that matches your control system.
• Environmental Conditions: Choose a model with the appropriate ingress protection and temperature ratings for your operating environment.
• Mechanical Fit: Verify that the dimensions and mounting options meet your installation requirements.

For detailed technical data, application notes, and installation instructions, refer to Telemecanique Sensors' official documentation and datasheets specific to the XML series. These resources provide comprehensive information to ensure correct selection and application of the pressure switches.
