Earth leakage protection, also known as residual current protection or ground fault protection, is a critical safety feature in electrical systems. It works by detecting imbalances in electrical currents between the live and neutral conductors, which may indicate leakage of current to ground. Here's an overview of earth leakage protection:

How Earth Leakage Protection Works:

1. Detection of Current Imbalance: Earth leakage protection devices continuously monitor the electrical currents flowing through the live and neutral conductors. Under normal conditions, these currents should be balanced, with the same amount of current flowing in and out of the circuit.
2. Detection of Leakage Current: If there is an imbalance between the currents in the live and neutral conductors, it may indicate the presence of leakage current to ground. Earth leakage protection devices quickly detect this imbalance.
3. Tripping Mechanism: When leakage current surpasses a predetermined threshold, the earth leakage protection device trips and interrupts the electrical supply to the circuit. This rapid response helps prevent electric shocks, fires, and other hazards associated with ground faults.

Types of Earth Leakage Protection Devices:

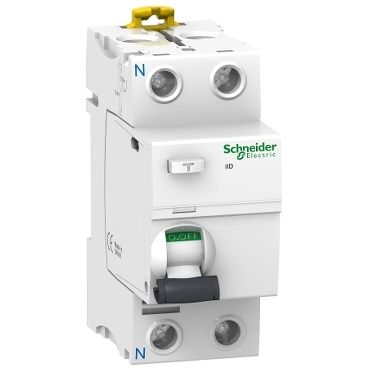

1. Residual Current Circuit Breakers (RCCBs): RCCBs are commonly used for earth leakage protection in electrical installations. They monitor the imbalance between the live and neutral conductors and trip the circuit when leakage current exceeds a set threshold.

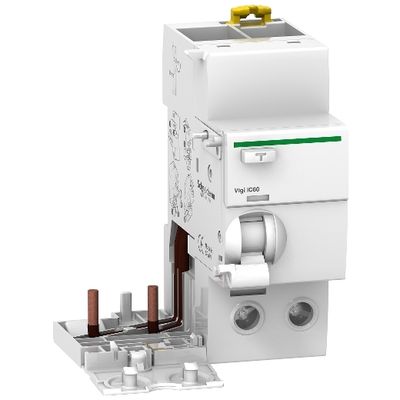

2. Residual Current Devices (RCDs): RCDs are similar to RCCBs but are often more sensitive and faster in their response to leakage currents. They provide additional protection against electric shocks by tripping the circuit in milliseconds.
3. Ground Fault Circuit Interrupters (GFCIs): GFCIs are specialized earth leakage protection devices commonly used in residential and commercial outlets. They quickly disconnect the power supply when they detect ground faults, preventing electric shocks in areas with water or moisture.
4. Earth Leakage Relays: Earth leakage relays are used in industrial applications to provide protection against ground faults in electrical systems. They can be configured to monitor multiple circuits and provide alarm signals or trip commands when leakage currents are detected.

Importance of Earth Leakage Protection:

1. Electrical Safety: Earth leakage protection devices help prevent electric shocks and electrocution by quickly disconnecting power in the event of ground faults.
2. Fire Prevention: Ground faults can lead to electrical fires if left undetected. Earth leakage protection devices mitigate this risk by interrupting the circuit and preventing excessive current flow.
3. Equipment Protection: Earth leakage protection safeguards electrical equipment and appliances from damage caused by ground faults, reducing downtime and maintenance costs.
4. Compliance: Many electrical safety standards and regulations require the use of earth leakage protection devices in electrical installations to ensure compliance with safety requirements.

Overall, earth leakage protection is a crucial aspect of electrical safety, providing essential protection against ground faults and reducing the risk of electric shocks, fires, and equipment damage in electrical systems.
