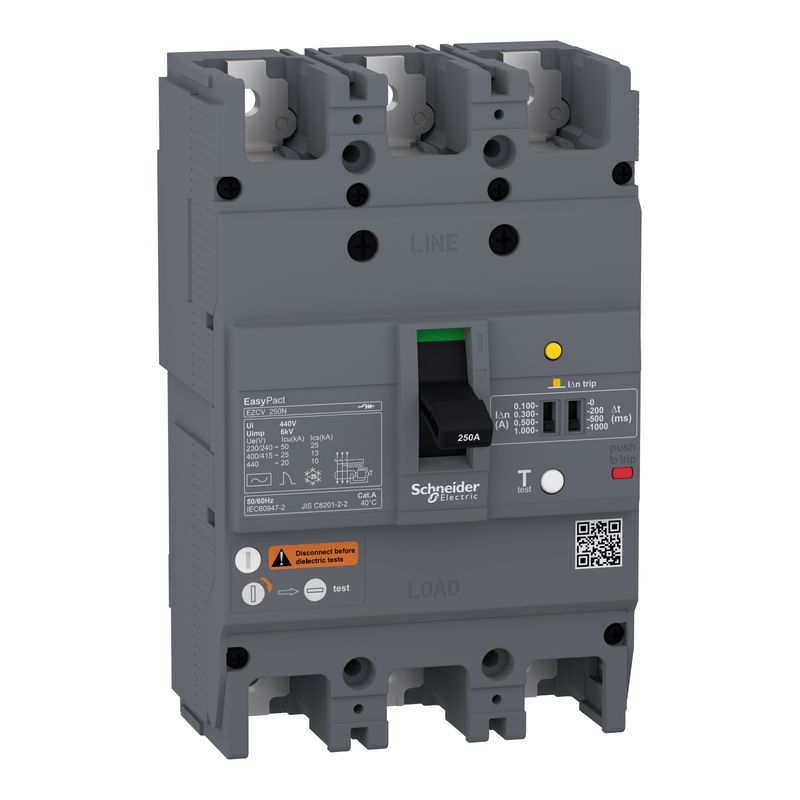

EZCV250N - 3P
The Schneider Electric EZC250N, as a molded case circuit breaker (MCCB), is primarily designed for overcurrent and short-circuit protection in low-voltage electrical distribution systems. It is important to note that the EZC250N, as a standard MCCB, does not inherently provide earth leakage protection (ELCB/RCD functionality). Earth leakage protection is typically required for detecting small leakage currents to ground, which could pose a safety risk or indicate faults in electrical installations.
Earth Leakage Protection Options with EZC250N
If earth leakage protection is required in conjunction with the EZC250N MCCB, Schneider Electric offers solutions that can be integrated into the electrical system:
- Residual Current Devices (RCDs):
- RCDs are specifically designed to provide earth leakage protection by detecting residual current imbalances between the live and neutral conductors. They trip the circuit when a leakage current exceeds a predetermined threshold, typically 30mA or 300mA.
- Schneider Electric offers various types of RCDs that can be installed alongside MCCBs like the EZC250N to provide additional safety against electrical shocks and fire hazards caused by ground faults.
- Combined MCCB and RCD Units:
- In some cases, Schneider Electric integrates MCCB and RCD functionalities into a single unit, known as a combined MCCB and RCD or RCBO (Residual Current Circuit Breaker with Overcurrent protection).
- These units provide both overcurrent protection (like the EZC250N) and earth leakage protection (like an RCD) in one device, simplifying installation and ensuring comprehensive protection.
- Modular and Panel-Mounted RCDs:
- Schneider Electric also offers modular RCDs and panel-mounted RCDs that can be installed in distribution boards alongside MCCBs like the EZC250N.
- These RCDs are available in various ratings and configurations to suit different installation requirements.
Integration and Compatibility
When integrating earth leakage protection with the EZC250N MCCB, it is essential to ensure compatibility and adherence to local electrical regulations and standards. Proper coordination and selection of components, such as RCDs or combined MCCB and RCD units, help ensure comprehensive protection against both overcurrents and earth faults.
Applications
- Industrial Facilities: Protecting personnel and equipment from electrical hazards in manufacturing plants and industrial environments.
- Commercial Buildings: Ensuring safety and compliance with electrical codes in offices, retail spaces, and hospitality facilities.
- Residential Installations: Providing enhanced safety against electrical faults in residential complexes and homes.
By considering the specific requirements of your electrical installation and integrating appropriate earth leakage protection devices alongside the EZC250N MCCB, you can ensure a safe and reliable electrical distribution system that meets regulatory standards and enhances overall safety.
