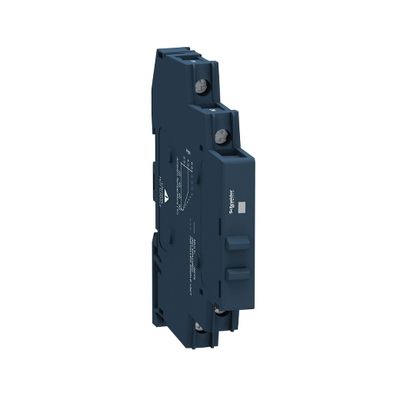

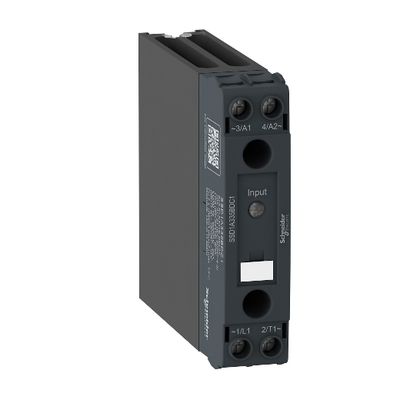

Schneider Electric's SSD (Solid State DIN Rail Mount) relays are designed for robust and reliable switching of AC loads in industrial and commercial environments. Here's an overview of the SSD Solid State Relays:

SSD Solid State DIN Rail Mount Relay Overview:

1. Solid-State Technology:
   • Reliable Switching: Utilizes semiconductor technology (typically thyristors or triacs) for switching AC loads.
   • No Moving Parts: Unlike electromechanical relays, SSRs have no mechanical contacts, enhancing reliability and reducing wear.
2. Features and Capabilities:
   • High Switching Speed: SSD relays can switch AC loads rapidly, improving control and response times in automation applications.
   • Compact Design: DIN rail mountable, allowing for easy installation in standard DIN rail enclosures and control panels.
   • Noiseless Operation: Solid-state design ensures quiet operation suitable for noise-sensitive environments.
   • Built-in Protection: Some models include features like overvoltage protection and overcurrent protection to safeguard connected equipment.
3. User Interface and Monitoring:
   • LED Indicators: Provide visual status indication (e.g., on/off status), aiding in troubleshooting and monitoring.
   • Control Inputs: Accept control signals from PLCs, HMIs, or other control devices for seamless integration into automation systems.
4. Versatility and Applications:
   • Industrial Automation: Used in motor control, heating systems, lighting control, and other industrial automation applications.
   • Building Automation: Controls HVAC systems, lighting circuits, and other building infrastructure.
   • Process Control: Suitable for precise control in manufacturing processes requiring high reliability and durability.
5. Integration and Compatibility:
   • Communication Interfaces: Some models support Modbus communication protocol for integration with SCADA systems and PLCs.
   • Versatile Mounting Options: Designed for easy integration into existing control panel configurations using DIN rail mounting.
6. Safety and Reliability:
   • Long Service Life: Offers longer operational lifespan compared to mechanical relays due to absence of moving parts.
   • Durability: Built to withstand harsh industrial environments, ensuring reliable operation over extended periods.

Benefits of SSD Solid State Relays:

• Reliability: Solid-state technology ensures reliable switching without mechanical wear.
• Efficiency: Offers efficient control with high switching speeds and minimal power consumption.
• Durability: Long service life and robust construction suitable for demanding industrial environments.
• Noise Reduction: Provides quiet operation suitable for noise-sensitive environments.

The SSD Solid State DIN Rail Mount Relays are part of Schneider Electric's portfolio of solid-state relays, providing reliable and efficient solutions for AC load switching in various automation and control applications.
