The Acti 9 iEM series from Schneider Electric includes a range of DIN rail-mounted energy meters designed to measure and monitor electrical energy consumption in various settings. These meters offer solutions for both basic and advanced energy monitoring needs, making them suitable for residential, commercial, and industrial applications.

Key Features:

1. Energy Measurement: The iEM series meters measure various parameters, including active energy (kWh), reactive energy (kvarh), and other electrical parameters depending on the model.
2. DIN Rail Mounting: Designed for easy installation on standard DIN rails, these meters are compact and fit well in electrical distribution panels.
3. LCD Display: Equipped with a clear LCD display for real-time data visualization, making it easy to read and monitor energy consumption directly from the device.
4. Communication Capabilities: Depending on the model, meters can offer communication options like Modbus, BACnet, and pulse outputs for integration with energy management systems (EMS) or building management systems (BMS).
5. Accuracy: High accuracy levels (typically Class 1 or Class 0.5) ensure precise energy measurement, crucial for cost allocation and energy efficiency initiatives.
6. Multi-Tariff Options: Some models support multi-tariff configurations, allowing for energy consumption tracking based on different time-of-use rates.
7. User-Friendly Interface: Intuitive interface and easy setup process make these meters user-friendly for installers and end-users alike.
8. Compliance: Meets international standards such as IEC 62053-21/22 for energy measurement.

Popular Models and Specifications:

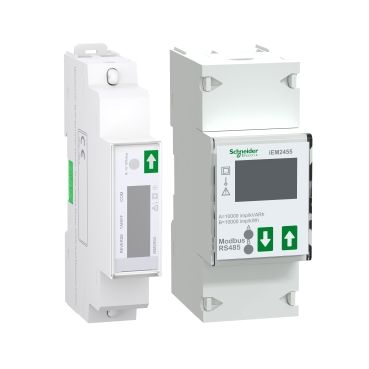

iEM2000 Series:

• iEM2000: Single-phase energy meter, direct measurement up to 63A, LCD display, Class 1 accuracy.
• iEM2010: Similar to iEM2000 but with pulse output for integration with EMS/BMS.

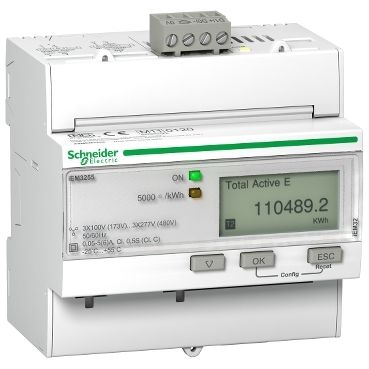

iEM3000 Series:

• iEM3100: Three-phase energy meter, measures active energy (kWh), suitable for basic energy monitoring.
• iEM3110: Three-phase energy meter with Modbus communication, measures active and reactive energy.
• iEM3115: Advanced version with digital inputs/outputs for additional control and monitoring capabilities.
• iEM3155: High-end model with multi-tariff capabilities, comprehensive energy measurement including active, reactive, and apparent energy, with Modbus communication.

Applications:

1. Residential: Monitoring and managing energy consumption in homes, apartments, and residential complexes.
2. Commercial: Energy usage tracking in office buildings, retail spaces, and other commercial establishments to improve energy efficiency and manage costs.
3. Industrial: Measuring energy consumption in factories, warehouses, and industrial facilities to optimize energy usage and support operational efficiency.
4. Sub-Metering: Used in multi-tenant buildings to measure individual tenant energy consumption, enabling accurate billing and energy management.

Installation and Usage:

• Installation: These meters are designed for quick and easy installation on DIN rails within electrical distribution panels. Following the manufacturer's installation guide ensures proper setup and operation.
• Wiring: Correct wiring is essential for accurate measurements. This includes proper connection to the voltage supply and current transformers if applicable.
• Configuration: Models with communication capabilities may require configuration to integrate with existing EMS/BMS. The setup process is typically guided by user manuals provided by Schneider Electric.

Compliance and Standards:

• Standards: Compliance with international standards such as IEC 62053-21 (for active energy meters) and IEC 62053-22 (for higher accuracy meters).
• Certification: Ensures the meters meet regulatory requirements for safety and performance in various regions.

For detailed technical specifications, wiring diagrams, and installation instructions, referring to the product datasheets and user manuals from Schneider Electric is recommended. These documents provide comprehensive details to support the correct installation and operation of the Acti 9 iEM series energy meters.
