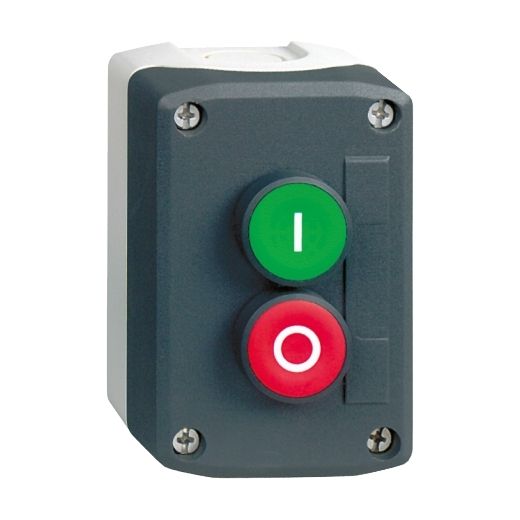

Schneider Electric’s Harmony XAL series control stations are designed to provide robust, reliable, and user-friendly solutions for a wide range of industrial control applications. These control stations are suitable for start/stop operations, emergency stops, and other control functions in various environments.

Harmony XAL Control Stations Overview

Key Series

1. Harmony XALG
   • Design: Robust enclosure available in both metal and plastic.
   • Applications: Suitable for heavy-duty industrial environments.
   • Features:
     • Accommodates up to five control and signaling units.
     • High resistance to impact, dust, and water (IP66 rating).
     • Easy to install and maintain.
     • Available with various types of actuators including pushbuttons, switches, and pilot lights.
2. Harmony XALD
   • Design: Compact plastic enclosure.
   • Applications: General-purpose control stations for light to medium-duty applications.
   • Features:
     • Accommodates up to five control and signaling units.
     • IP65-rated for protection against dust and water.
     • Modular and flexible design.
     • Quick and easy installation with pre-wired options available.

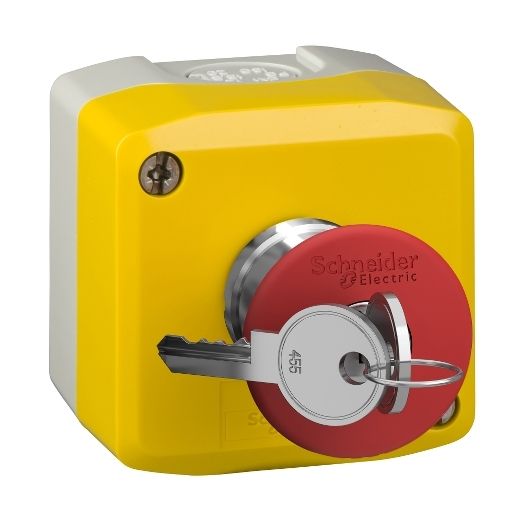

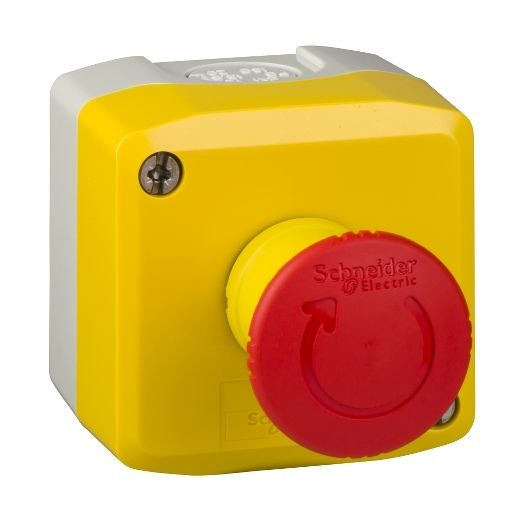

3. Harmony XALK
   • Design: Plastic or metal enclosure specifically for emergency stop functions.
   • Applications: Safety-critical applications requiring reliable emergency stop capabilities.
   • Features:
     • Prominent, high-visibility emergency stop button.
     • IP66-rated for harsh environments.
     • Compliant with international safety standards.
     • Available in various configurations to meet specific safety requirements.

Key Features and Benefits

• Modularity and Customizability: The Harmony XAL control stations are highly modular, allowing for easy customization to meet specific application needs. Various types of actuators can be combined in a single station.
• Durability and Robustness: Designed to withstand tough industrial environments, these control stations offer high resistance to mechanical impacts, dust, and water.
• Ease of Installation and Maintenance: Pre-wired options and modular components simplify the installation and maintenance processes, reducing downtime and operational costs.
• Ergonomic and User-Friendly Design: Intuitive layout and clear labeling make the control stations easy to use, enhancing operator efficiency and reducing the likelihood of errors.
• Safety Compliance: Designed to meet international safety standards, ensuring reliable operation in critical applications, particularly for emergency stop functions.

Applications

• Industrial Automation: Control panels for machinery and processes in manufacturing plants and industrial facilities.
• Building Automation: Access control, lighting control, and HVAC systems in commercial buildings.
• Material Handling: Control stations for conveyor systems, hoists, and other material handling equipment.
• Energy and Utilities: Control systems in power generation, distribution, and renewable energy installations.
• Safety Applications: Emergency stop stations for machinery and process control systems to ensure operator safety.

Specific Models and Configurations

1. Harmony XALG Series: Ideal for heavy-duty applications where durability and robustness are essential. Suitable for both indoor and outdoor use.
2. Harmony XALD Series: Compact and versatile, suitable for a wide range of general-purpose control applications. Easy to install and configure.
3. Harmony XALK Series: Dedicated to emergency stop functions, providing reliable safety solutions for critical applications.

Conclusion

Schneider Electric’s Harmony XAL series control stations offer a versatile, durable, and user-friendly solution for various industrial and commercial control applications. Their modular design, robust construction, and ease of use make them an excellent choice for enhancing control and safety in diverse environments.
