The Telemecanique XZCC series connectors are designed for industrial applications requiring reliable and robust connections for sensors and automation equipment. These connectors offer a range of features that ensure durability, ease of use, and compatibility with various industrial devices.

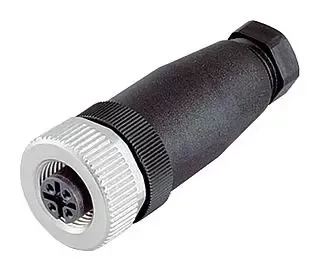

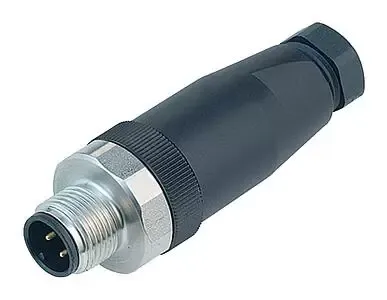

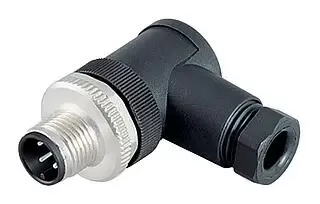

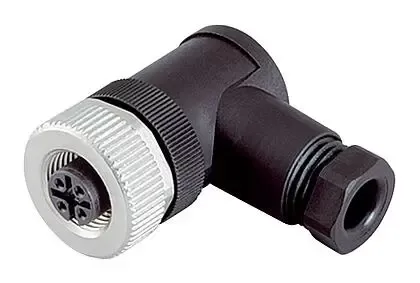

Telemecanique XZCC Series Connectors

Key Features:

1. Durable Construction:
   • Built with high-quality materials to withstand harsh industrial environments.
   • Designed for long-term reliability and performance.
2. Versatile Connector Types:
   • Available in different connector types, including M8, M12, and other standard industrial connectors.
   • Suitable for various applications and devices.
3. High Environmental Protection:
   • Typically rated with high ingress protection levels, such as IP65, IP67, or higher.
   • Resistant to dust, water, and other environmental contaminants, making them suitable for tough conditions.
4. Multiple Pin Configurations:
   • Offered in various pin configurations to meet different application needs, such as 3-pin, 4-pin, 5-pin, and more.
   • Ensures compatibility with a wide range of sensors and devices.
5. Easy Installation:
   • Designed for quick and easy connection and disconnection.
   • Secure locking mechanisms ensure stable and reliable connections.

Common Applications:

• Industrial Automation: Connecting sensors, actuators, and other devices in automated systems.
• Machine Tools: Providing reliable connections in CNC machines, presses, and other machinery.
• Robotics: Ensuring secure and flexible connections in robotic systems.
• Conveyor Systems: Facilitating connections in material handling and conveyor systems.
• Packaging Equipment: Used in packaging machines for reliable sensor connections.

Technical Specifications:

• Connector Types: Includes M8, M12, and other standard connectors.
• Pin Configurations: Available in various configurations, such as 3-pin, 4-pin, 5-pin.
• Ingress Protection: High IP ratings (e.g., IP65, IP67) for protection against dust and water.
• Operating Temperature Range: Suitable for a wide range of operating temperatures to ensure reliability in different environmental conditions.

Installation and Maintenance:

• Easy Installation: Designed for quick and straightforward installation with secure locking mechanisms.
• Secure Connections: Ensure all connections are securely tightened to maintain reliable operation.
• Maintenance: Minimal maintenance required due to robust design. Regular inspection of connections can ensure continued reliability.

Selection Guide:

When selecting a specific XZCC connector model, consider the following:

• Connector Type: Choose the appropriate connector type (e.g., M8, M12) based on your device’s requirements.
• Pin Configuration: Ensure the pin configuration matches the device’s connection requirements (e.g., 3-pin, 4-pin).
• Environmental Protection: Choose a model with the appropriate IP rating for the environmental conditions in which it will be used.
• Compatibility: Verify that the connector is compatible with the specific sensors or devices being used.

For detailed technical data, application notes, and installation instructions, refer to Telemecanique Sensors' official documentation and datasheets specific to the XZCC series. These resources provide comprehensive information to ensure the correct selection and application of the connectors.
