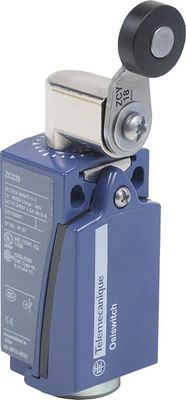

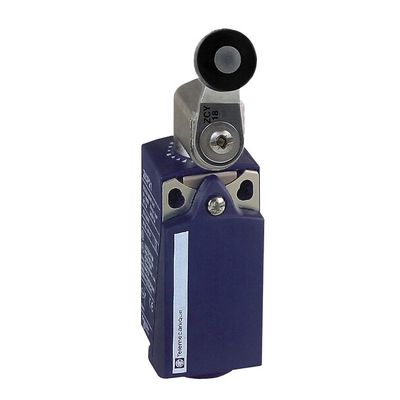

The Telemecanique Sensors XCKD series is a range of limit switches designed for industrial applications. These limit switches are used to detect the presence, position, or end travel of an object, ensuring safe and reliable operation of machinery and equipment.

Key Features and Benefits:

1. Robust Construction: Designed to withstand harsh industrial environments, including high temperatures, moisture, dust, and vibrations.
2. Versatility: Suitable for a wide range of applications, including conveyor systems, automated machinery, packaging equipment, and safety interlocks.
3. Ease of Installation: Designed for easy mounting and wiring, with various actuator heads and operating levers to fit different application needs.
4. High Precision: Provides accurate and reliable position detection, ensuring precise control of machinery and equipment.
5. Compliance: Meets international standards for industrial safety and reliability, ensuring compliance with various regulatory requirements.

Applications:

• Conveyor Systems: Detects the position and movement of items on conveyor belts.
• Automated Machinery: Ensures the correct positioning of moving parts in manufacturing and processing equipment.
• Packaging Equipment: Monitors the alignment and positioning of packaging materials and products.
• Safety Interlocks: Provides safety interlock functions to prevent accidents and ensure safe operation of machinery.

Technical Specifications:

• Housing Material: Typically available in metal or high-strength plastic to suit different environmental conditions.
• Environmental Resistance: Designed to operate in extreme conditions with high resistance to temperature variations, moisture, and contaminants.
• Actuator Types: Available with various actuator types, including plunger, roller lever, and adjustable rod, to accommodate different application needs.
• Contact Configurations: Offers multiple contact configurations, including normally open (NO) and normally closed (NC) contacts, to suit different control requirements.
• Electrical Ratings: Suitable for various voltage and current ratings, ensuring compatibility with different control systems.

Example Models:

1. XCKD2118P16: A common model in the XCKD series, featuring a plunger actuator and a robust metal housing.
2. XCKD2106G11: Another popular model, equipped with a roller lever actuator and designed for high-precision applications.

Integration and Usage:

• Installation: Mount the limit switch securely in the desired location, ensuring proper alignment with the moving part to be detected.
• Wiring: Connect the switch to the control system following the wiring diagram provided in the product documentation. Ensure compatibility with the control system's input specifications.
• Adjustment: Adjust the actuator and operating lever as needed to achieve the desired detection range and sensitivity.
• Maintenance: Regularly inspect the limit switch for signs of wear or damage, and clean the actuator and housing to ensure optimal performance.

For detailed specifications, installation guides, and product datasheets, refer to the official Telemecanique Sensors documentation or contact their technical support team for assistance.
