The Telemecanique XCKN series limit switches are designed for industrial applications requiring precision and durability. They are part of the broader range of Telemecanique Sensors products, known for their reliability and robust performance.

Telemecanique XCKN Series Limit Switches

Key Features:

1. Compact and Modular Design:
   • The XCKN series features a modular design that allows for easy customization and integration into various applications.
   • Compact size makes them suitable for installations where space is limited.
2. Wide Range of Actuators:

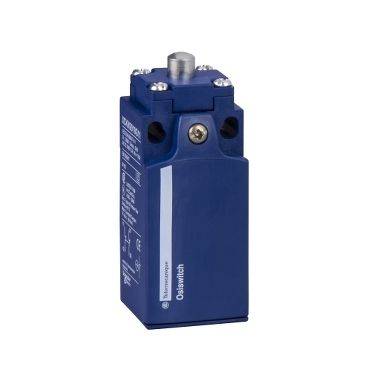

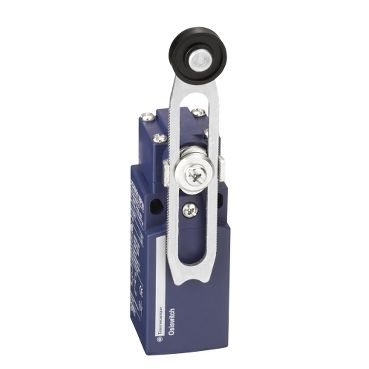

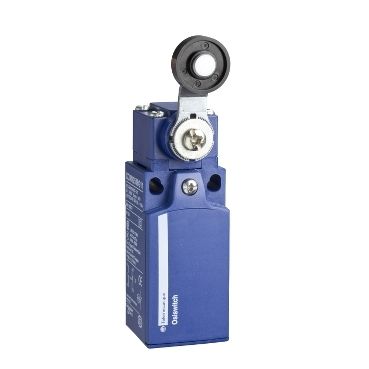

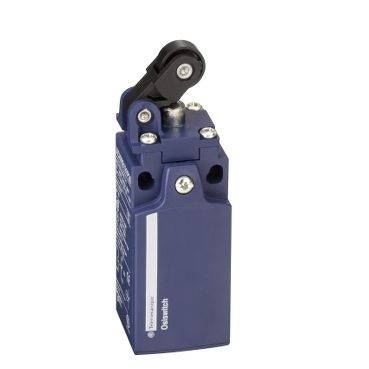

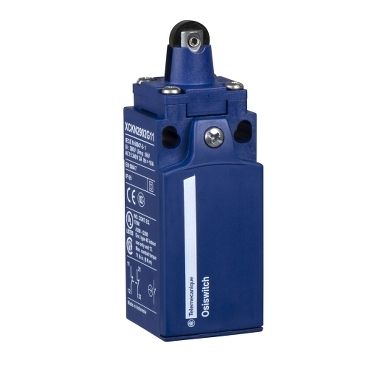

   • Available with different actuator types such as plunger, roller lever, and adjustable rod lever.
   • This variety ensures that there is a suitable option for different mechanical movements and operational requirements.
3. Durability and Robust Construction:
   • Built to withstand harsh industrial environments with durable materials.
   • High mechanical endurance for long-term use.
4. High Environmental Protection:
   • Typically rated with high ingress protection levels, such as IP66 or IP67, making them resistant to dust and water.
   • Suitable for use in challenging environments including those with high humidity or exposure to contaminants.
5. Electrical Specifications:
   • Support various electrical ratings to match different industrial control systems.
   • Compatible with standard industrial voltages and currents, both AC and DC.

Common Applications:

• Position Sensing: Detecting the presence or absence of objects in various machinery and systems.
• Safety Interlocks: Ensuring safe operation of machinery by detecting the position of guards or gates.
• Process Control: Monitoring and controlling automated processes in manufacturing environments.
• End of Travel Detection: Ensuring machinery parts stop at predefined positions.

Technical Specifications:

• Mechanical Durability: Designed for a high number of mechanical operations, often rated in millions of cycles.
• Electrical Ratings: Suitable for a range of voltages (e.g., 24V, 120V, 240V) and currents.
• Operating Temperature Range: Wide range to accommodate different environmental conditions.

Installation and Maintenance:

• Mounting: Designed for easy installation with multiple mounting options to suit different setups.
• Wiring: Typically features screw terminals or plug-in connectors for straightforward electrical connections.
• Maintenance: Low maintenance due to high durability and robust construction. Regular inspections and cleaning ensure continued reliable operation.

Selection Guide:

When selecting a specific XCKN limit switch model, consider the following:

• Actuator Type: Match the actuator type with the required mechanical movement (linear, rotary, etc.).
• Electrical Requirements: Ensure the switch's voltage and current ratings are compatible with your system.
• Environmental Conditions: Choose a model with appropriate ingress protection and temperature ratings for your application.
• Mechanical Fit: Ensure the dimensions and mounting options fit your installation needs.

For detailed technical data, application notes, and installation instructions, refer to Telemecanique Sensors' official documentation and datasheets specific to the XCKN series. These resources provide comprehensive information to ensure correct selection and application of the limit switches.
