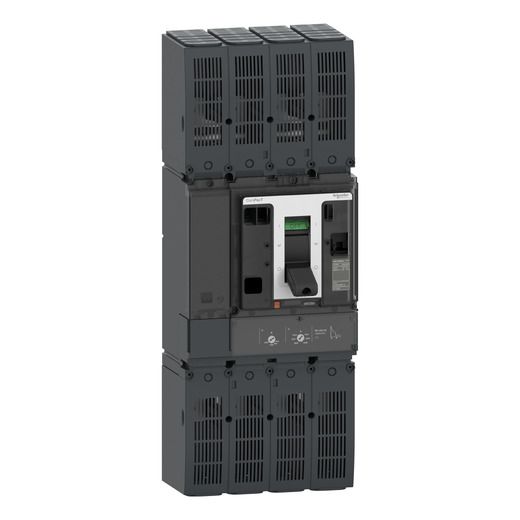

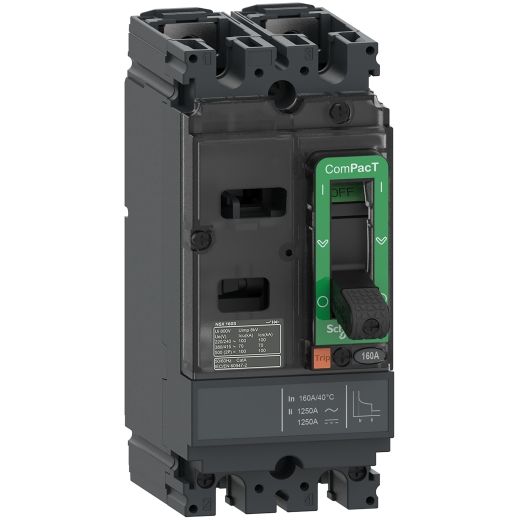

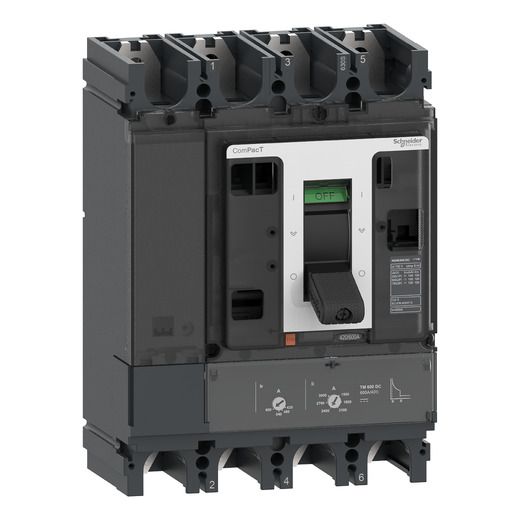

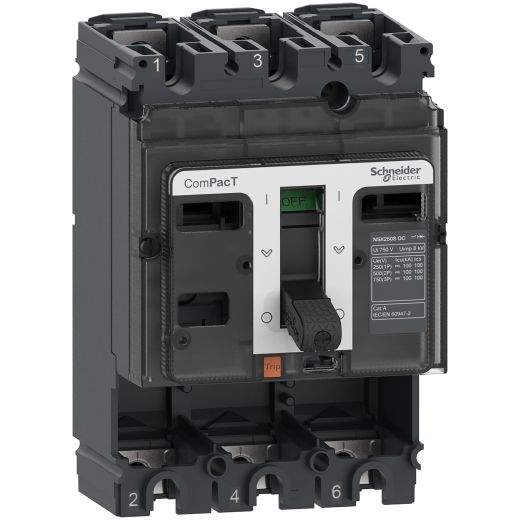

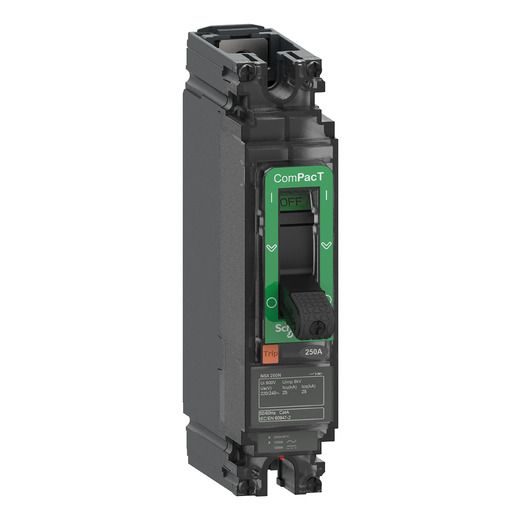

ComPacT NSX DC
The new generation of ComPacT NSX DC circuit-breakers is designed specifically to protect DC networks, with capabilities of handling up to 630 amps. These breakers offer enhanced protection, reliability, and efficiency for a variety of DC applications. Here are the key features and specifications:
Key Features
- High Breaking Capacity:
- Provides robust protection for DC circuits with high breaking capacity.
- Ensures reliable operation even under challenging conditions.
- Wide Range of Current Ratings:
- Available in ratings up to 630 amps, suitable for a wide variety of applications.
- Advanced Protection Features:
- Short-circuit protection
- Overload protection
- Insulation monitoring
- Compact and Modular Design:
- Space-saving design allows for easy integration into existing systems.
- Modular components for flexible installation and future upgrades.
- Enhanced Connectivity:
- Designed for integration into smart power distribution systems.
- Supports remote monitoring and control through communication modules.
- Ease of Installation and Maintenance:
- User-friendly design for straightforward installation and maintenance.
- Clear labeling and accessible terminals for easy wiring and configuration.
Technical Specifications
- Rated Current: Up to 630 A
- Rated Operational Voltage: Typically up to 750 V DC
- Breaking Capacity: Varies by model, designed to handle high fault currents
- Number of Poles: Available in various configurations to match application needs

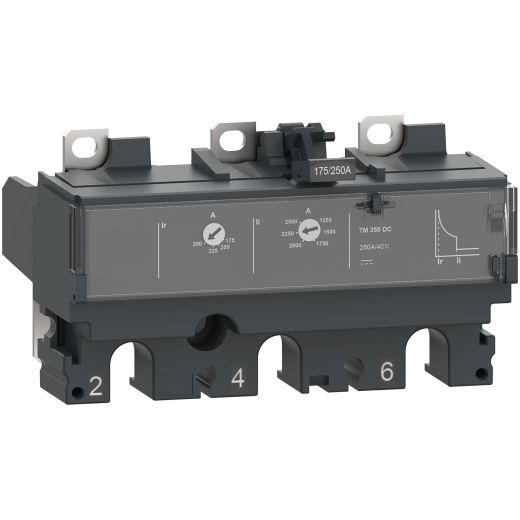

- Protection Functions: Includes advanced electronic protection units for precise and reliable operation
- Standards Compliance: Meets relevant international standards for DC circuit protection
Applications
- Renewable Energy: Solar power plants, wind farms, and other renewable energy installations.
- Data Centers: Protecting critical power infrastructure in data centers.
- Transportation: Electric vehicle charging stations, railway systems, and other DC-powered transportation networks.
- Industrial: DC distribution in industrial automation and process control systems.
Advantages
- Safety and Reliability: Ensures the safety of personnel and equipment by providing reliable protection against electrical faults.
- Energy Efficiency: Optimized for energy efficiency, reducing losses and improving overall system performance.
- Scalability: Suitable for small to large-scale applications, offering scalability as needs grow.
