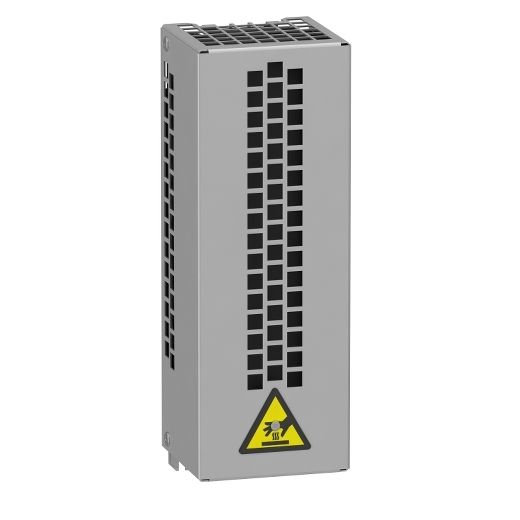

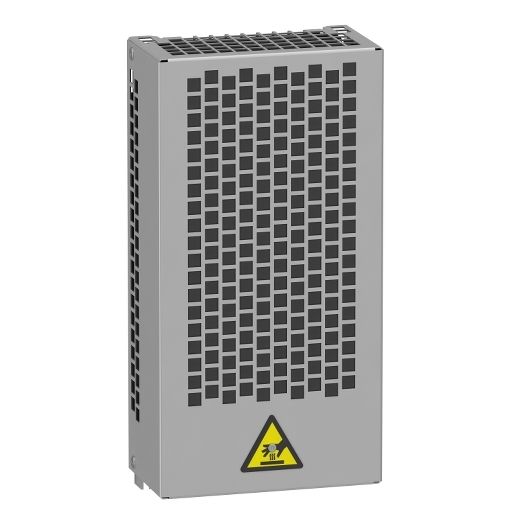

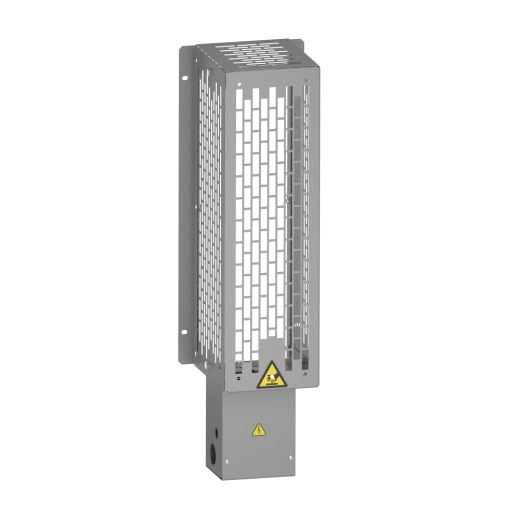

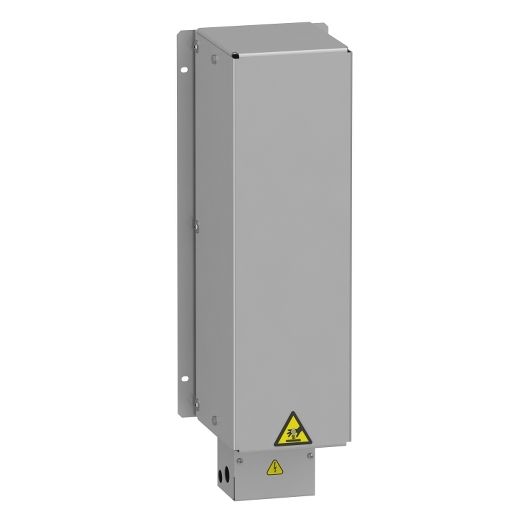

Schneider Electric braking resistors are essential components in motor control systems, particularly in applications involving variable speed drives (VSDs) and servo drives. Braking resistors are used to dissipate the excess energy generated during the braking process, helping to decelerate the motor safely and efficiently. Here are some key aspects and benefits of Schneider Electric braking resistors:

Key Aspects

1. Energy Dissipation: Braking resistors absorb and dissipate the kinetic energy from the motor, preventing overheating and protecting the drive system.
2. Compatibility: Designed to be compatible with Schneider Electric's range of variable speed drives and servo drives.
3. Performance: Ensure consistent and reliable braking performance across various applications.
4. Safety: Enhance the safety of the braking process by managing energy dissipation effectively.
5. Durability: Built to withstand harsh industrial environments, offering long service life and reliable operation.

Benefits

1. Enhanced Motor Control: Improve the braking performance of motors, leading to better control and precision in applications.
2. Protection of Drive Components: Prevent overheating and potential damage to drive components, extending their lifespan.
3. Energy Efficiency: Enable efficient energy management by dissipating excess energy, reducing the risk of energy wastage.
4. Versatility: Suitable for a wide range of applications, including conveyors, cranes, elevators, and other machinery requiring controlled braking.

Applications

• Conveyors: Ensure smooth and controlled stopping of conveyor belts, preventing damage to transported goods.
• Cranes and Hoists: Provide precise control during lifting and lowering operations, enhancing safety.
• Elevators: Ensure safe and reliable braking, improving passenger comfort and safety.
• Industrial Machinery: Enhance the performance and safety of various industrial machines requiring controlled deceleration.

Schneider Electric's braking resistors are a critical component for improving the efficiency, safety, and reliability of motor control systems. Their integration into VSDs and servo drives ensures optimal performance in diverse industrial applications.
