Key Features

1. Material: Made from high-quality aluminium, providing excellent durability and resistance to corrosion.
2. Protection Rating: Typically rated at IP66 or higher, offering strong protection against dust and water ingress.
3. Temperature Range: Suitable for a wide range of operating temperatures, making them ideal for harsh environments.
4. Mounting Options: Flexible mounting options, including wall mounting and DIN rail mounting, to accommodate various installation requirements.
5. Customization: Options for customization, including machining, custom finishes, and special coatings to meet specific application needs.
6. EMC Protection: Provides electromagnetic compatibility (EMC) shielding to protect sensitive electronic components from electromagnetic interference (EMI).
7. Design: Robust and compact design, suitable for both indoor and outdoor applications.
8. Accessories: Availability of various accessories such as mounting plates, hinges, locks, and seals to enhance functionality and security.

Specifications

1. Material: Aluminium (often powder-coated for additional protection)
2. Protection Class: IP66 / IP67 (depending on the model)
3. Temperature Range: Typically -40°C to +80°C
4. Sizes: Available in various sizes to accommodate different application requirements
5. Impact Resistance: High impact resistance, often rated at IK08 or higher
6. Finishes: Standard finishes include natural aluminium, powder-coated, or painted finishes for enhanced corrosion resistance

Applications

• Industrial Automation
• Electrical and Electronic Controls
• Telecommunications
• Marine and Offshore
• Renewable Energy Systems
• Transportation and Automotive

Example Models

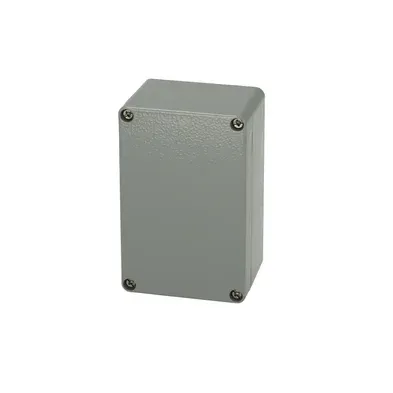

1. Fibox ALN-110
   • Dimensions: 110 x 110 x 66 mm
   • Protection Class: IP66
   • Material: Aluminium
2. Fibox ALN-161
   • Dimensions: 160 x 160 x 90 mm
   • Protection Class: IP66
   • Material: Aluminium

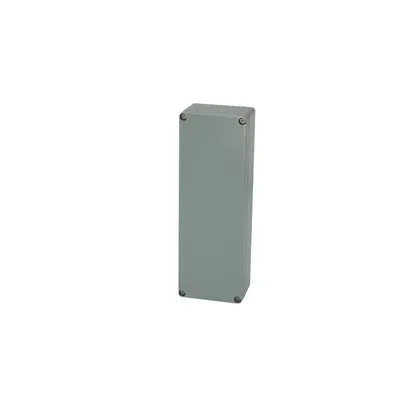

3. Fibox ALN-241
   • Dimensions: 240 x 160 x 90 mm
   • Protection Class: IP66
   • Material: Aluminium
