Schneider Electric NSYTR 3-Layer Terminal Blocks:

1. Triple-Level Design:
   • Functionality: NSYTR 3-layer terminal blocks feature three levels of terminals stacked vertically within a single housing.
   • Advantages: Maximize panel space utilization by accommodating multiple connections in a compact layout.
2. Key Features:
   • Modular Construction: Available in modular configurations for flexibility in wiring arrangements and scalability.
   • Terminal Types: Offered with screw clamp or spring clamp terminals to suit different wiring preferences and application needs.
   • Durable Build: Designed with robust materials to endure harsh industrial conditions, ensuring long-term reliability.
3. Benefits:
   • Space Optimization: Efficient use of panel space by vertically stacking terminals, ideal for applications with high wiring density.
   • Versatility: Support a wide range of wire sizes and types (solid, stranded, and fine-stranded), accommodating various voltage and current ratings.
   • Ease of Installation: Facilitate organized and accessible wiring setups, enhancing system reliability and ease of maintenance.
4. Applications:
   • Industrial Automation: Used in control panels, machinery, and switchgear to connect sensors, actuators, and control devices.
   • Building Automation: Deployed in HVAC systems, lighting controls, and security systems for reliable electrical connections.
   • Power Distribution: Applied in power distribution panels and switchboards for efficient wiring and distribution of electrical power.

Product Range:

Schneider Electric offers a variety of NSYTR 3-layer terminal blocks, including:

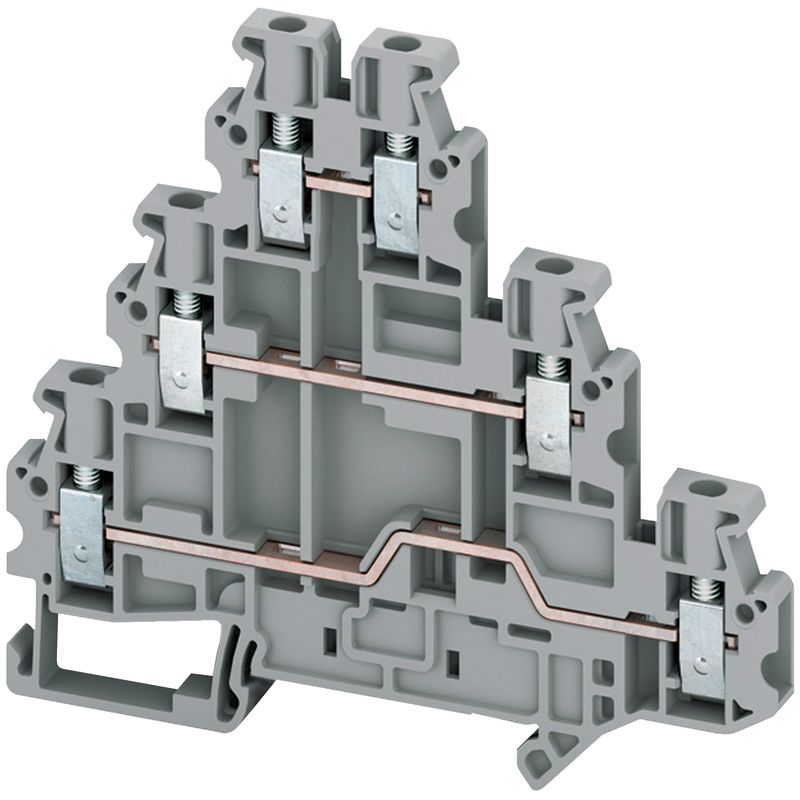

• NSYTR Triple-Level Screw Terminal Blocks: Featuring screw terminals for secure and reliable wire connections across three levels.

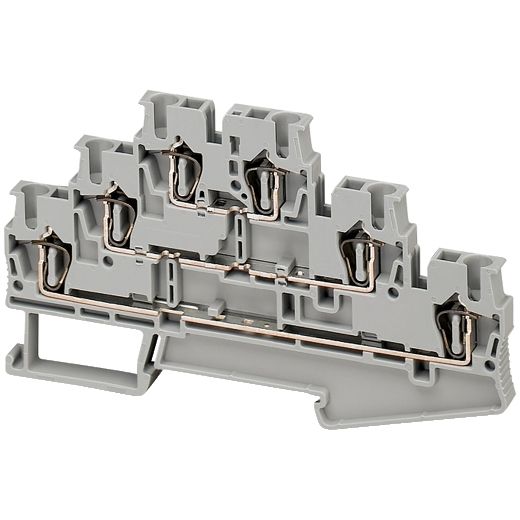

• NSYTR Triple-Level Spring Terminal Blocks: Utilizing spring-loaded terminals for quick and tool-free wiring installations in a compact design.

These terminal blocks adhere to international standards for electrical safety and performance, providing robust solutions for complex wiring configurations in diverse industrial applications.

If you have specific questions or need further details about NSYTR 3-layer terminal blocks or their application in a particular context, feel free to ask!
