1 phase Voltage Relay

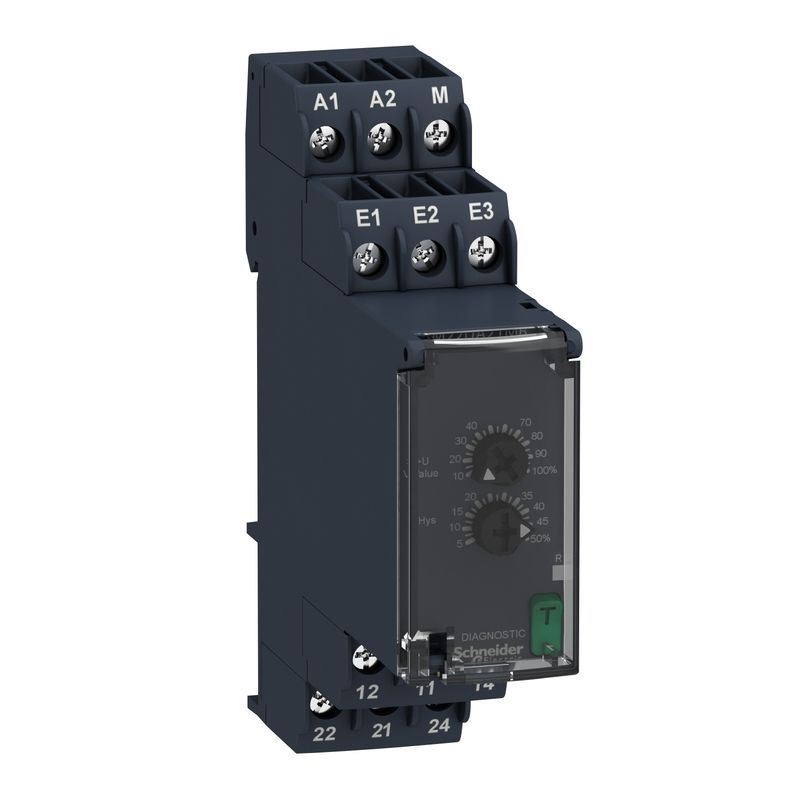

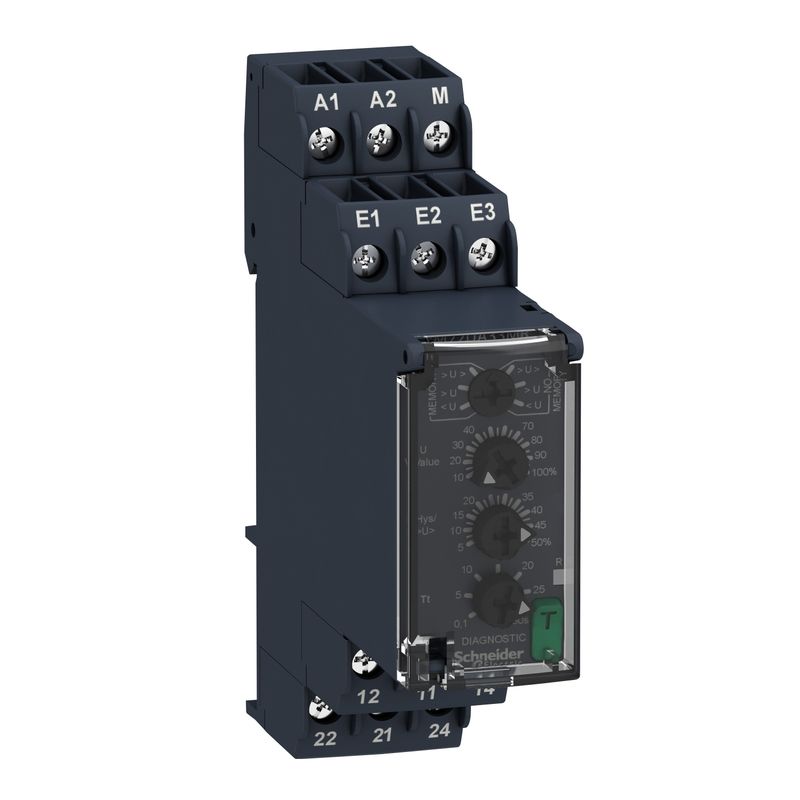

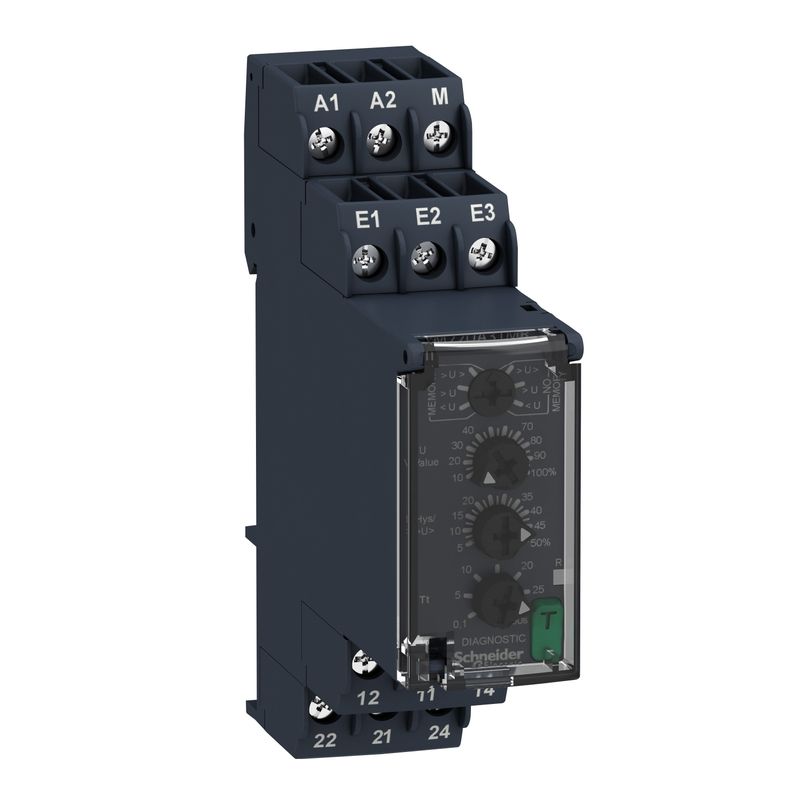

The Schneider Electric RM22 1-phase voltage relay, part of the Zelio Control range, is designed for monitoring and controlling single-phase voltage levels. These relays are essential for ensuring that single-phase systems operate within safe voltage limits, protecting equipment from damage due to over-voltage or under-voltage conditions.
Key Features
- Single-Phase Voltage Monitoring: Specifically designed to monitor single-phase AC or DC voltages.
- Adjustable Thresholds: Allows for precise control with adjustable voltage thresholds and time delays.
- Compact Design: Space-saving design suitable for various installations.
- LED Indicators: Equipped with LED indicators for easy status monitoring and troubleshooting.
- DIN Rail Mounting: Facilitates quick and easy installation on a DIN rail.
Example Model: RM22UA33
- Voltage Range: 24 to 240V AC/DC
- Output: 1 C/O (changeover) contact
- Time Delay: Adjustable from 0.1 to 30 seconds for both over-voltage and under-voltage
- Mounting: DIN rail
- Dimensions: Compact design suitable for various installations
Applications
- Industrial Automation: Protects industrial equipment and machinery from voltage fluctuations.
- Building Automation: Ensures stable voltage supply for critical building systems such as lighting, HVAC, and security systems.
- Renewable Energy Systems: Monitors and protects components in solar and wind power systems from voltage irregularities.
- Electrical Distribution: Helps maintain the stability and reliability of single-phase electrical distribution systems.
Benefits
- Enhanced Protection: Prevents damage to equipment caused by voltage irregularities.
- Improved Reliability: Ensures continuous and reliable operation of single-phase systems.
- User-Friendly: Easy installation, setup, and monitoring with clear LED indicators and adjustable settings.
- Versatile Applications: Suitable for a wide range of applications across various industries.
Additional Features
- Wide Range of Voltage Monitoring: Designed to monitor a broad range of single-phase AC and DC voltages.
- Multi-functionality: Capable of both over-voltage and under-voltage monitoring.
- High Accuracy: Provides precise monitoring and control to protect sensitive equipment.
- Safety Compliance: Meets international standards for safety and reliability.
The Schneider Electric RM22 1-phase voltage relay is a reliable and versatile solution for monitoring and protecting single-phase systems, ensuring safe and efficient operation across various applications.
